3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface

  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
  • 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX0345S001
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology Transflective TFT LCD Name TFT LCD MODULE
Size 3.45" Resolution 480*640
Driving IC ST7701S View Angle ALL 0' Clock
Interface MIPI
Highlight

3.45" Bar TFT LCD Module

,

480X640 Resolution TFT LCD Display Module

,

MIPI Interface TFT Display Module
Leave a Message
Product Description

3.45" Bar TFT LCD Module,480X640 Resolution, MIPI Interface, Driving IC ST7701S,ALL o'clock ,Transflective
Product Specifications
Part NO. HX0345S001
Display Technology Transflective TFT LCD
Diagonal Screen Size 3.45inch
Active Area (mm) 51.84(H)X69.12(V)
Panel size(mm) 55.44(H)X78.89(V)X2.05(T)
Brightness(cd/m2) 120
Resolution 480*640
Interface MIPI
View angle  ALL o'clock
Driving IC  ST7701S

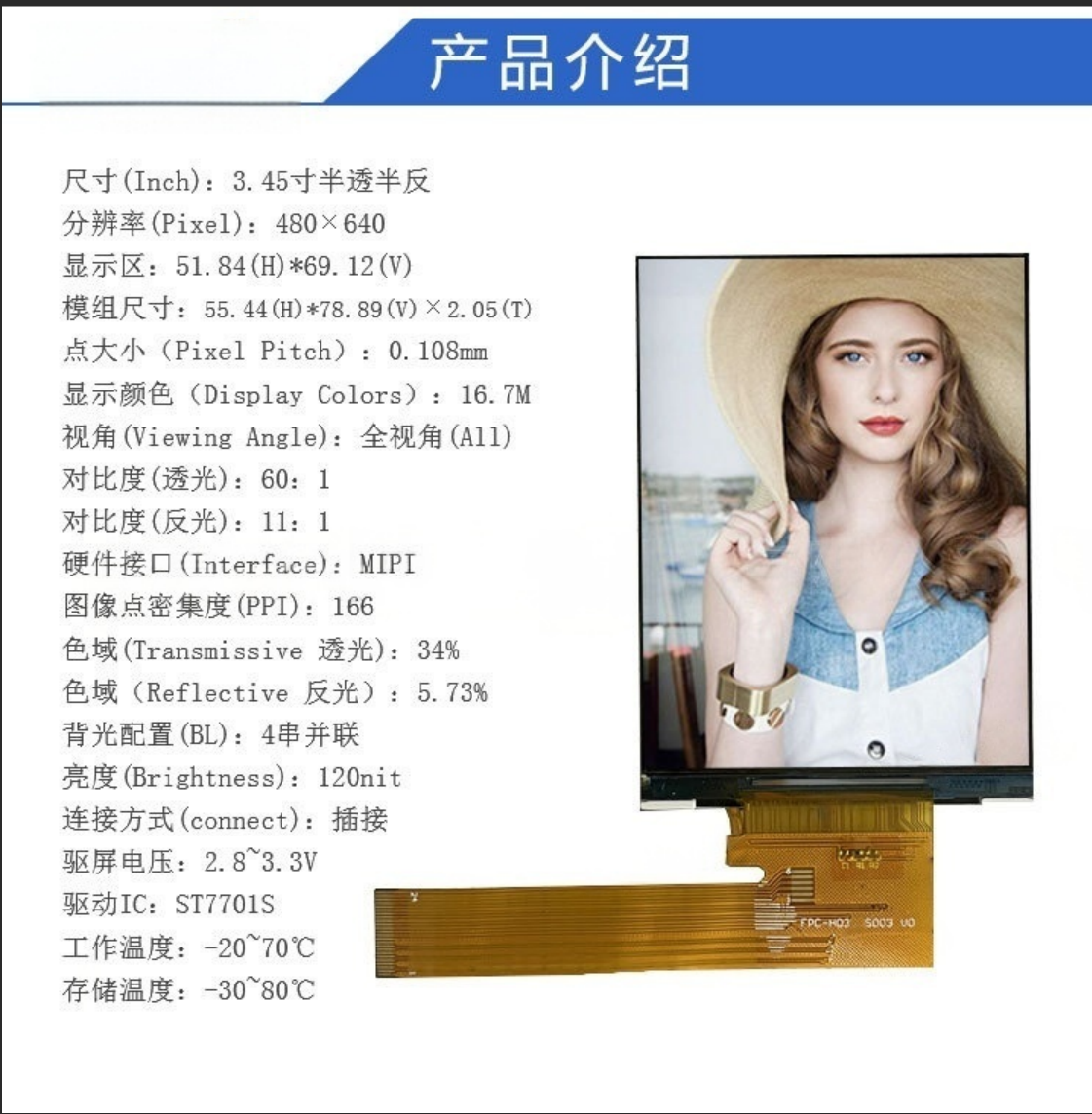

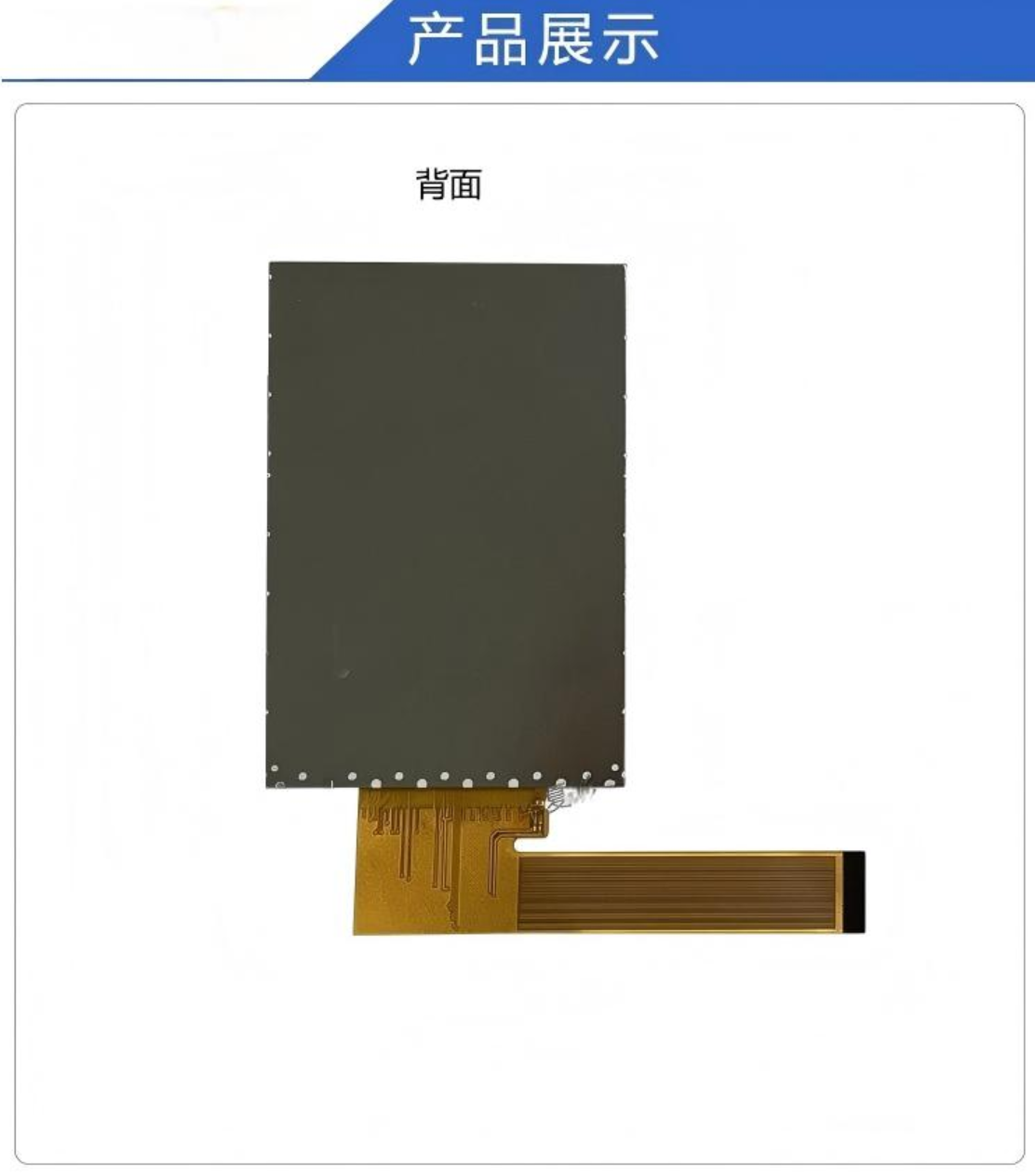

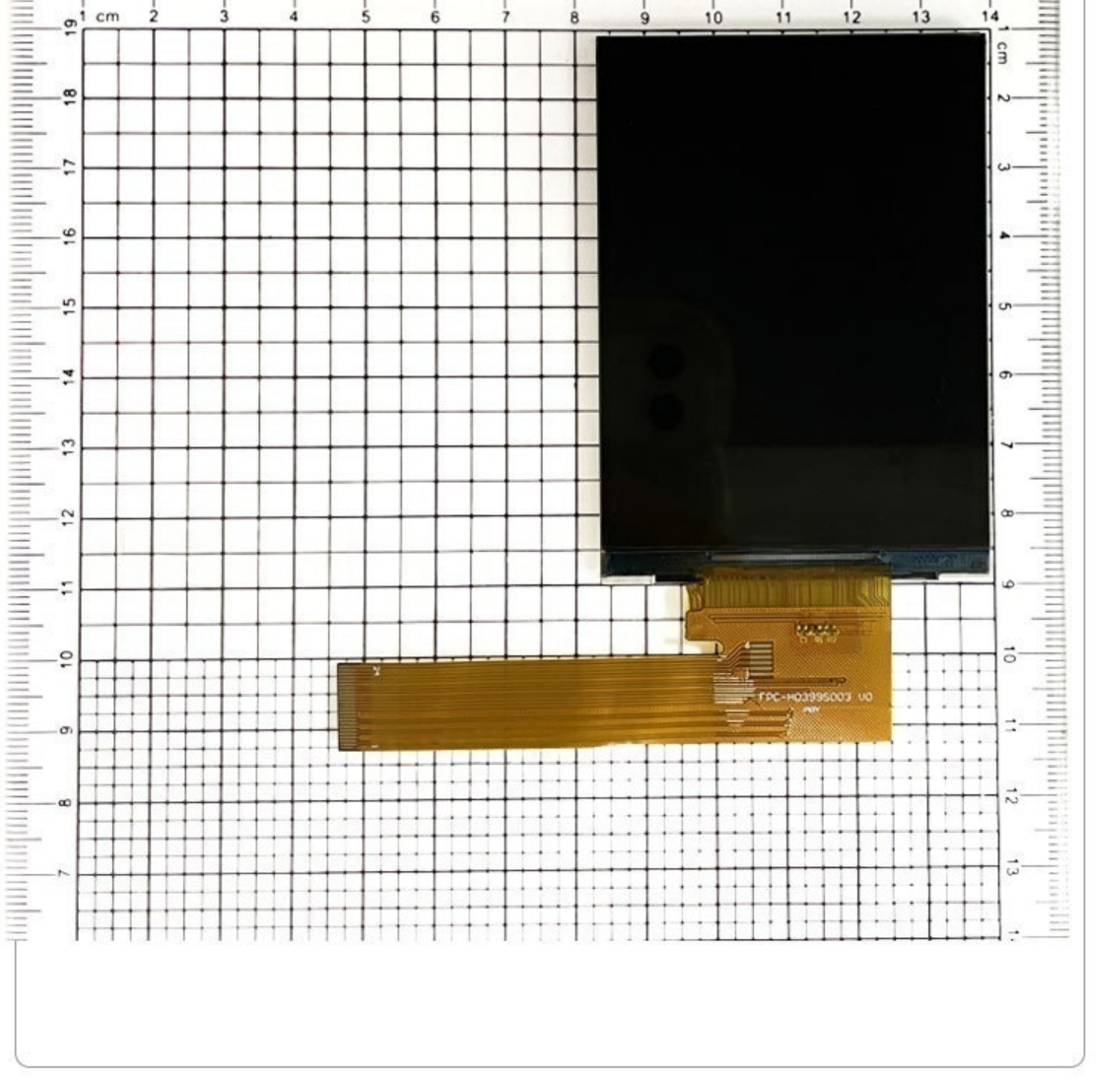

Product Picture

3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 0
 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 13.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 23.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 33.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 4

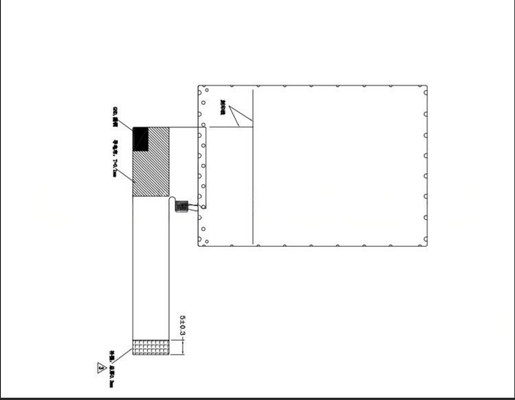

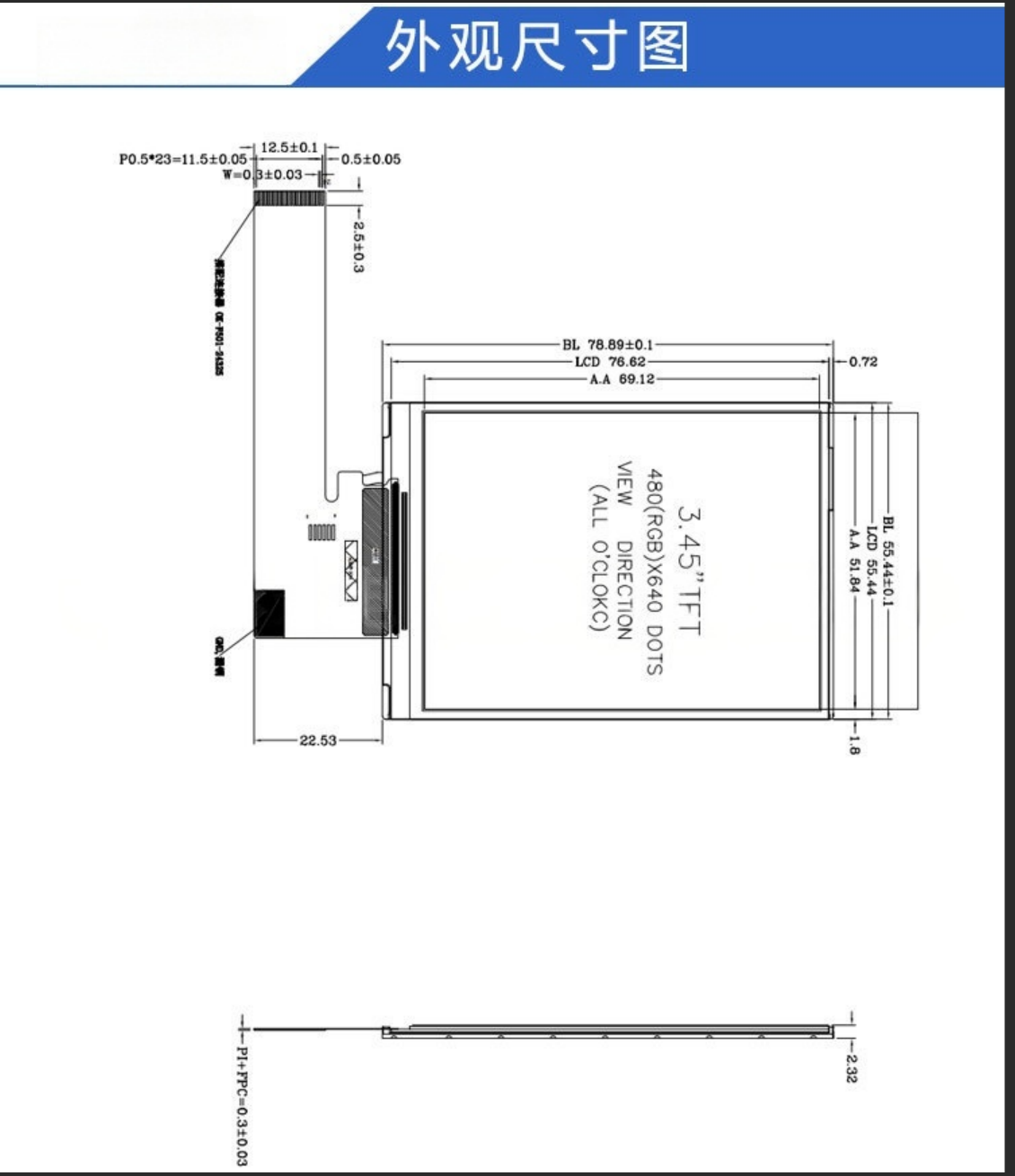

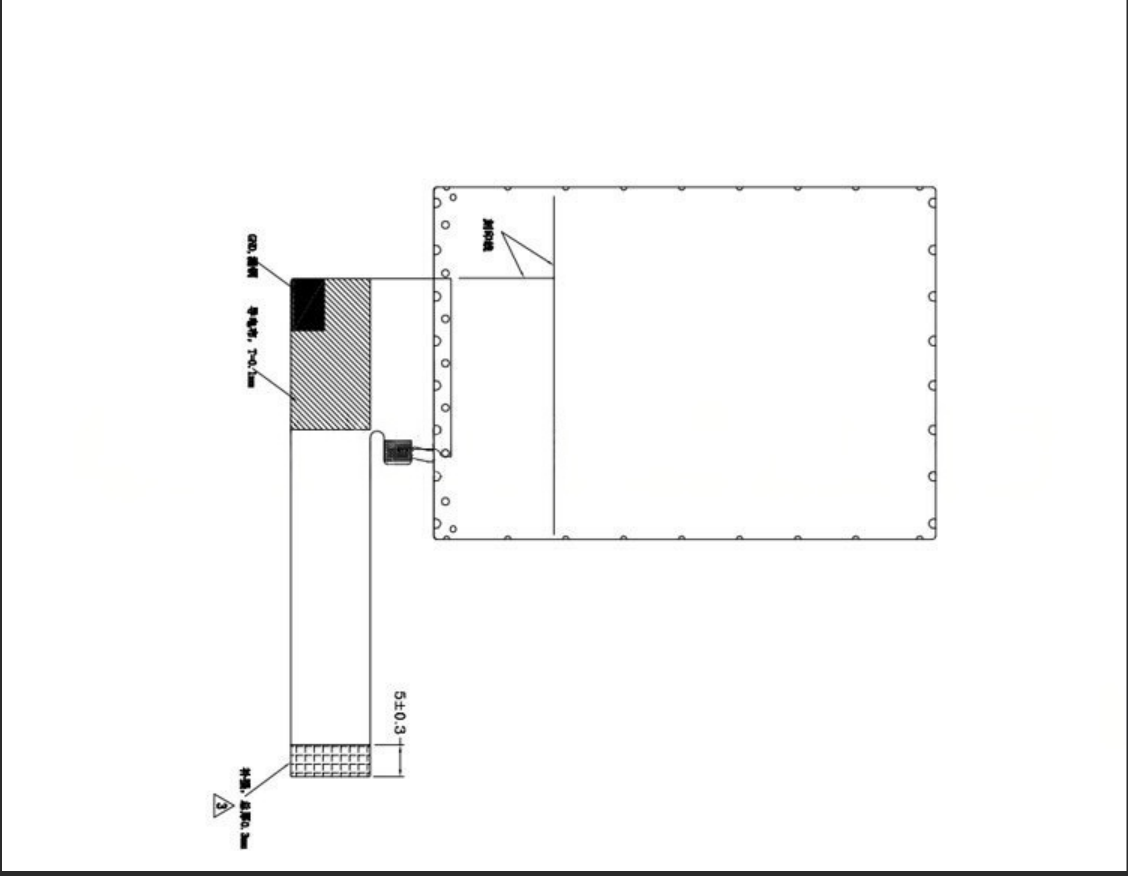

Technical Drawing

 3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 53.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface 6



TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
