2.7 Inch Bar Type Display 240X960 Resolution 40 Pins MCU SPI+RGB 260c/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX270RGN13A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Display Module Name 2.7 Inch TFT
Size 2.7 " Resolution 240x960
Brightness 260 Cd/m2 Interface 40 PINS MCU,SPI+RGB
Drive IC ILI8961 View Angle Free View Angle
High Light

2.7 inch bar type display

,

bar type display 240X960

,

40pin spi lcd display

Leave a Message
Product Description

ESHX270RGN13A  is 2.7  inch Bar Type TFT display module , 240X960 Resolution, 40 PINS MCU,SPI+RGB  interface, brightness is 260cd/m2 TFT lcd, Module Driver IC is ILI8961   and view angle is free



A:Product Parameter

ITEM specification
Model Number ESHX270RGN13A
size 2.7 inch TFT
LCD Type IPS
Number of pixels 240x960
Active area 32.88X58.56MM
OutlineSize(W*H*T) 39.1x67.5x2.4mm
Viewing direction free view angle
LCM Driver IC ILI8961
LCM interface MCU,SPI+RGB
PIN number 40 pins
LED number 6pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance 260c/d

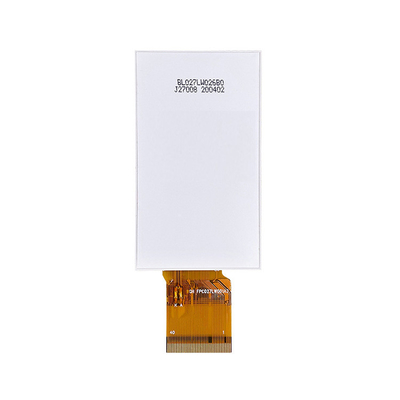

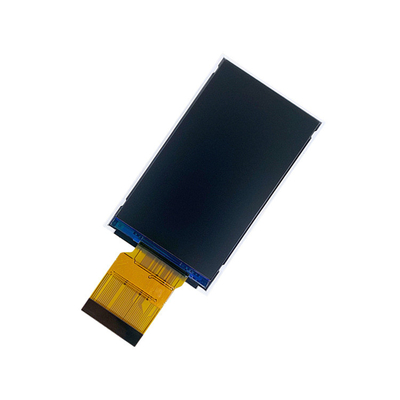

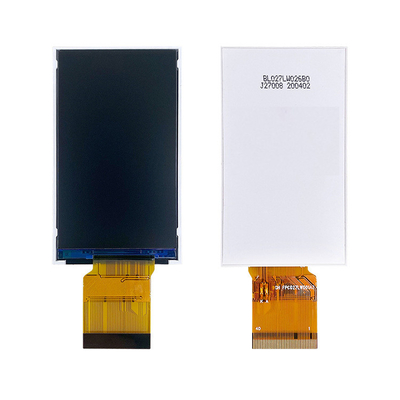

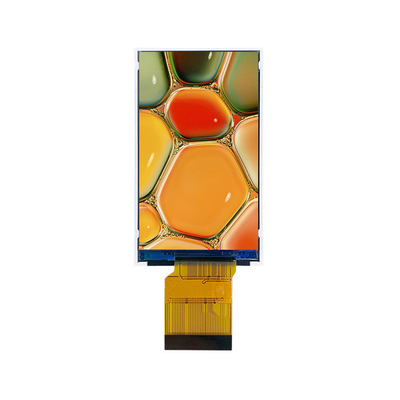

B:Product Picture
