4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface

  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
  • 4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX0439800206A
Document ESHX0439800206A-spec.pdf
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology Bar LCD Display Name TFT Color Display
Size 4.39" Resolution 800 RGBx206
View Angle Free View Angle Interface RGB
Driving IC ST72568-G6-L
Highlight

4.39 inch bar type TFT display

,

bar type TFT display with RGB interface

,

ST72568-G6-L driving IC TFT display
Leave a Message
Product Description
4.39  Inch Bar Type TFT Display with 800*206  Resolution and  RGB  Interface Driving IC ST72568-G6-L
Product Specifications
Part NO. ESHX0439800206A
Display  Type tft display
Diagonal Screen Size 4.39 inch tft display W/O backlight
Active Area (mm) 108.00(W)x28.0(H)
Panel size(mm) 111.6(W)x36.0(H)x1.0(T)
Resolution 800 RGBx206
Interface RGB
View angle ALL
working temp 30~80
storage temp 30~80
Driving IC  ST72568-G6-L

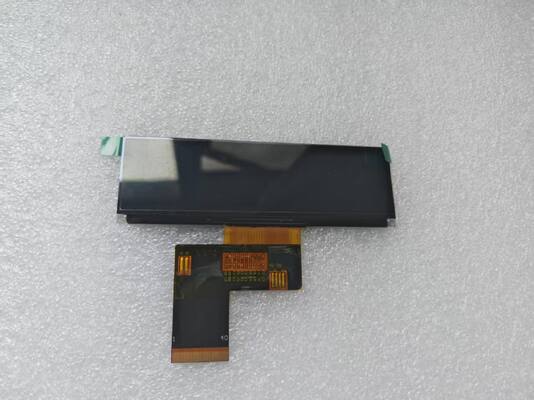

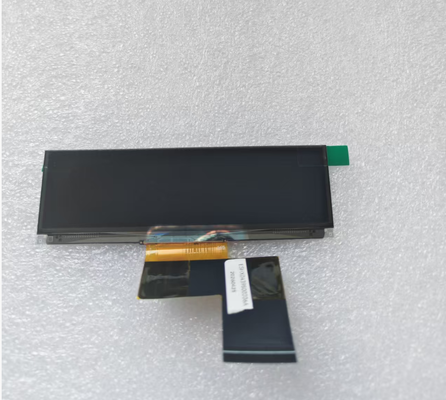

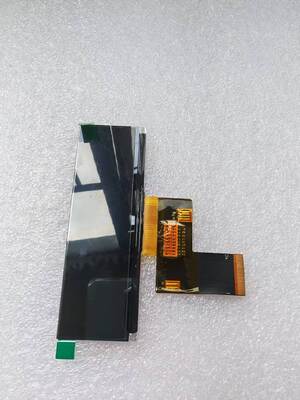

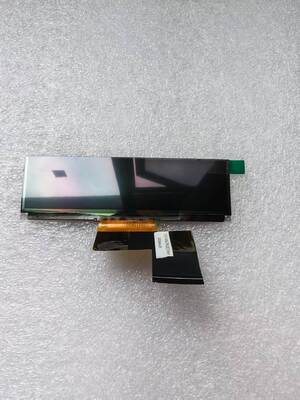

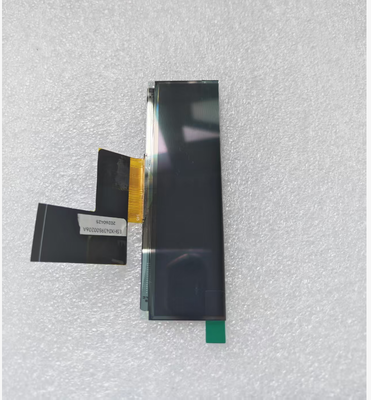

  Product Images

4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface 0

4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface 1

4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface 2


Technical Drawing
4.39 Inch Bar Type TFT Display with 800*206 Resolution and RGB Interface 3

TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
TFT and CF substrate input manufacturing flow chart
TFT structure diagram:
TFT display structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS LCD Module Certification
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
  • Registered Capital: 20 million
  • Current Staff: 500+ employees
  • R&D Team: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: Excellent resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Compatible with LED backlighting systems
  • Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio in certain conditions
  • Backlighting requirements affect power consumption
  • Response time limitations may cause motion blur
  • Limited flexibility in physical form factors
  • Limited color gamut compared to advanced display technologies
