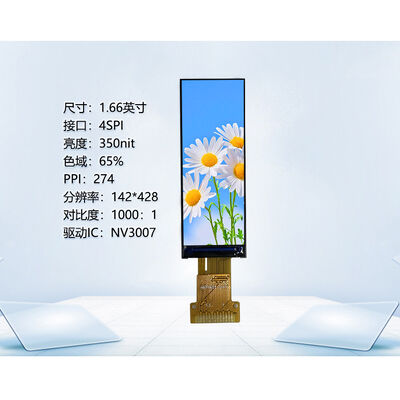

1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007

  • 1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007
  • 1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007
  • 1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007
  • 1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX0166S001
Document HX0166S001-SPEC.pdf
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology Bar LCD Display Name TFT Color Display
Size 1.66" Resolution 142*428
Brightness 350cd/m2 View Angle Free View Angle
Interface 4 Line SPI Driving IC NV3007
Leave a Message
Product Description
1.66  Inch Bar Type TFT Display with 142*428 Resolution and  4-wire SPI Interface Driving IC NV3007
Product Specifications
Part NO. HX0166S001
Display Technology TFT display
Diagonal Screen Size 1.66 inch bar type tft
Active Area (mm) 13.16(H)×39.68(V)
Panel size(mm) 16.3(H) ×44.96(V)×2.23(T)
Brightness(cd/m2) 350
Resolution 142RGB x 428
Interface 4SPI
View angle Free
Driving IC  NV3007
 Product Images

1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 0

1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 1

1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 2

Technical Drawing
1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 3
TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 4
TFT structure diagram:
1.66 Inch Bar Type TFT Display with 142*428 Resolution and 4-wire SPI Interface Driving IC NV3007 5
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS LCD Module Certification
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
  • Registered Capital: 20 million
  • Current Staff: 500+ employees
  • R&D Team: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: Excellent resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Compatible with LED backlighting systems
  • Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio in certain conditions
  • Backlighting requirements affect power consumption
  • Response time limitations may cause motion blur
  • Limited flexibility in physical form factors
  • Limited color gamut compared to advanced display technologies
