1.65 Inch Bar Type TFT Display with 142*428 Resolution and 8 pin SPI Interface Driving IC NV3007
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | HX165KBIG39 |
| Document | HX072-0616TBBIG41-SPEC.pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | Bar LCD Display | Name | TFT Color Display |
|---|---|---|---|
| Size | 1.65" | Resolution | 142*428 |
| Brightness | 400cd/m2 | View Angle | Free View Angle |
| Interface | 4 Line SPI | Driving IC | NV3007 |
Product Description
1.65 Inch Bar Type TFT Display with 142*428 Resolution and 8 pin SPI Interface Driving IC NV3007
Product Specifications
| Part NO. | HX165KBIG39 |
| Display Technology | TFT display |
| Diagonal Screen Size | 1.65 inch bar typeTFT display |
| Active Area (mm) | 13.16 x 39.68 |
| Panel size(mm) | 16.3 x 44.96 x2.23 |
| Brightness(cd/m2) | 400c/d |
| Resolution | 142*428 |
| Interface | 8 pins SPI |
| View angle | all |
| Driving IC | NV3007 |

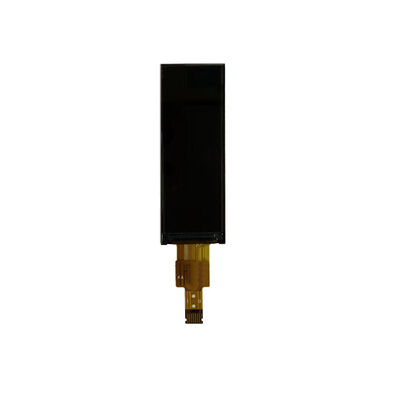

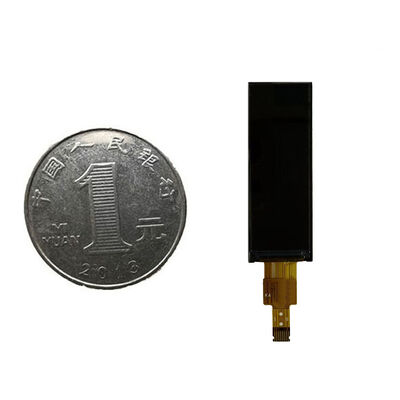

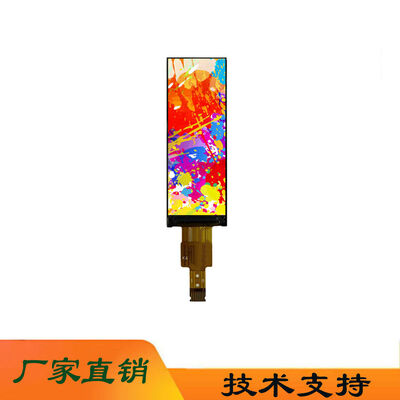

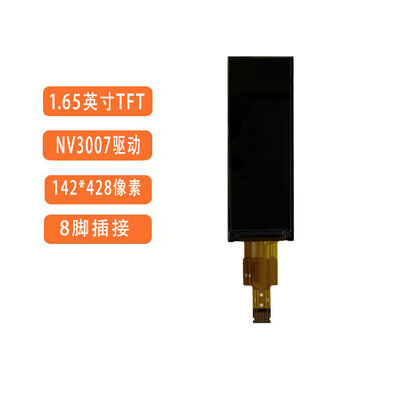

Product Images
Technical Drawing
TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
TFT structure diagram:
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality consistency
- Professional engineering team with 20+ years LCD experience
- Custom product design capabilities
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS LCD Module Certification
Product Portfolio
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
- Registered Capital: 20 million
- Current Staff: 500+ employees
- R&D Team: 10% of workforce
- Quality Control: 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: Excellent resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capabilities
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption compared to other technologies
- Size Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: Compatible with LED backlighting systems
- Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Limited contrast ratio in certain conditions
- Backlighting requirements affect power consumption
- Response time limitations may cause motion blur
- Limited flexibility in physical form factors
- Limited color gamut compared to advanced display technologies
