5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D

  • 5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D
  • 5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D
  • 5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D
  • 5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D
  • 5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX286003B0
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month
Product Details
Display Technology Lcd Display Module Name Color LCD Display
Size 5.2 Resolution 416X1280
Brightness 400c/d Interface MIPI
View Angle ALL Driving IC JD9161Z
Highlight

5.2 inch bar type TFT display

,

MIPI interface TFT display

,

high resolution 416X1280 TFT
Leave a Message
Product Description
HX052BFW8931ANT  is a 5.2 inch bar type TFT display with 416X1280  resolution,  MIPI interface.  400c/d brightness and wide viewing angle.
Product Parameters
Part NO. HX052BFW8931ANT
Display Technology TFT display
Diagonal Screen Size 5.2 inch bar type display
Active Area (mm) 40.75*125.38mm
Panel size(mm) 43.55*131.28*2.08mm
Brightness(cd/m2) 400c/d
Resolution 416X1280
Interface MIPI
View angle all
Driving IC  JD9161Z

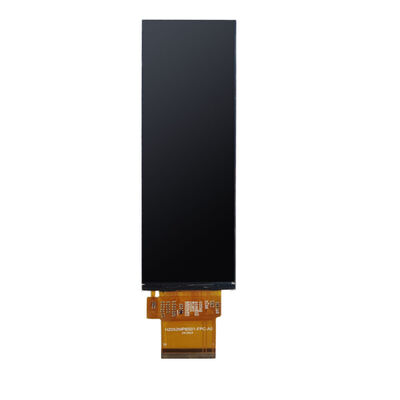

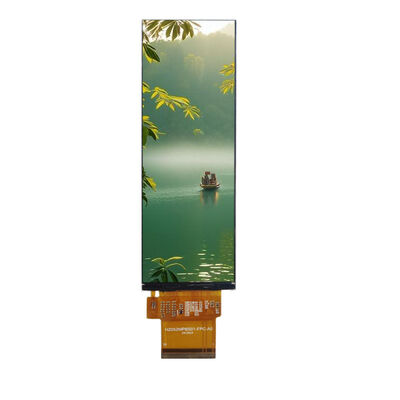

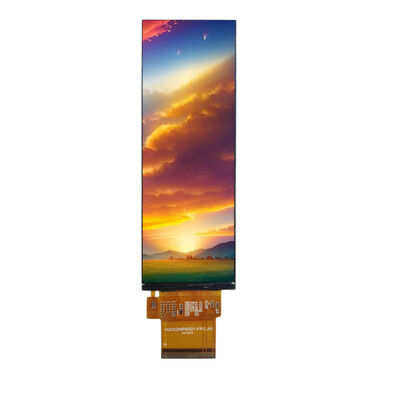

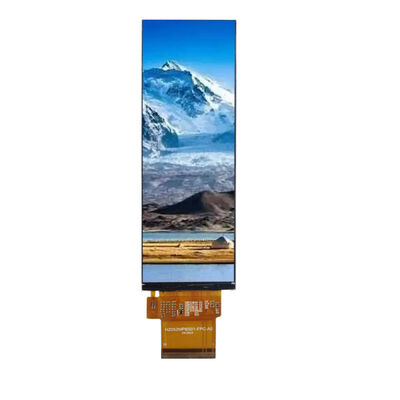

Product Images

5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D 0

5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D 1

5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D 2

Technical Drawing
5.2 Inch Bar Type TFT Display 416X1280 Resolution MIPI Interface 400c/D 3
TFT Product Knowledge
TFT substrate and CF substrate input flow chart TFT structure diagram
Company Information
Huaxin Advantages:
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality
  • Professional engineers with 20+ years experience in LCD field
  • Custom product design capabilities
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Details:
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD types: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM types: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: 20 million
  • Employees: 500+
  • R&D staff: 10%
  • QC staff: 15%
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than other display technologies
  • Size and Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlighting system
  • Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
  • Limited Viewing Angles: Compared to some newer technologies
  • Limited Contrast Ratio: May not achieve deepest blacks
  • Backlighting and Power Consumption: Requires continuous backlight
  • Response Time and Motion Blur: May show blur in fast motion
  • Limited Flexibility: Rigid structure compared to flexible displays
  • Limited Color Gamut: May not cover full color spectrum
