8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module

  • 8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module
  • 8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module
  • 8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module
  • 8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX0801-B40LV
Minimum Order Quantity 1~1000
Price $21.4~$20.9
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Module Name TFT Lcd
Size 8.01 Resolution 1600X480
Brightness 500c/d Interface LVDS
View Angle ALL
Highlight

8.01 inch bar type TFT display

,

1600x480 dots LVDS TFT module

,

500cd/m2 bar type TFT screen
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display Module
Product Parameters
Part No. HX0801-B40LV
Display Size 8.01 inch bar type TFT display
Outline Size (mm) 204.5x70x1
AA Size (mm) 194.4x58.32
Resolution 1600X480
Interface LVDS
Source Driver IC HX8249
Gate Driver IC HX8678
Brightness 500c/d
View Angle All
Product Images

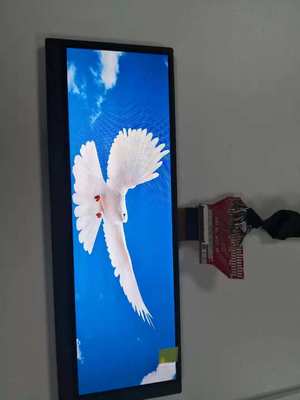

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 0

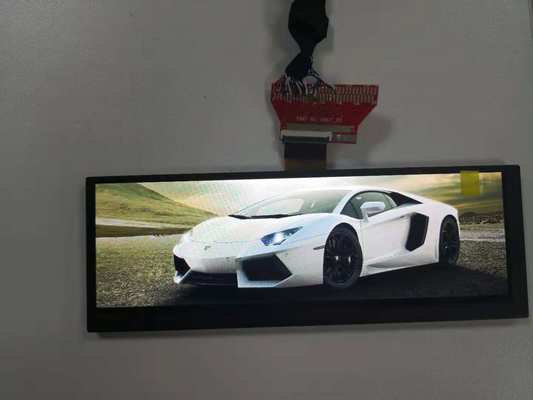

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 1

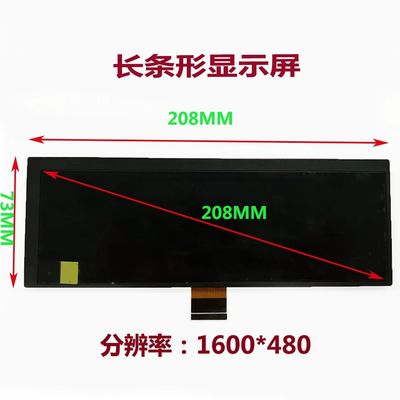

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 2

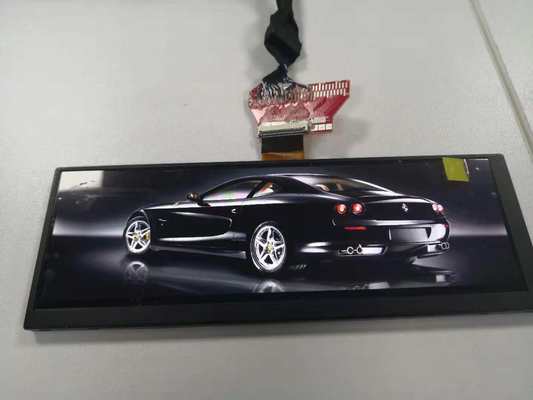

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 3
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 4

TFT structure diagram:

8.01 Inch Bar Type TFT 1600X480 dots LVDS Interface 500cd/M2 TFT Display module 5
Company Information
Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi
Founded: 2009
Registered Capital: 20 million
Current Staff: 500+

Company Advantages
  • Cost-effective factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED backlighting for illumination
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
