1.9 Inch IPS Resolution 176X320 Bar Type IPS LCD Screen with Mipi Interface

1.9 Inch IPS Resolution 176X320 Bar Type IPS LCD Screen with Mipi Interface

A:Basic Info

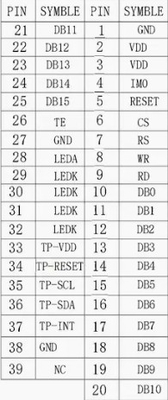

B:Product Parameters

1.9 Inch IPS Resolution 176x320 Bar Type IPS LCD Screen with MIPI Interface

4-Wire resistive touch panel overview:

• 4-Wire Resistive touch screen is an outstanding high quality product, suitable for low cost solution.
• It is inherently of many advantages such as high accuracy, quick response, drift-free, stable and long durability for a life time of 1,000,000 times finger touches.
• 4 wire Resistive touchscreen featured contamination-resistant and waterproof, is designed for the harshest environment such as dust is prevalent or liquid spills, splashes and wash down.
• It can be touched by finger, gloved finger, leather or stylus pen.

Benefit:

Low cost

Finger, gloved hand and stylus activation

High accuracy and sensitivity

High durability and reliability

Contaminant proof and liquid resistance

Product Specification:

It is a 3.5 inch Touch Screen LCD Display with resolution 320*480 and Resistive Touch Panel.

It supports MCU interface including typical brightness 500 cd/m2.

This IPS LCD module can be operating at temperatures from -20ºC to +70ºC.

Its storage temperatures range from -30ºC to +80ºC.

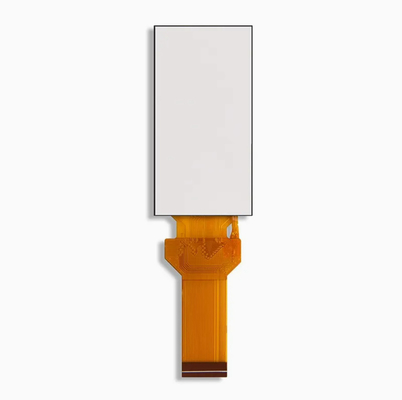

C: Product Picture

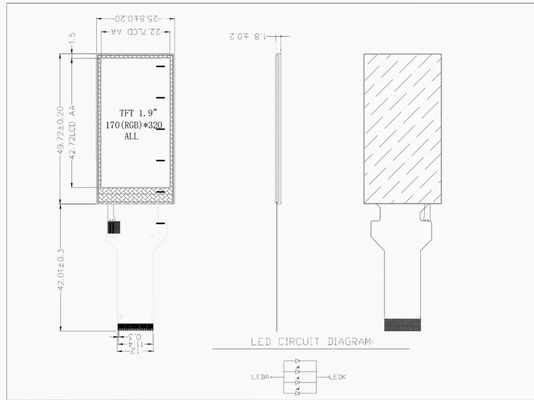

D:Drawing

E: E-paper Product Knowledge


• E- paper  Advantages:
• paper-like reading experience
• ultra wide view angle
• ultra low power consumption
• ultra thin
• eye protection
• environmental protection
• without backlight

E-paper  Disadvantages

• suitable to lower temperature
• size is limited in the market
• color is limited and can't make full color

F: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module

• Huaxin Technology (Enshi)Co.,LTD
• Hubei.Enshi
• Date of foundation:2009
• high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
• LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB,TBA, COG,TP,LED backlight and other series
• register capital:twenty million
• current staff:500+
• RD accounts for 10%
• QC accounts for 15%

G: Production Capacity

H: Product Application

1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home

I: E-paper display Characteristics

1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate

J:Are there any drawbacks to using e-paper displays

1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
