STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX1602ND
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Mode STN LCD DISPLAY Name LCD DISPLAY
View Angle 6:00 Dots 1602
ASSEMBLY TYPE COB Driving IC AIP31066 Or Equivalent
Highlight

6800 serial COB LCD display module

,

STN COB LCD Display Module

,

160x02 COB LCD Display Module

Leave a Message
Product Description

ESHX1602ND is STN /COB lcd display , 1602 DOTS,6800 serial 8-bit/4-bit MPU interface, 6:00 o'clock ,driving ic AIP31066 or equivalent, brightness 350C/D

A: Product Parameter



Part No: ESHX1602ND
display MODE STN COB LCD display module
display dots 1602
outline size(mm) 53x20x10.8
VA size(mm) 34.1x7.4
View Angle 6:00 o'clock
interface 6800 serial 8-bit/4-bit MPU
working temp -20~70
storage temp -30~80
Brightness 350C/D
Driving IC AIP31066 or equivalent



B: Product Picture

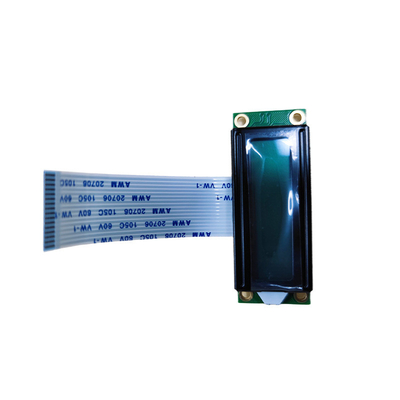

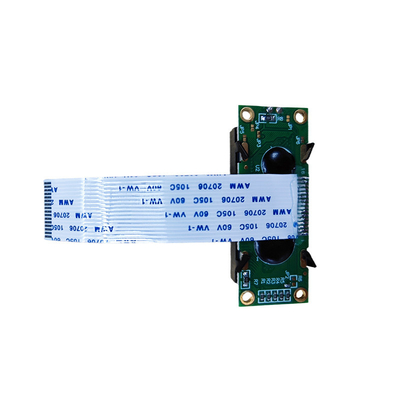

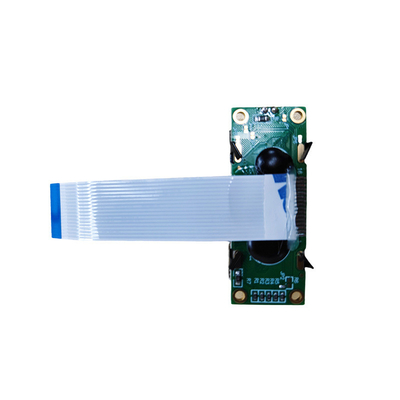

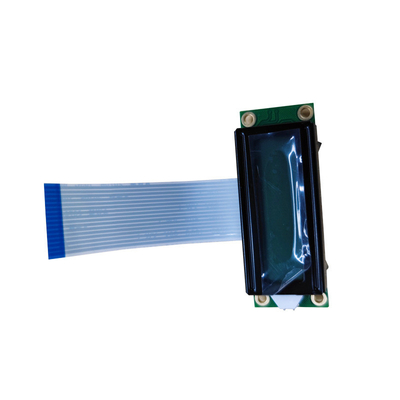

STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface 0STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface 1STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface 2STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface 3



C:Drawing







D: LCD Product Knowledge




LCD  Advantages:



Tooling charge and unit price are much cheaper than TFT and oled.



LCD  Disadvantages

LCD is cutomized but TFT and oled lcd size are standard one , LCD is mono and narrow view angle .lower contrast ratio

STN COB LCD Display Module 160x02 Dots 6:00 O'clock 6800 Serial 8-bit/4-bit MPU Interface 4



E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
