3.5 Inch FSTN / STN Dot Matrix Lcd Module , 16x1 1/16 Duty 1/5 Bias Driving IC AIP31066

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX1601B
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 500K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LCD Display Type FSTN /STN Lcd Name Dot Matrix Lcd
Panel Size 3.2 Inch STN COB Module Driving IC AIP31066
Driving Method 1/16 Duty,1/5 Bias ASSEMBLY TYPE PCB
High Light

3.5 Inch dot matrix lcd module

,

FSTN dot matrix lcd module

,

STN 16x1 dot matrix lcd display

Leave a Message
Product Description

ESHX1601B is  16x1 dot matrix LCD display, lcd display  type is STN/FSTN  COB module  .display color BLUE/YELLOW GREEN  and  driving  method is  1/16 duty,1/5 bias,driving IC is AIP31066



A: Product Parameter

Part NO. ESHX1601B
Panel size 3.2 inch STN/FSTN COB module
Resolution
16*1
Panel Size(mm) 122*33*13
Active Area (mm) 94.84*9.66
driving method 1/16 DUTY,1/5 BIAS
voltage 5.0/3.3
Driving IC AIP31066
Working temp -20~70
color blue/yellow green/GRAY



B: Product Picture

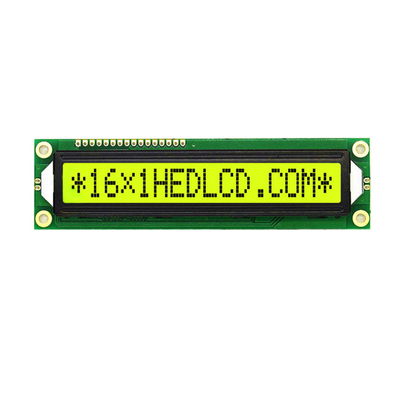

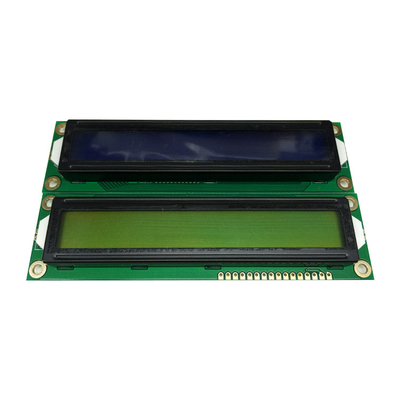

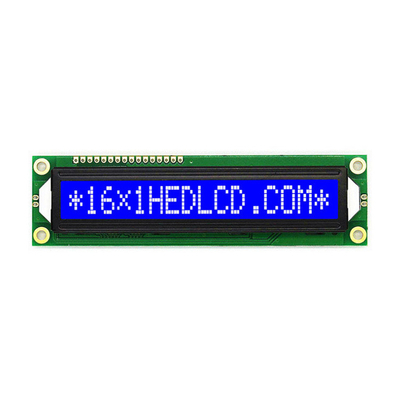

3.5 Inch FSTN / STN Dot Matrix Lcd Module , 16x1 1/16 Duty 1/5 Bias Driving IC AIP31066 03.5 Inch FSTN / STN Dot Matrix Lcd Module , 16x1 1/16 Duty 1/5 Bias Driving IC AIP31066 13.5 Inch FSTN / STN Dot Matrix Lcd Module , 16x1 1/16 Duty 1/5 Bias Driving IC AIP31066 2

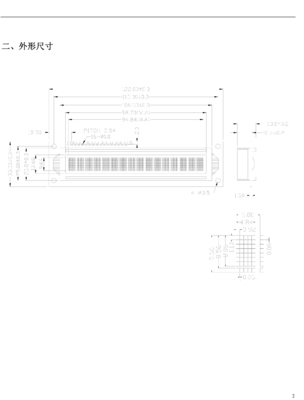

C:Drawing

3.5 Inch FSTN / STN Dot Matrix Lcd Module , 16x1 1/16 Duty 1/5 Bias Driving IC AIP31066 3
