12.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX121XG02A10
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Tft Ips Display Name Lcd Module
Size 12.1" Resolution 1024x768
Brightness 1200cd/m2 View Angle Free
Interface 20PINS LVDS
High Light

1024X768 tft display module

,

12.1 inch tft display module

,

20pins LVDS tft display module

Leave a Message
Product Description



ESHX121XG02A10   is 12.1  inch TFT display module, resolution is 1024x768, 20pins LVDS interface, brightness is 1200c/d, free view angle



A:Product Parameter

Part No:
ESHX121XG02A10
unit
Size 尺寸 12.1 inches​ ​
Resolution 分辨率 1024*768 pixels
Active Area 显示区域 245.76*184.32 mm
Outline dimension 外观尺寸 260.5*204*8.51 mm
Pixel pitch 点距 0.08*0.08 mm
Color Depth 颜色 16.7M colors
Display Mode 显示模式 Transmissive, a-Si
Surface treatment 表面处理 AG
Interface 接口 LVDS 20PIN
View Angle 可视角度 89/89/89/89
Brightness 亮度 Typ1200 Nits
Contrast ratio 对比度 Typ1000
Response time 响应时间 25 ms
Operating temperature 工作温度 -30 ... +80 °C
Storage temperature 储存温度 -30 ... +80 °C



B:Product Picture

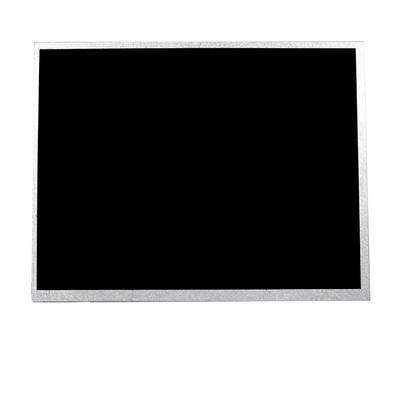

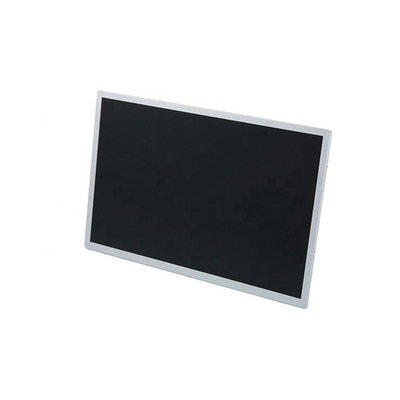

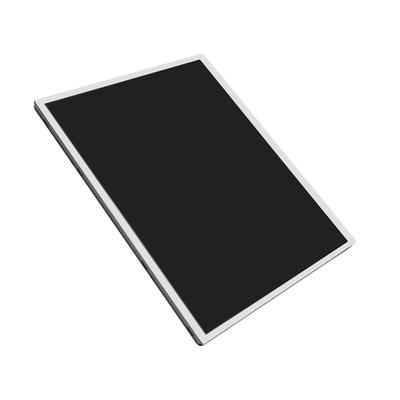

12.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D 012.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D 112.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D 2






C:Drawing


...............................................................



D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


12.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D 3



TFT structure  as below

12.1 inch tft display module 1024X768 resolution 20 pins LVDS interface 1200 C/D 4
