Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display

  • Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display
  • Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display
  • Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display
  • Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display
  • Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display
Place of Origin China
Brand Name huaxin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX012A220A
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology IPS Tft Name Industrial Lcd Modules
Size 1.28" Resolution 205x148
Interface RGB 6 BIT Luminance Sunlight Readable
Viewing Direction Free View Display Mode Transflective
Highlight

1.28 inch Sunlight Readable TFT

,

transflective Sunlight Readable TFT

,

6bit tft lcd display
You can tick the products you need and communicate with us in the message board.
Sunlight readable
Leave a Message
Product Description

ESHX012A220A  is 1.28 inch  TFT display, display mode is transflective  and number of pixels is 205x148  and view direction is free, 24 pins RGB 6 bit  interface,



A:Product Parameter

ITEM specification
Model Number ESHX012A220A
size 1.28 inch TFT
LCD Type IPS
display mode transflective
Number of pixels 205x148
Active area 20.88x24.36
OutlineSize(W*H*T) 31.6x26.15x1.026mm
Viewing direction free view
LCM Driver IC /
LCM interface RGB 6 BIT interface

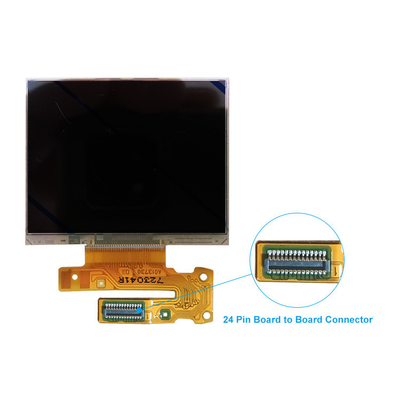

PIN number 24 pins
LED number 2pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance Sunlight readable

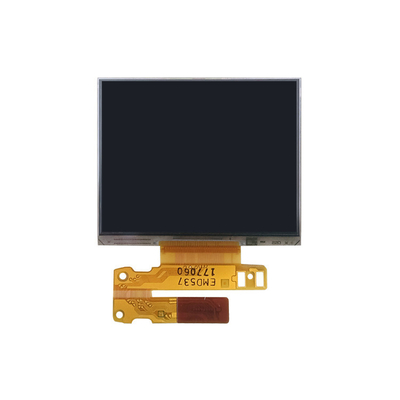

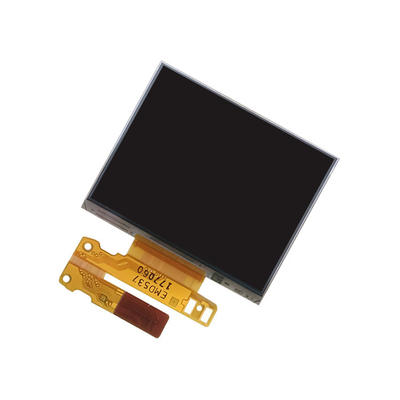

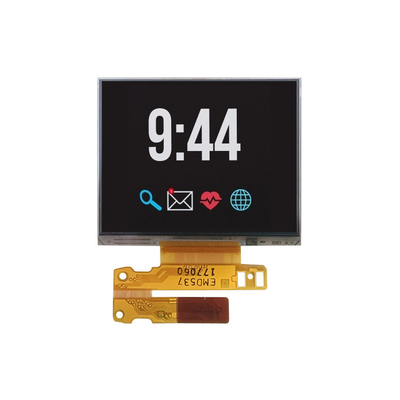

B:Product Picture

Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 0







Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 1

Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 2

C: Drawing



Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 3

Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 4

D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 5



TFT structure as below

Transflective 1.28 Inch Sunlight Readable TFT, 205x148 24 Pins RGB 6 BIT Interface, LCD Display 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
