12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX123Z7M-N14
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 12.3" Resolution 1920x720
Brightness 1000cd/m2 View Angle Free
Interface 60PINS LVDS
High Light

1920x720 tft display module

,

12.3 inch tft display module

,

60 PINS tft display module

Leave a Message
Product Description



ESHX123Z7M-N14  is 12.3  inch TFT display module, resolution is 1920x720, 60pins LVDS interface, brightness is 1000c/d, free view angle



A:Product Parameter

Part No: ESHX123Z7M-N14 unit
Size尺寸 12.3 inches​ ​
Resolution分辨率 1920x720
Active Area显示区域 292.032×109.512 mm
Outline dimension外观尺寸 307x126 mm
Color Depth颜色 16.7 M colors
Display Mode显示模式 Normally black Transmissive
Surface treatment表面处理 HC
Interface接口 60 Pin LVDS
View Angle可视角度 85/85/85/85
Brightness亮度 1000 Nits
Operating temperature工作温度 -40 ... +85 °C
Storage temperature储存温度 -40 ... +95 °C
Contrast ratio 对比度 1100



B:Product Picture

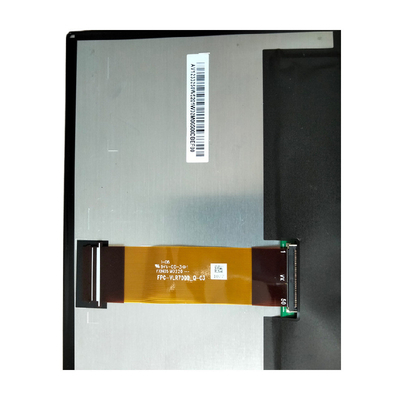

12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D 0

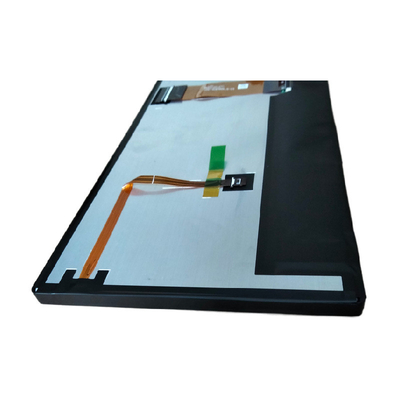

12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D 1

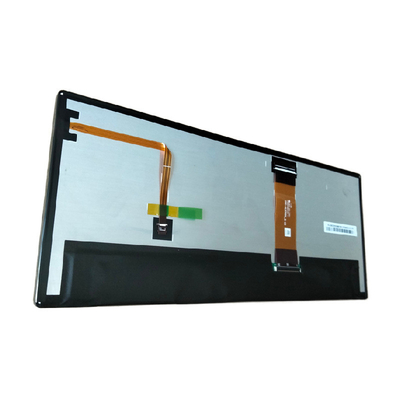

12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D 2



C:Drawing






D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below

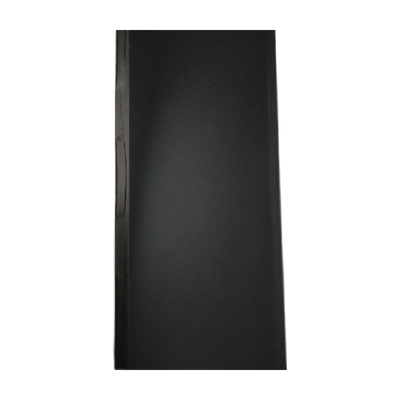

12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D 3



TFT structure  as below

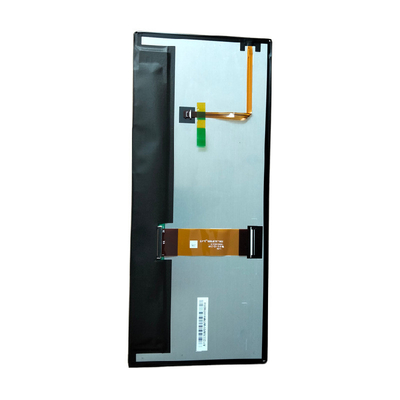

12.3 inch tft display module 1920x720 resolution 60 PINS lvds interface 1000C/D 4
