1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V

  • 1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V
  • 1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V
  • 1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V
  • 1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V
  • 1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX13003A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 1.3 " Resolution 240*240
Brightness 300cd/m2 View Angle Free
Interface 8080 8-bit Parallel MCU
Highlight

240*240 LCD TFT Display

,

ST7789V LCD TFT Display

,

1.3 Inch LCD TFT Display
Leave a Message
Product Description

ESHX13003A   is 1.3  inch TFT display module, resolution is 240*240 , 8080 8-bit Parallel MCU  interface, brightness is 300c/d, free view angle



A: Product Parameter

Part NO. ESHX13003A
Display Type 1.3 inch tft display module
Resolution 240*240
Panel Size(mm) 26.2(W)*29.22(H)*1.94(T)
Active Area (mm) 23.4(W)* 23.4 (H)
View direction ALL
interface 8080 8-bit Parallel MCU
LCD IC ST7789V
brightness 300c/d



B:Product Picture

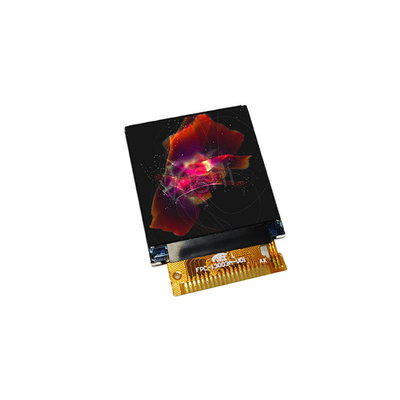

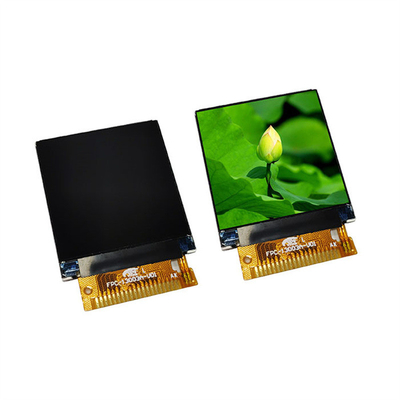

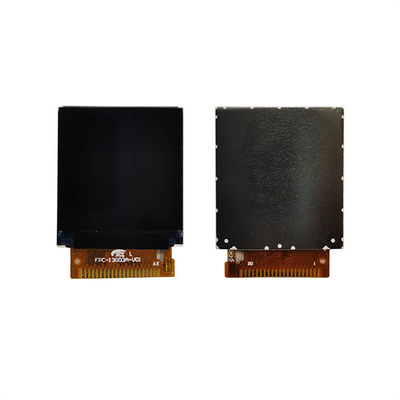

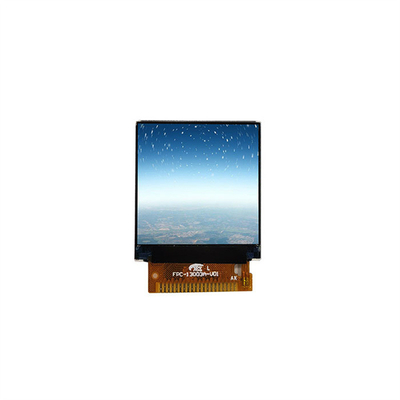

1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 01.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 11.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 21.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 3

C: Drawing


1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 4



D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 5



TFT structure  as below

1.3 Inch Tft Lcd Display 240*240 Resolution 8080 8-Bit Parallel MCU Interface ,Driving IC  ST7789V 6
