14.7 Inch Square TFT Display Module with 1080x1080 Resolution and LVDS Interface
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | HX147-30LB-A1 |
| Document | HX147-30LB-A1-SPEC(1).pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | Square LCD Display | Name | Big Size TFT |
|---|---|---|---|
| Size | 14.7" | Resolution | 1080x1080 |
| View Angle | Free View Angle | Interface | LVDS |
| Brightness | 950C/D | ||
| Highlight | 14.7 inch square TFT display,1080x1080 resolution TFT module,LVDS interface HDMI display module |
||
Product Description
HX147-30LB-A1 is a color active matrix TFT LCD FOB using amorphous silicon
TFT's(Thin Film Transistors) as an active switching devices. This module has a 14.7 inch
diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 16.7M colors. The TFT-LCD panel used for
this module is a low reflection and higher color type. The LED Driver for back-light
driving is built in this model. All input signals are LVDS interface compatible.
Product Specifications
| Part NO. | HX147-30LB-A1 |
| Display Type | Square tft display |
| Diagonal Screen Size | 14.7 inch square TFT display |
| Active Area (mm) | 260.28(H)*269.24V |
| Panel size(mm) | 276.86Xx285.86 |
| Resolution | 1080x1080 |
| Interface | LVDS |
| View angle | ALL |
| Brightness | 950C/D |
| Driving IC | N/A |

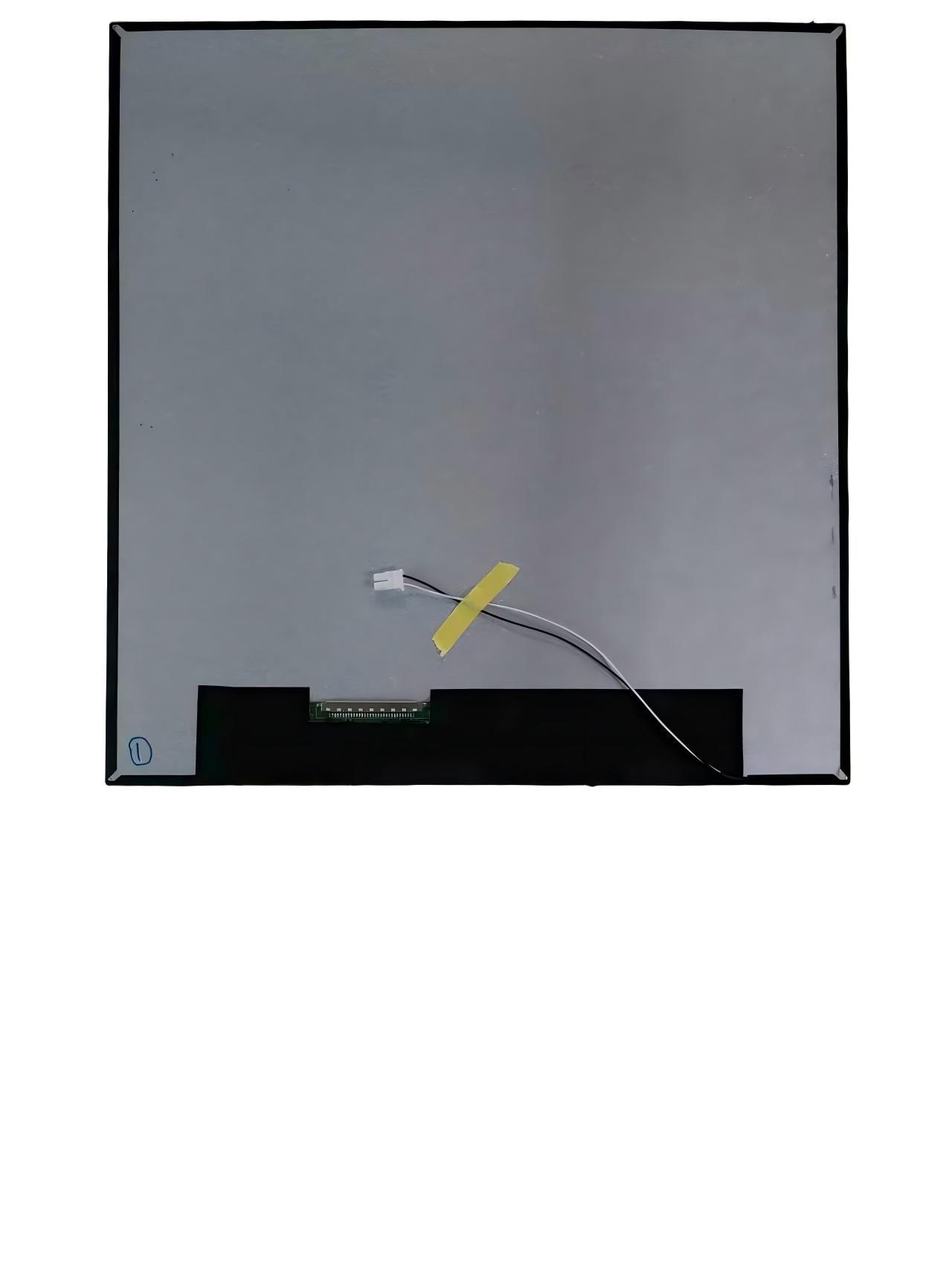

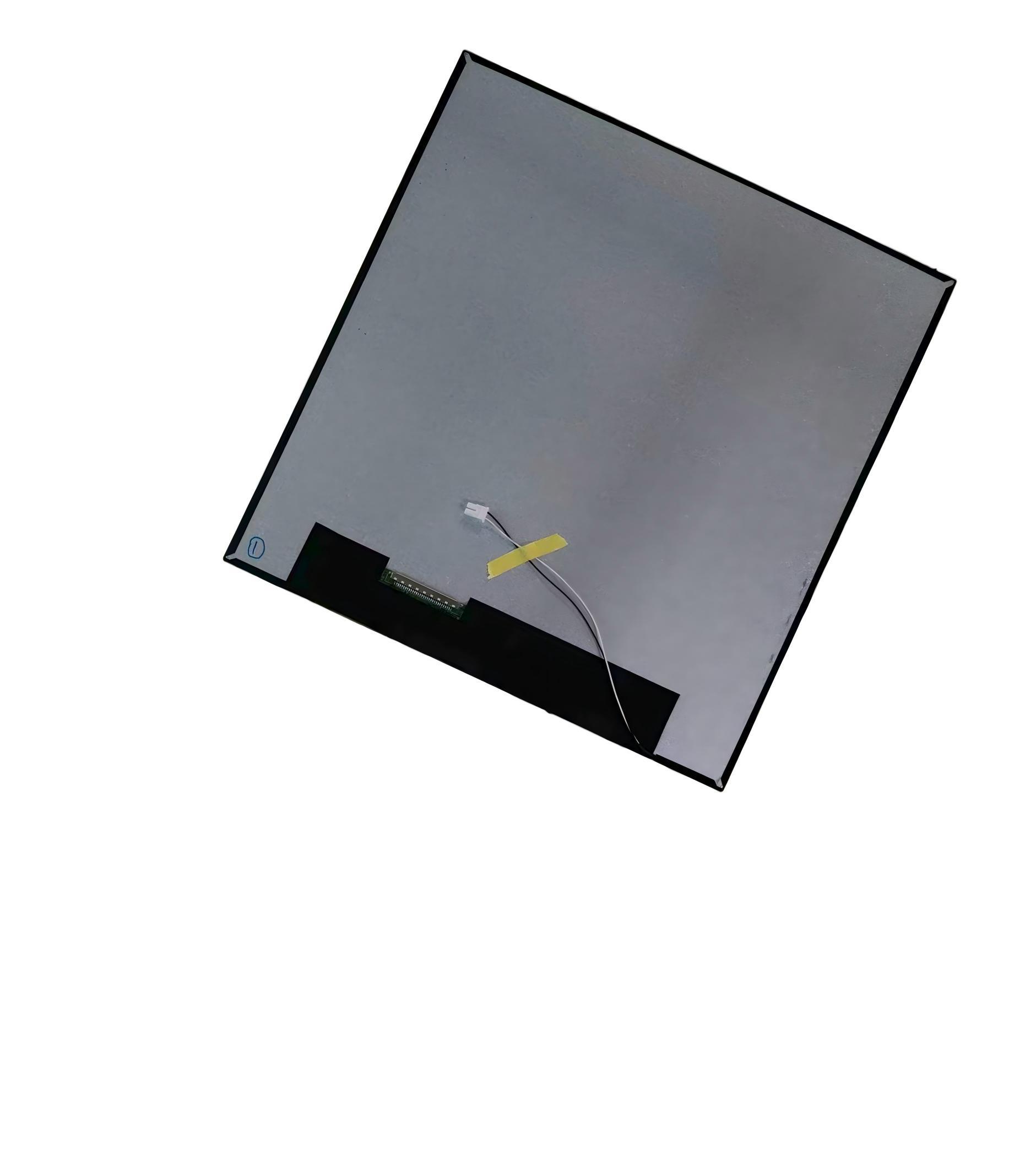

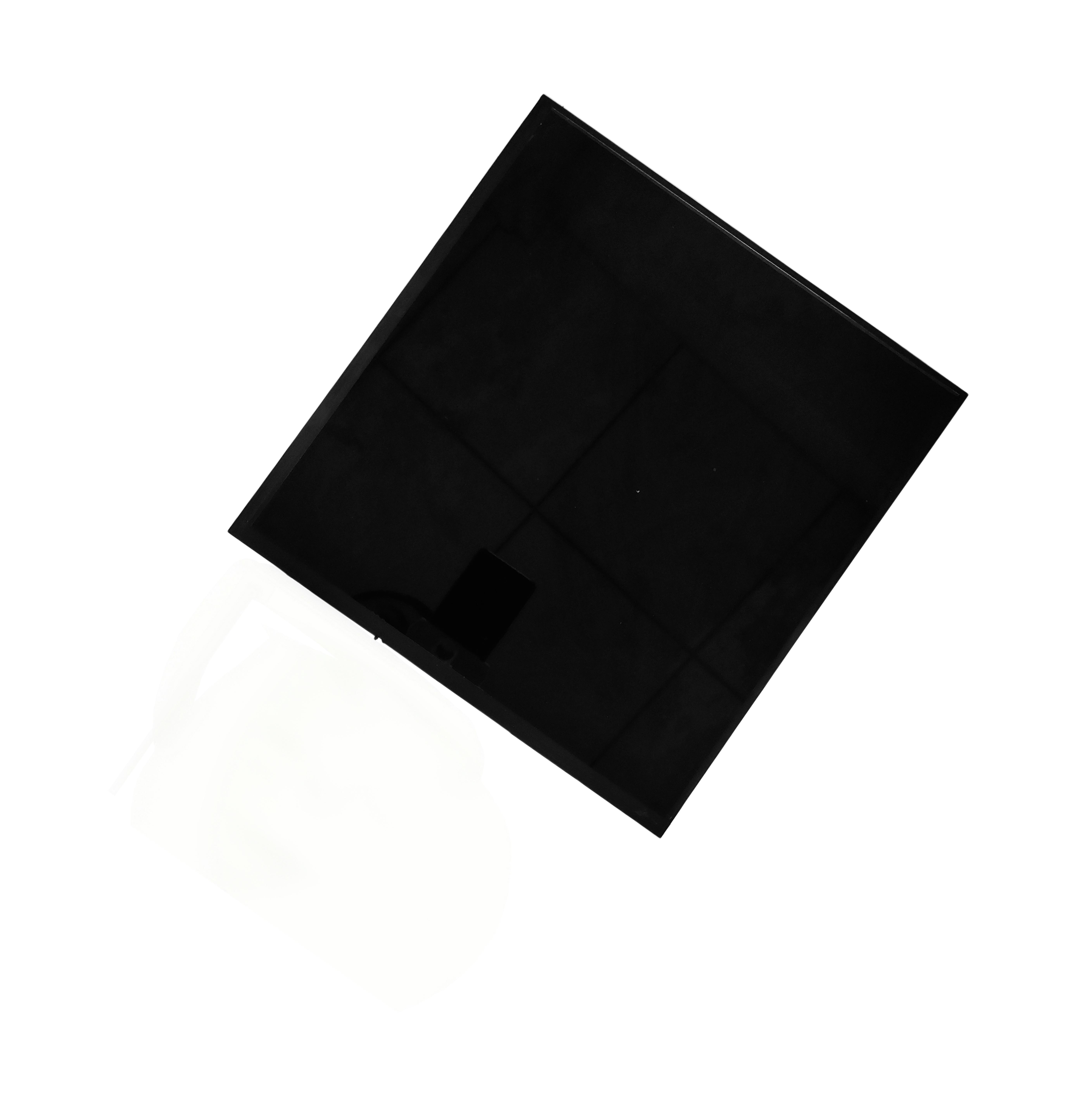

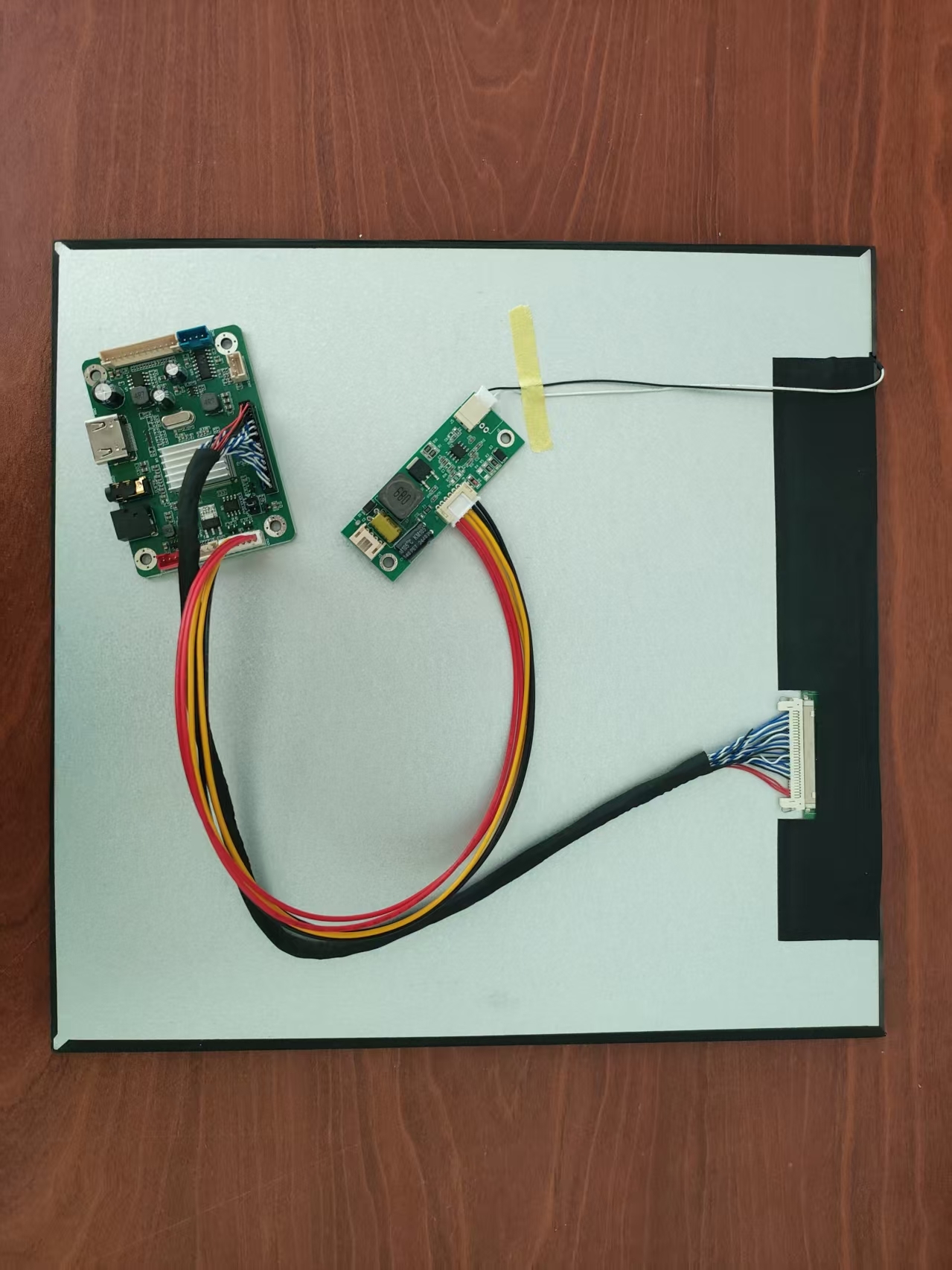

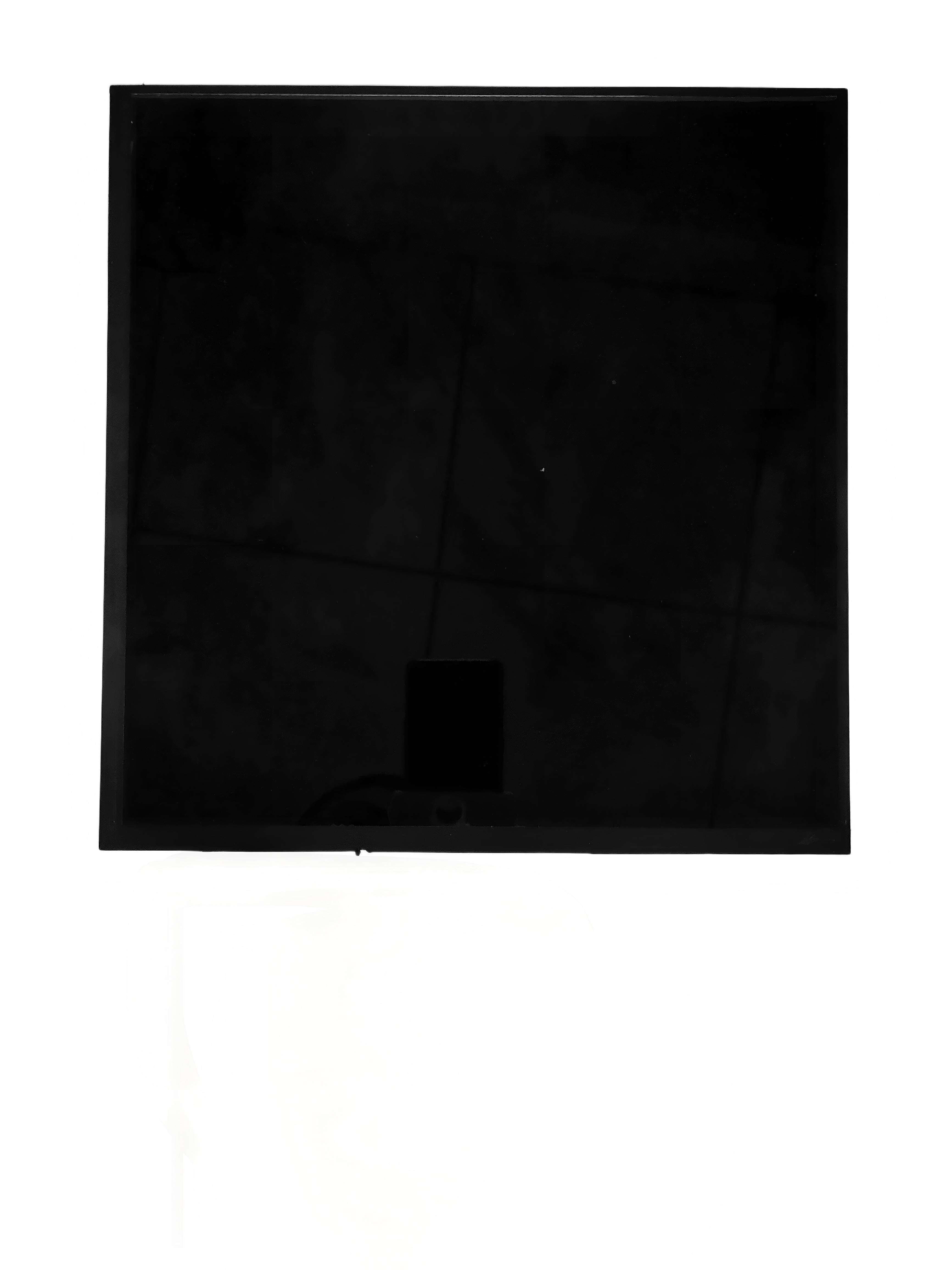

Product Images

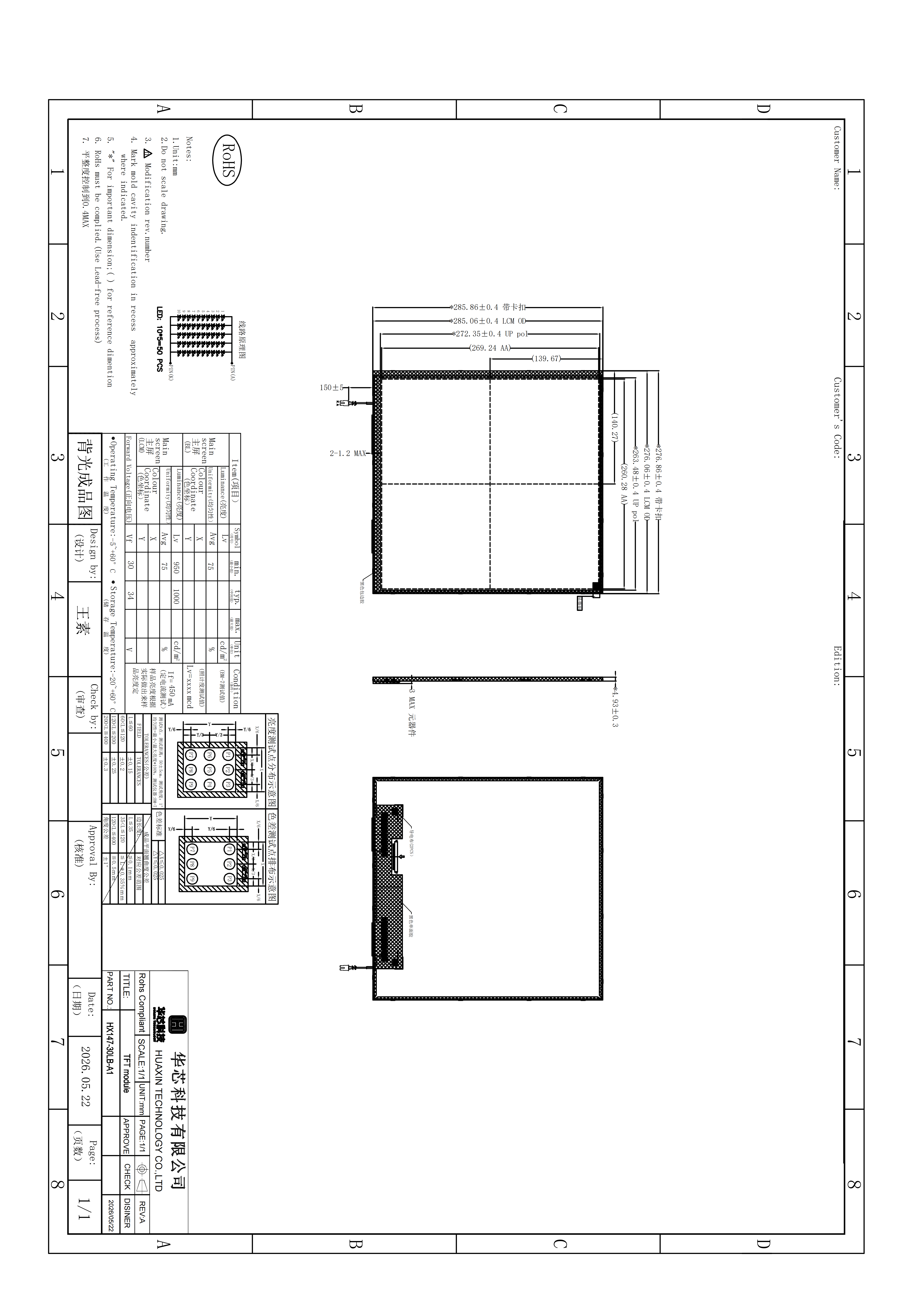

Technical Drawing
TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
TFT structure diagram:
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality consistency
- Professional engineering team with 20+ years LCD experience
- Custom product design capabilities
Certifications
- ISO14001 Environmental Management
- ISO9001/IATF16949 Quality Management
- SGS LCD Module Certification
Product Portfolio
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
- Registered Capital: 20 million
- Current Staff: 500+ employees
- R&D Team: 10% of workforce
- Quality Control: 15% of workforce
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
Product Applications
- Car navigation systems & printers
- Video call systems & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Advantages
- Image Quality: Excellent resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capabilities
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption compared to other technologies
- Size Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: Compatible with LED backlighting systems
- Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Limited contrast ratio in certain conditions
- Backlighting requirements affect power consumption
- Response time limitations may cause motion blur
- Limited flexibility in physical form factors
- Limited color gamut compared to advanced display technologies
