3.9 Inch bar type TFT Display , 480x128 Resolution , 24 bit RGB Interface ,760c/d

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX39001A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Module Name TFT Lcd
Size 3.9 Resolution 480x128
Brightness 750c/d Interface 24 Bit RGB
View Angle 12:00
High Light

bar type TFT Display

,

480x128 bar type tft Display

,

RGB Interface bar type tft Display

Leave a Message
Product Description

ESHX39001A   is  3.9  inch bar type  TFT  display 480x128    resolution, 24 bit RGB   interface . brightness  is 750c/d and  view angle is 12:00



A: Product Parameter

Part NO. ESHX39001A
Display Type 3.9 inch tft display module
Resolution 480x128
Panel Size(mm) 105.5(H) x 40.64 (V) x 2.95(T)
Active Area (mm) 95.04(H) x 25.344(V)
View direction 12:00
interface 24 bit RGB
LCD IC ST7282
brightness 760c/d


B:Product Picture

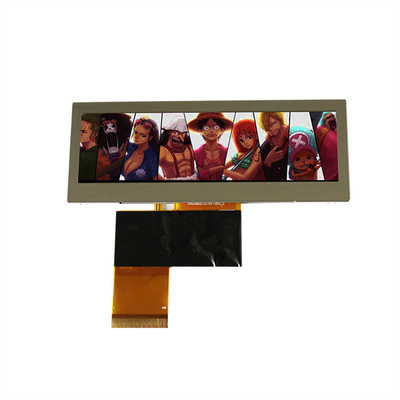

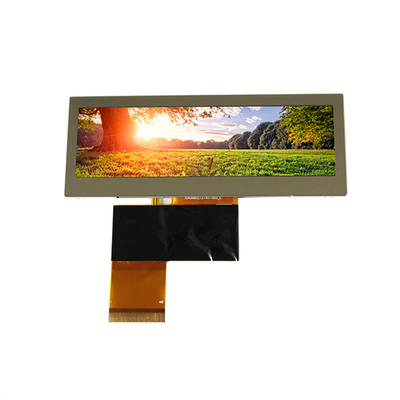

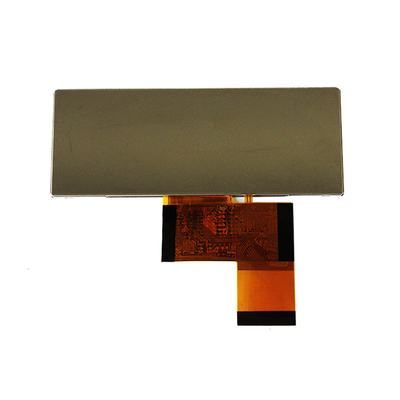

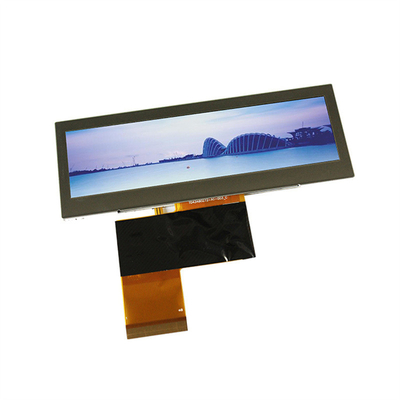

3.9 Inch bar type  TFT Display , 480x128  Resolution , 24 bit RGB  Interface ,760c/d 03.9 Inch bar type  TFT Display , 480x128  Resolution , 24 bit RGB  Interface ,760c/d 13.9 Inch bar type  TFT Display , 480x128  Resolution , 24 bit RGB  Interface ,760c/d 23.9 Inch bar type  TFT Display , 480x128  Resolution , 24 bit RGB  Interface ,760c/d 3
