SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution

  • SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution
  • SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution
  • SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution
  • SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution
  • SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution
Place of Origin China
Brand Name huaxin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX030VA01
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology LCD Display Name TFT Display
Size 3" Resolution 640*480
Interface SPI+RGB Luminance Sunlight Readable
Viewing Direction All Display Mode Transflective
Highlight

Transflective Sunlight Readable TFT Display

,

SPI+RGB Interface Sunlight Readable TFT

,

640*480 Sunlight Readable TFT Display
You can tick the products you need and communicate with us in the message board.
Sunlight readable
Leave a Message
Product Description

ESHX030VA01  is 3 inch  transflective  TFT display, display mode is transflective  and number of pixels is 640*480   and view direction is free , SPI+RGB   interface, brightness is 500cd/m2



A:Product Parameter

Part NO. ESHX030VA01
Panel size 3 inch TFT transflective display
Resolution 640*480
Viewing Angle all
Operation Temperature -20~70
storage temperature -30~80
Panel Size(mm) 71.4X52X2.2
Active Area (mm) 60X45
Brightness(cd/m2) 500c/d
Interface SPI+RGB
touch panel /

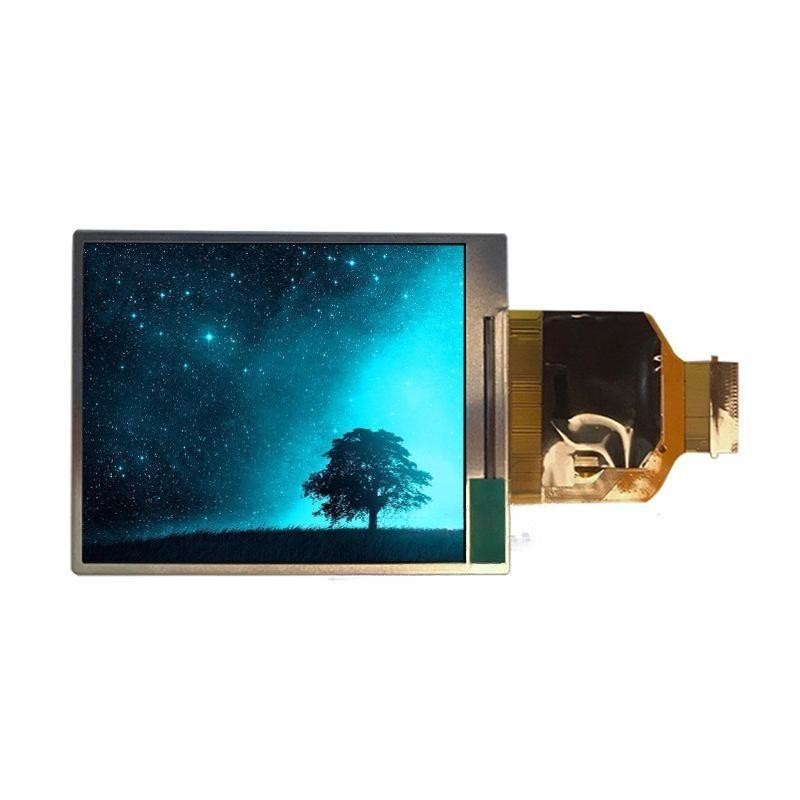

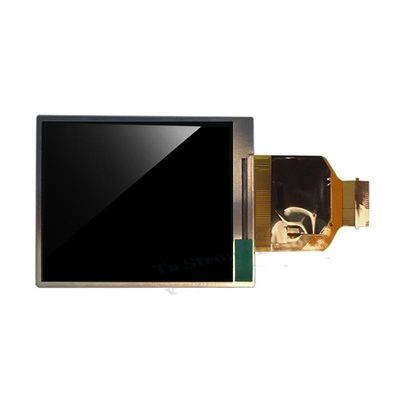

B: Product Picture

SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 0SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 1SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 2



C: Drawing


SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 3

D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 4



TFT structure as below

SPI+RGB Interface Transflective Sunlight Readable TFT Display 3 Inch 640*480 Resolution 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
