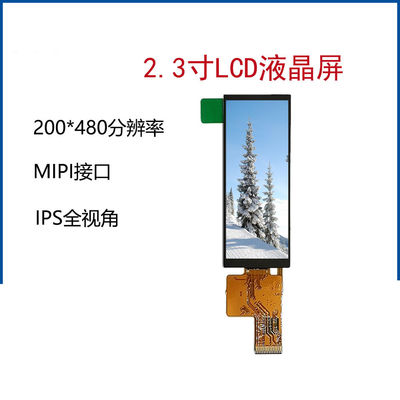

2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle

  • 2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle
  • 2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle
  • 2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle
  • 2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle
  • 2.3 Inch Bar Type TFT LCD Display Module with 200x480 Resolution and Free View Angle
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXO22HXS02
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology Lcd Display Name TFT Display
Size 2.3 " Resolution 200x480
Brightness 500cd/m2 View Angle Free View Angle
Interface 31pins MIPI
Highlight

2.3 Inch TFT LCD Display Module

,

31pins Mipi Interface TFT LCD Module

,

TFT LCD Module 500nits
Leave a Message
Product Description
2.3 Inch TFT LCD Display Module, 200x480 Resolution, 500nits, 31pins Mipi Interface
ESHXO22HXS02 is a 2.3 inch TFT display module with 200×480 resolution, 500cd/m² brightness, 31-pin MIPI interface, and wide viewing angle.
Product Specifications
Parameter Value
Part No. ESHXO22HXS02
Panel Size 2.3 inch TFT display
Resolution 200×480
Viewing Angle All directions
Operation Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Panel Dimensions (mm) 23.82×57.39×1.93
Active Area (mm) 21.72×52.42
Brightness 500cd/m²
Interface 31-pin MIPI
Product Images

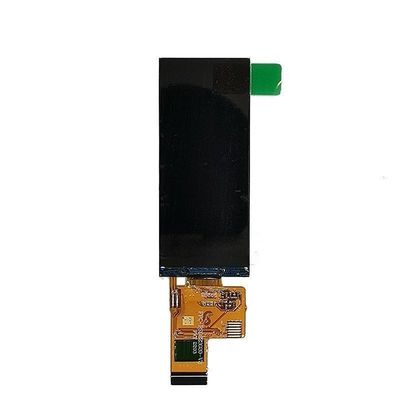

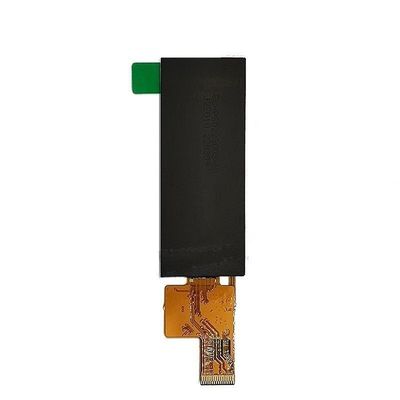

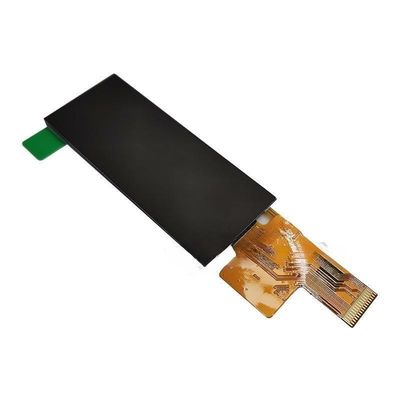

2.3 inch TFT LCD display module front view 2.3 inch TFT LCD display module side view 2.3 inch TFT LCD display module close-up 2.3 inch TFT LCD display module technical details
TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
TFT substrate and CF substrate input flow diagram
TFT Structure
TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
