8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX080 ZKBNW0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 8" Resolution 1600X480
Brightness 400cd/m2 View Angle Free View Angle
Interface 40pins/lvds
High Light

8 Inch TFT LCD Display Module

,

1600X480 TFT Display Module

,

40pins LVDS TFT Module

Leave a Message
Product Description
ESHX69001C40  is 6.9 inch a color active matrix TFT LCD display  ,280x1424  resolution and 40PINS  HDMI  interface  ,400c/d and driving IC JD9365DA


A:Product Parameter

LCD Number ESHX080 ZKBNW0
product size 8 inch
view angle all
resolution 1600X480
interface 40 PINS LVDS
outline size 204.5X70X1MM
AA SIZE 149.4X58.32
Operating Temp: -20~70
driving IC HX8249/HX8678
Brightness 400c/d



B:Product Picture

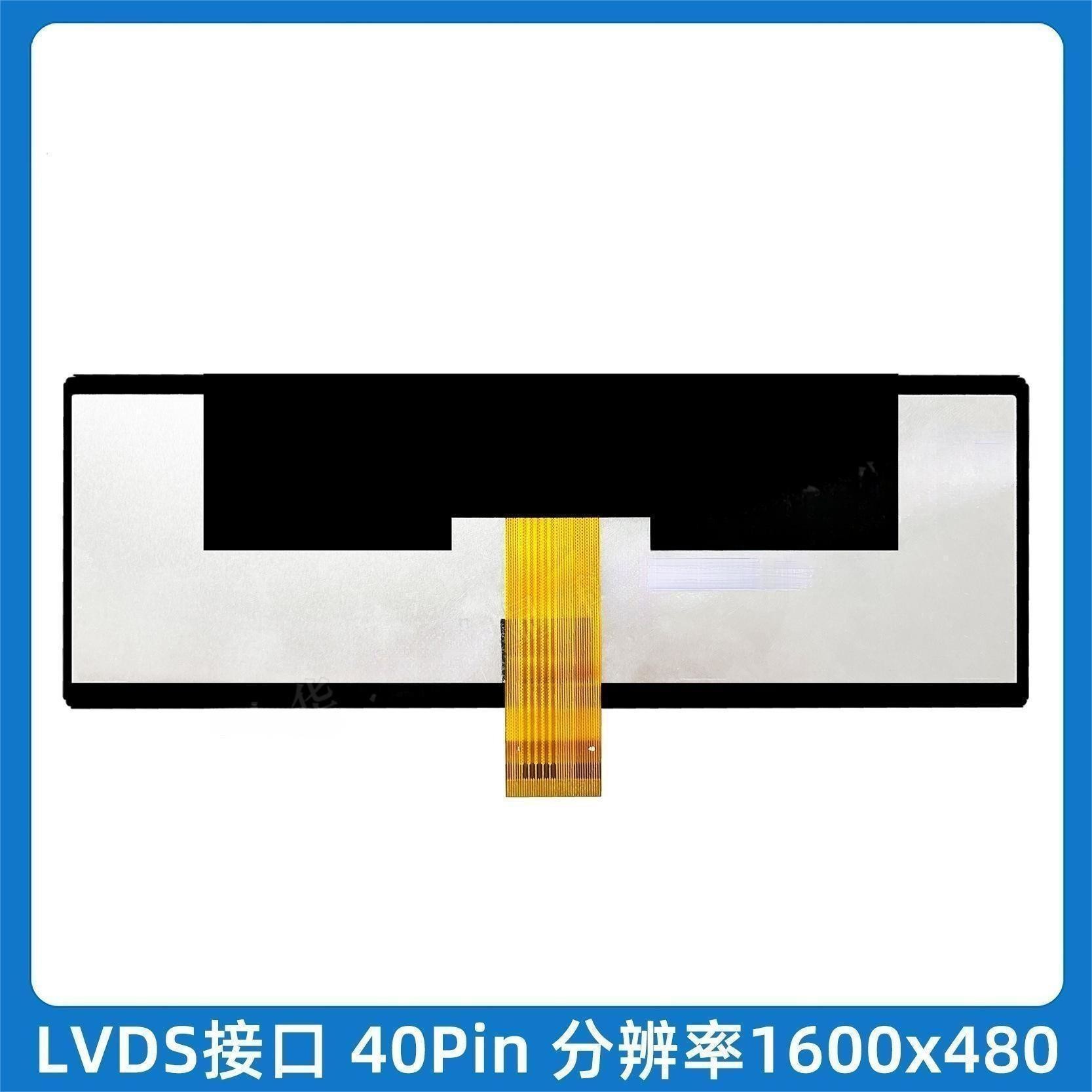

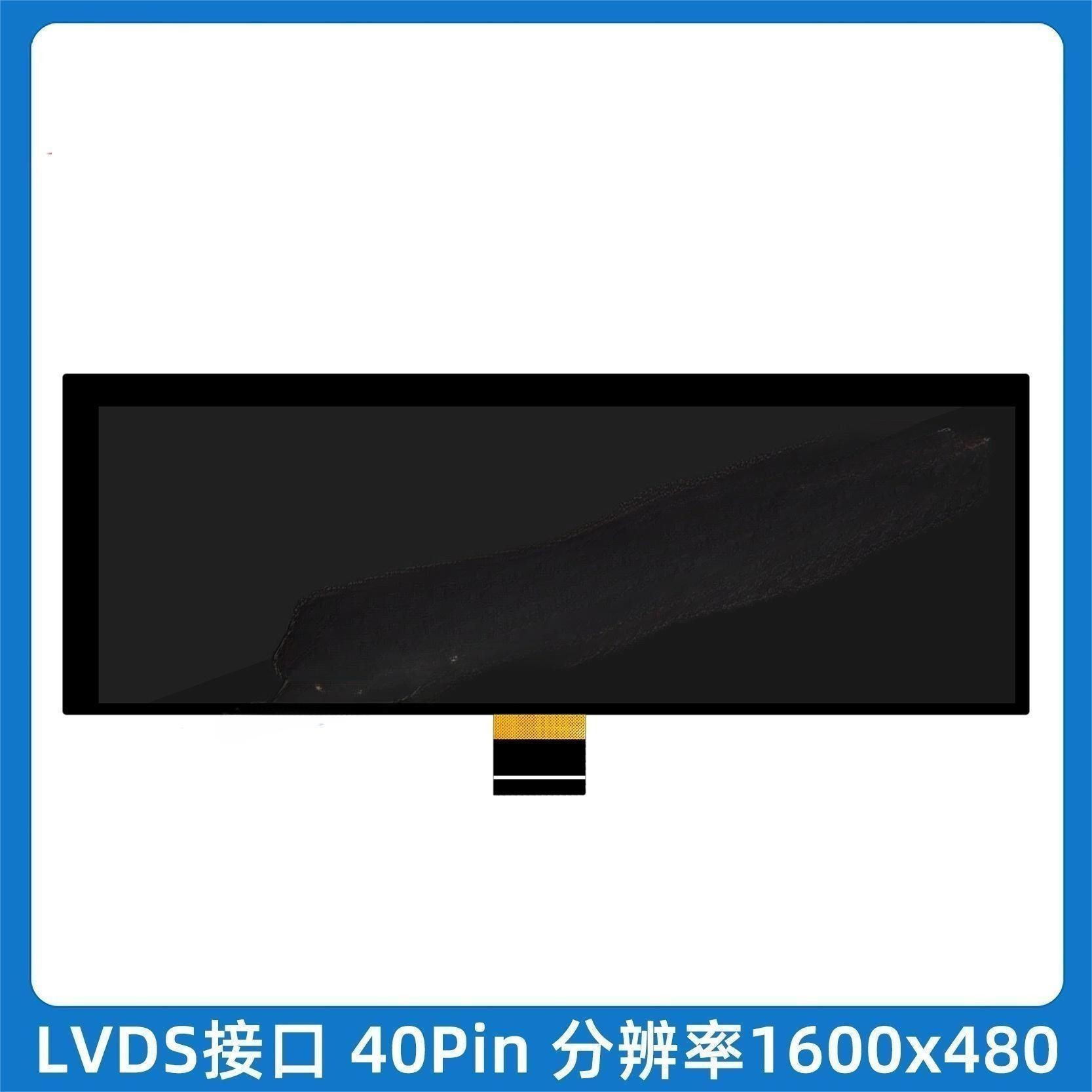

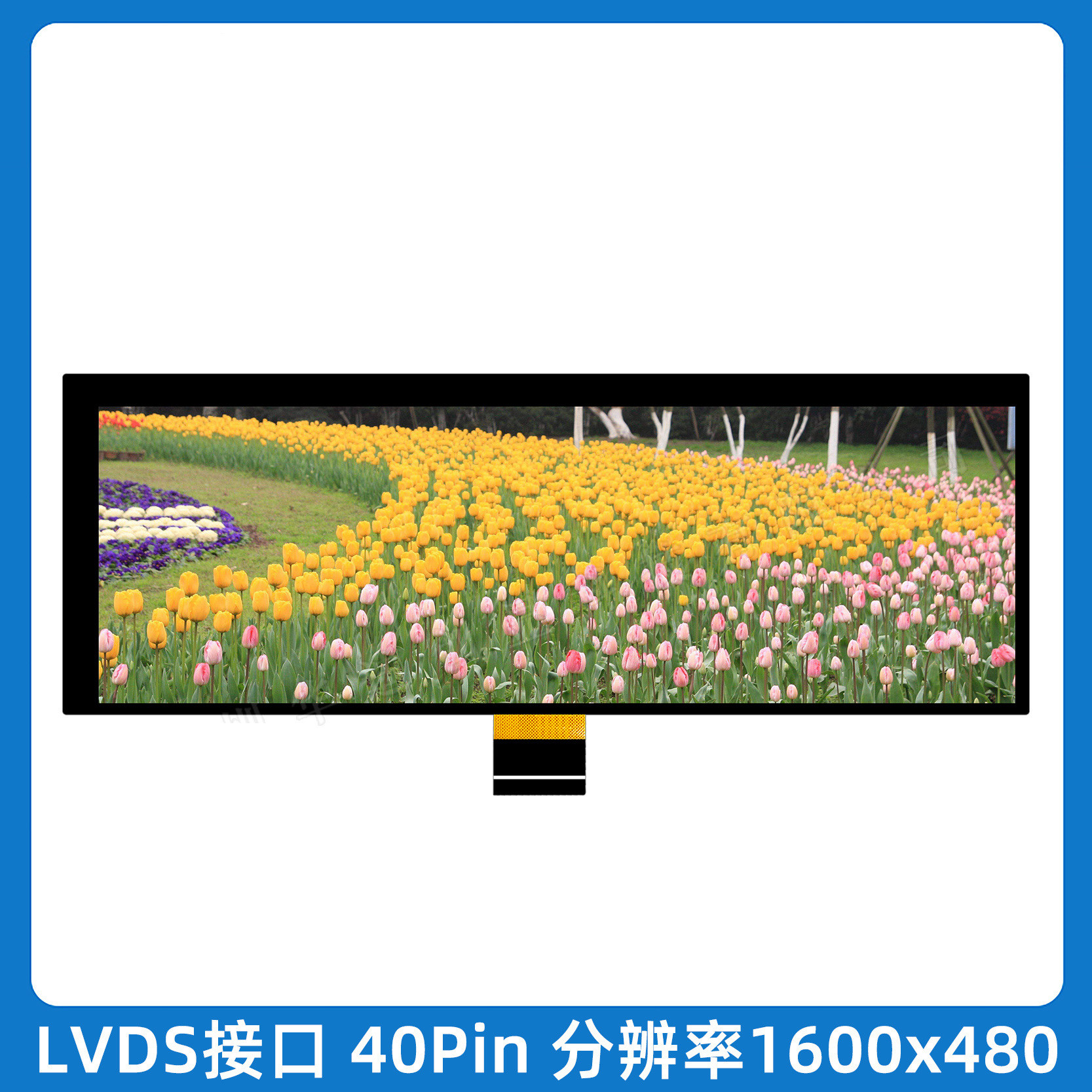

8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 08 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 18 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 2




C:Drawing

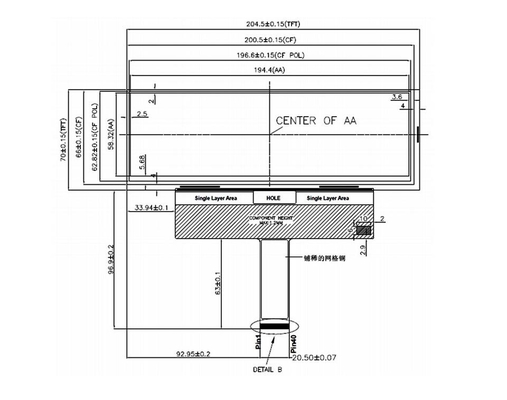

8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 3

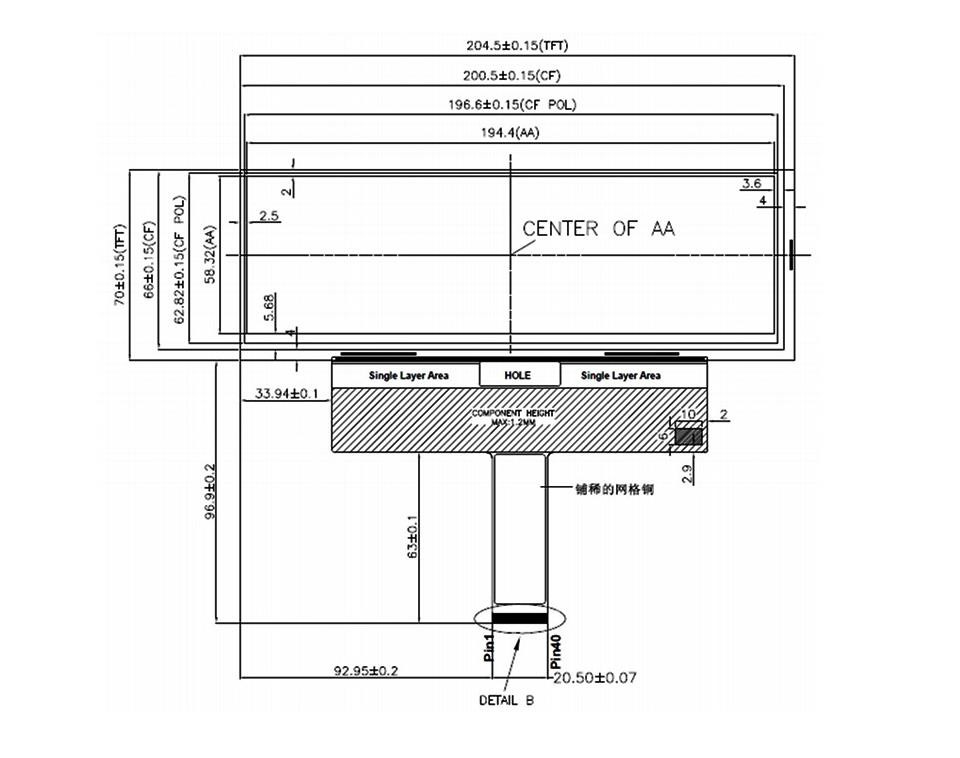

8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 4


D:TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 5



TFT structure  as below

8 Inch TFT LCD Display Module 1600X480 40pins LVDS Driving IC HX8249/HX8678 6
