3.13 Inch Touch BAR Tft Lcd , 379x960 Resolution , 12 PINS LVDS Interface IC ST7701S

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX031B001
Minimum Order Quantity 500pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Industrial LCD Module Name Tft Lcd Screen
Size 3.13" Resolution 379x960
Brightness 500cd/m2 Drive IC ST7701S
View Angle ALL Interface 12 PINS LVDS
High Light

3.13 Inch Touch BAR Tft Lcd

,

LVDS Interface BAR Touch Tft Lcd

,

12 PINS BAR Tft Lcd

Leave a Message
Product Description
ESHX031B001 is bar type IPS tft display and resolution is  379x960, 12 pins LVDS interface, driving IC ST7701S and View angle is all,



A:Product Parameter

Part No: ESHX031B001
Size TFT LCD 3.13 inch
Resolution 379x960
Active Area 28.99X74.02
Outline dimension 31.1X81.1X2.37
Interface 12 pins LVDS
View Angle ALL
Operating temperature -20~70
driving IC ST7701S

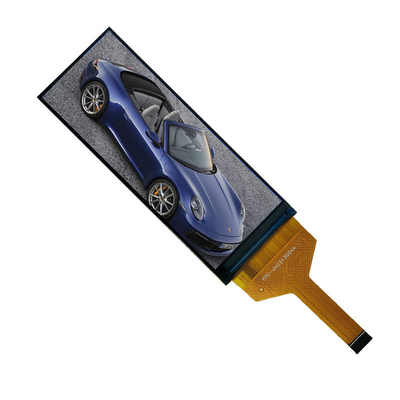

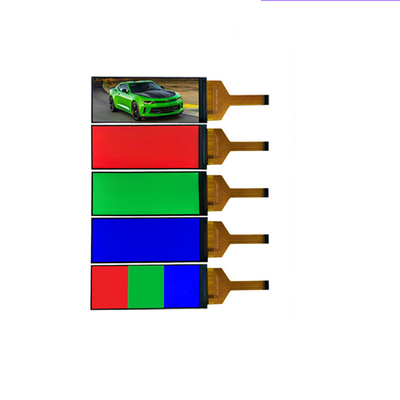

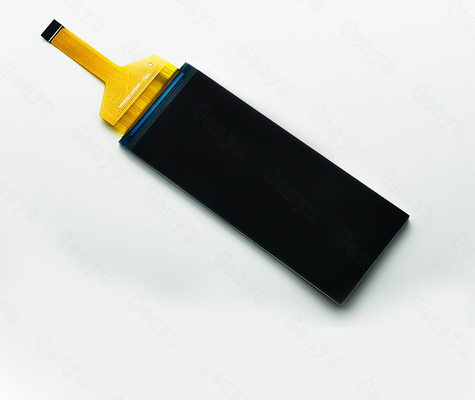

B:Product Picture
