3.4 Inch Bar Type TFT Display, 412x960 Resolution , 40 Pins RGB Interface 450cd/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ SO9001/IATF16949
Model Number ESHX34004C40
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Module Name LCD Display
Size 3.4 Resolution 412x960
Brightness 450 Cd/m2 Interface 40 PINS RGB
Driving IC ST7701S View Angle Free
High Light

RGB Interface Bar TFT Display

,

3.4 Inch Bar Type TFT Display

,

450cd/M2 Bar TFT Display

Leave a Message
Product Description

ESHX34004C40   is  3.4  inch bar  type TFT  display 412x960  resolution, 40 pins RGB. brightness is  450cd/m2 and view angle is free and Module Driver IC is ST7701S

A:Product Parameter

LCD Number
ESHX34004C40
product size3.4 inch bar type tft display
view angleFree
resolution412x960
interface40 PINS RGB
outline size36.54X85.87X1.9MM
active area33.99X79.2MM
Operating Temp:-20~70
brightness450c/d
driving ICST7701S

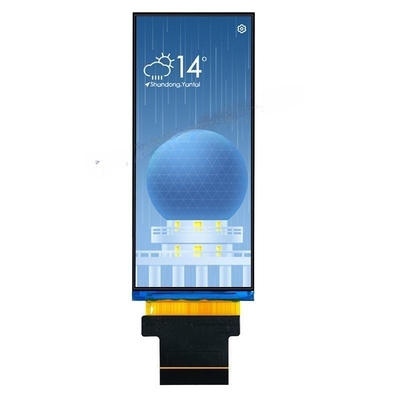

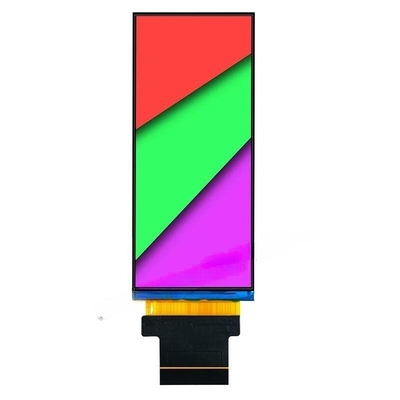

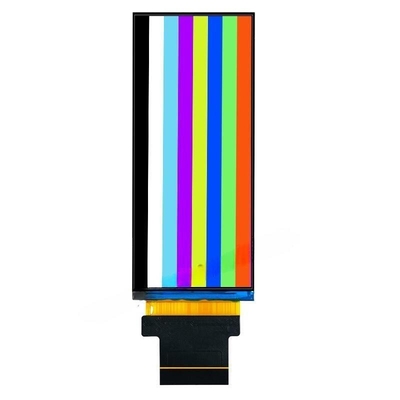

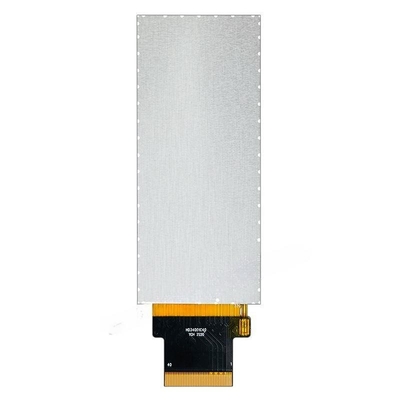

B:Product Picture
3.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 03.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 13.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 23.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 3

C:Drawing

3.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 4
3.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 5


D:TFT Product Knowledge

tft substrate input and CF substrate input flow chart as below

3.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 6

TFT structure as below
3.4  Inch Bar Type TFT Display,  412x960  Resolution , 40 Pins RGB Interface  450cd/M2 7

E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
Capacity
2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
LCD Producton
Capacity
4.59999Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70150300450450Unit:Thousand
piece/Day
Backlight Producton
Capacity
100200300500500Unit:Thousand
piece/Day
OLED Producton
Capacity
1020304050Unit:Thousand
piece/Day



G: Product Application

1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance

H: TFT Display Characteristics

1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.

2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.

3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.

4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.

5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.

6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.

7.Wide Applications:

I: Are there any drawbacks or limitations to using TFT displays?

1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
