Product Details
Display Technology IPS 7INCH BAR Tft Name Lcd Module
Size 7 " Resolution 280*1424
Brightness 620cd/m2 Drive IC ST7703
View Angle ALL Interface 40 PINS MIPI
Highlight

Touch Bar Tft Lcd

,

7 Inch Bar Lcd Tft

,

280x1424 Bar Lcd Tft
Leave a Message
Product Description
ESHX070HD0048B-C-B is a color active matrix Thin Film Transistor (TFT) Liquid Crystal Display (LCD)
that uses amorphous silicon(a-Si) TFT as a switching device. This model is composed of a single 7.0
inches transmissive type main TFT-LCD panel. The resolution of the panel is 280 x 1424 pixels and can display up to 16.7M color 1.2 Feature
-IPS type for main TFT-LCD panel,Mutual capacitive type touch 5 points.
-Structure CTP+COG+FPC+BL
-Full, Normal (Still), Partial, Sleep, Standby mode are available ESHX070HD0048B-C-B spec.pdf



A:Product Parameter

Part No: ESHX070HD0048B-C-B
Panel size  7 inch TFT
LCD type IPS
Module Size
59.8 x234.76 x 5.7
Display Area
33.6x170.88
Number of Dots 280*1424
View angle ALL
Module Driver IC ST7703 OR OTA7290B
CTP Driver IC GT911 OR CHSC5448
Interface Pins 40 PINS 24bit RGB
LED Numbers 16 LEDS
Luminance 620cd/m2
Operating Temp -10~+60
Storage Temp -20~+70
with or without TP CTP



B:Product Picture

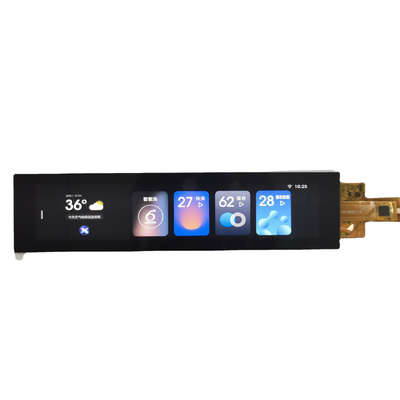

7 Inch Touch Bar Tft Lcd, 280x1424 40 Pins Mipi Interface, 620 Cd/M2 0

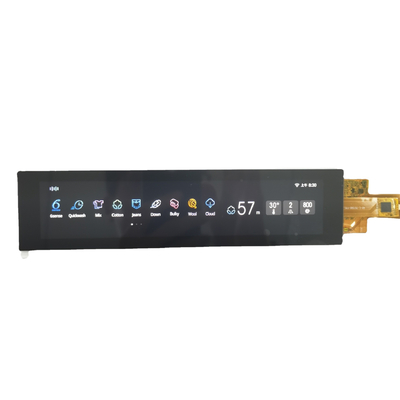

7 Inch Touch Bar Tft Lcd, 280x1424 40 Pins Mipi Interface, 620 Cd/M2 1

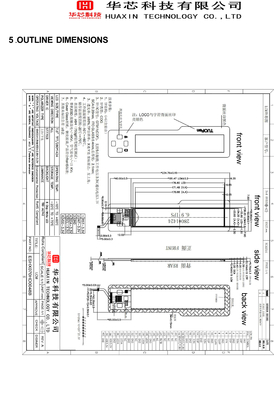

C: Drawing
