STN Mono 24x2 LCD Display Blue Yellow Black Backlight 6h View Angle

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX2402A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 500K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LCD Display Type STN Lcd Name Character Lcd
Display Mode STN/(Y-G)POSITIVE/TRANSFLECTIVE Working Voltage 5V/+3.3V
Interface 16 Pin Paralle ASSEMBLY TYPE COB
High Light

STN 24x2 lcd display

,

mono 24x2 lcd display

,

24x2 blue lcd display

Leave a Message
Product Description

ESHX2402A  is customized  24x2 character  LCD display, driving method 1/5bias 1/16 duty, lcd display  type is STN/(Y-G)  and display mode is POSITIVE/TRANSFLECTIVE  , view angle is 6:00

STN 24x2 character mono LCD module, display color BLUE/yellow/black, View angle 6:00 CLOCK



A:Product Parameter

LCD Number
ESHX2402A
display mode STN/(Y-G)POSITIVE/TRANSFLECTIVE
display content 24X2 characters
View angle 6:00 CLOCK
MODULE SIZE(MM) 118.0mm×36.0mm
active area(mm) 94.5mm×17.8mm
working voltage 5V/+3.3V
Operating Temp: -20~70
storage temp -30~80
drive IC SPLC780D
display color BLUE/yellow/black
interface 16 pin paralle
ASSEMBLY TYPE COB


B:Product Picture

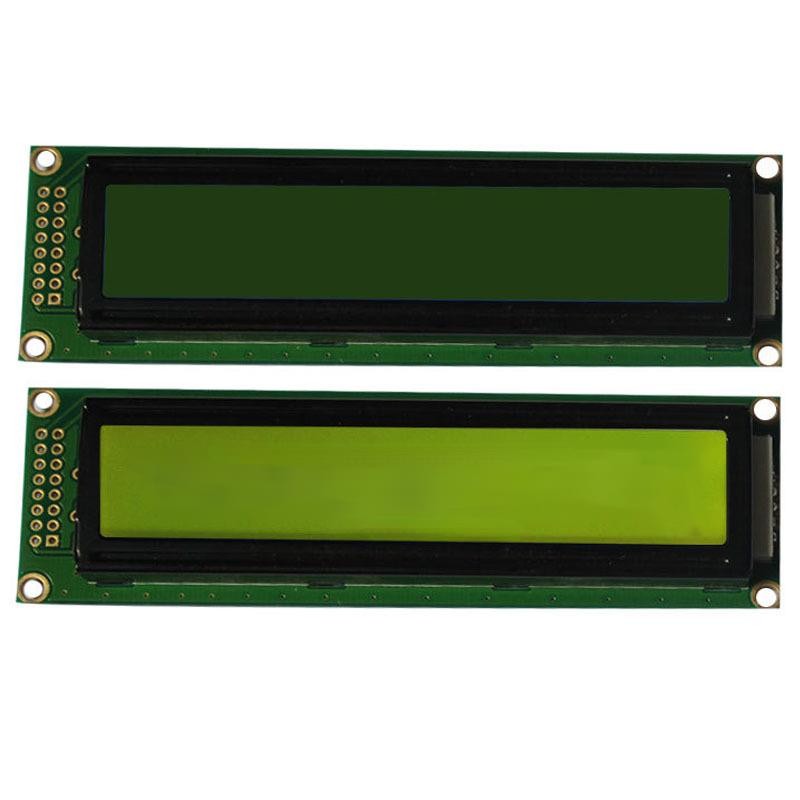

STN Mono 24x2 LCD Display Blue Yellow Black Backlight 6h View Angle 0

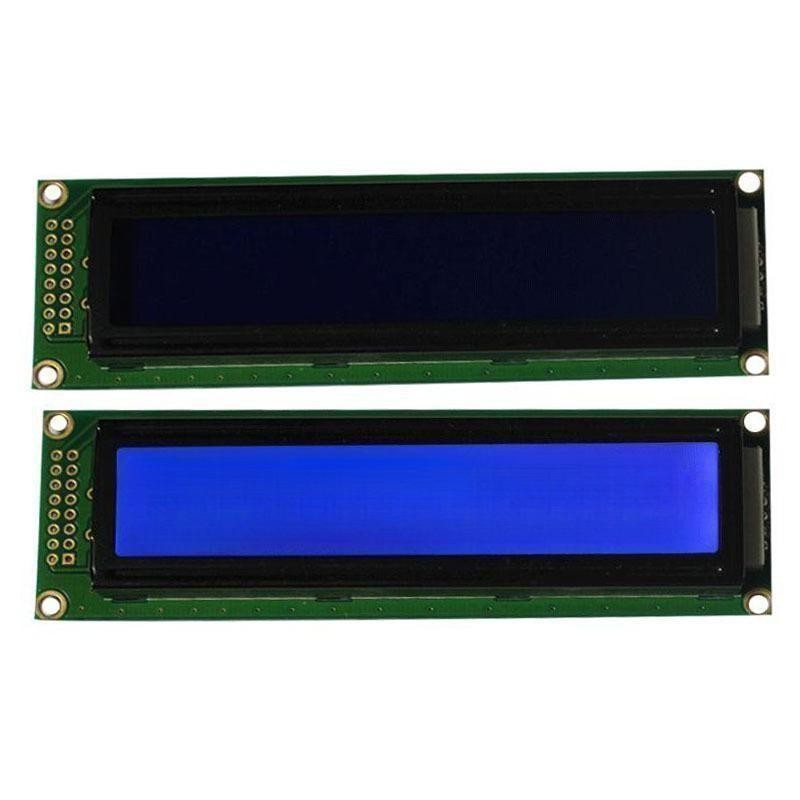

STN Mono 24x2 LCD Display Blue Yellow Black Backlight 6h View Angle 1

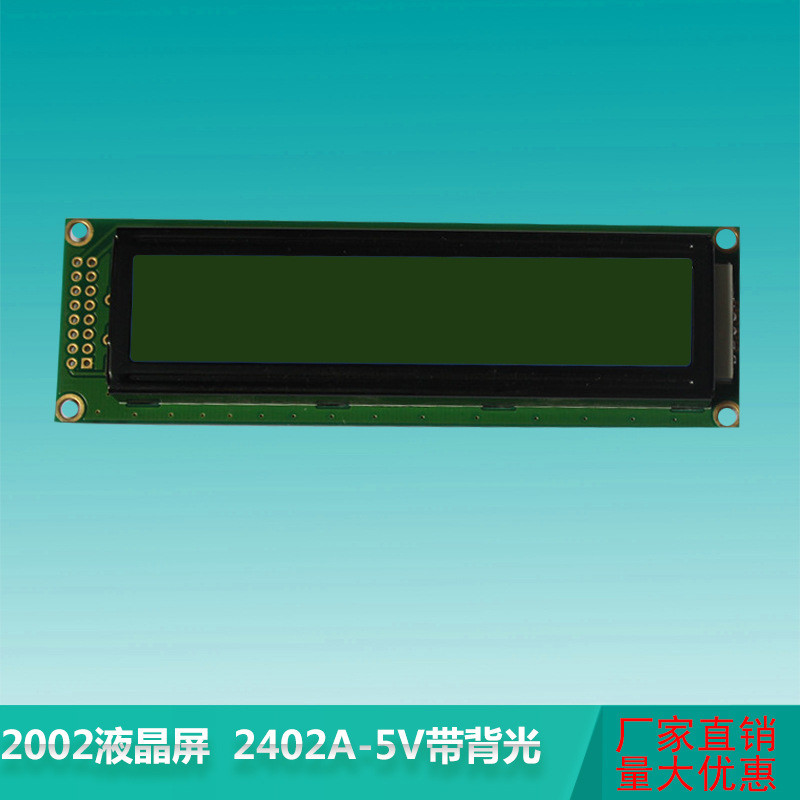

STN Mono 24x2 LCD Display Blue Yellow Black Backlight 6h View Angle 2
