7 inch Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX700066S0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology Tft Display Name 7 Inch TFT
Size 7" Resolution 280X1424
Brightness 800 Cd/m2 Interface 30 PINS MIPI
Drive IC OTA7290B View Angle Free View Angle
Leave a Message
Product Description

ESHX700066S0 is 7  inch Bar Type TFT display module   , 280X1424 Resolution, 30 PINS MIPI  interface, brightness is 800cd/m2 TFT module,Module Driver IC is OTA7290B   and view angle is free


A. Product Parameter


ITEM Specification
Model Number ESHX700066S0
size 7
LCD Type Normally Black
Drive element TFT active matrix
Number of pixels 280*3RGB(H)X1424(V)
Pixel arrangement RGB stripe
Pixel Pitch (W*H) 0.12(H) X 0.12(V)
Active area 33.6(H) x 170.88(V)
Mechanical OutlineSize(W*H*T) 38.2(W) ×181.47(H) ×3.45(T)
Viewing direction ALL O’CLOCK
LCM Driver IC OTA7290B
LCM interface MIPI Interface
Lcm pin count 30
Backlight leds 8
Backlight current 200
工作温度/operating temperature -20~70
储存温度storage temperature -30~80
Luminance 800

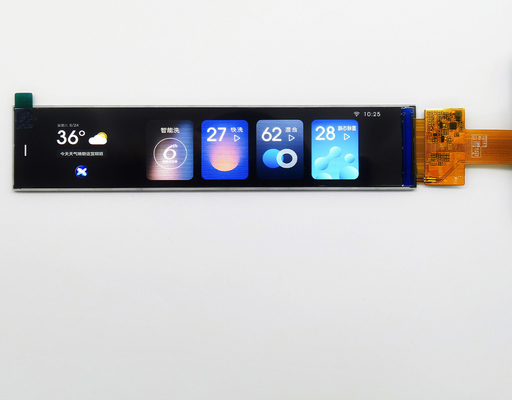

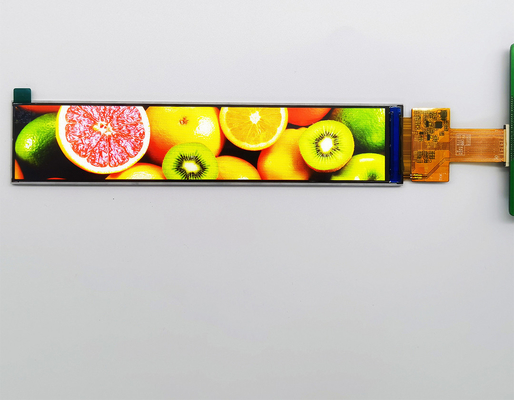

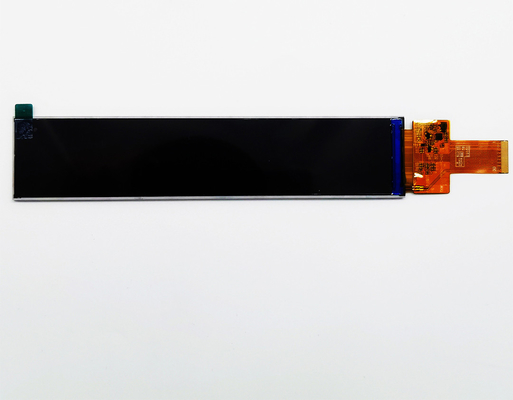

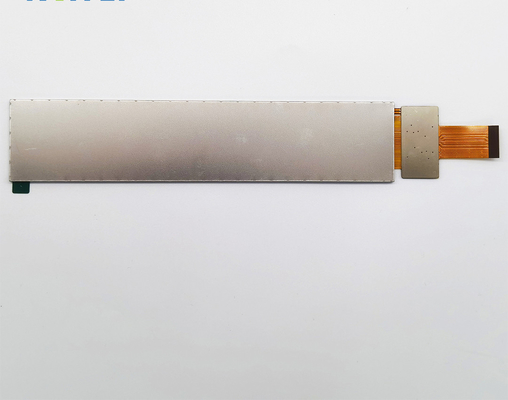

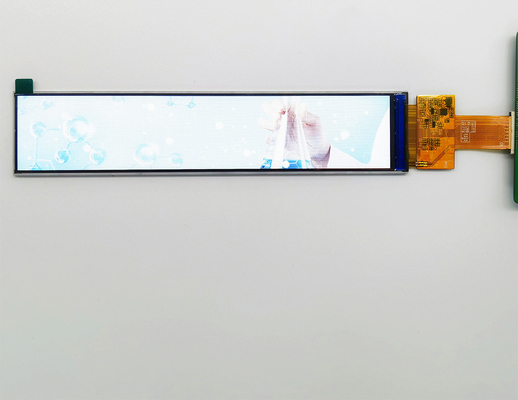

B.Product Picture

7 inch  Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2 0

7 inch  Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2 1

7 inch  Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2 2



C. Drawing


D. TFT product  knowledge

tft substrate input and CF substrate input flow chart as below

7 inch  Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2 3


TFT structure  as below

7 inch  Bar Type TFT LCD , 280X1424 Resolution, 30 PINS mipi interface, 800cd/m2 4


E: company information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/ ISO13485/
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance
