3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface, 350cd/M2 ST7701S Driving IC

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX300059S0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Screen Name TFT Lcd
Size 2.99 " Resolution 268x800
Brightness 350cd/m2 Interface 40 PINS RGB
Driving IC ST7701S View Angle Free
High Light

3.0 inch tft bar

,

RGB tft bar

,

268x800 lcd panel tft

Leave a Message
Product Description

ESHX300059S0  is 2.99  inch bar  type TFT  LCD,  268x800 resolution, 40 pins RGB interface. brightness is  350cd/m2 and view angle is free and Module Driver IC is ST7701S



A:Product Parameter

ITEM Specification
Model Number ESHX300059S0
尺寸/size 2.99
LCD Type Normally Black
Drive element TFT active matrix
Number of pixels 268*3RGB(H)X800(V)
Pixel arrangement RGB stripe
Pixel Pitch (W*H) 0.0235*0.0705
Active area 24.12*72
Mechanical OutlineSize(W*H*T) 26.52*78.75*1.65
Viewing direction ALL O’CLOCK
IC/LCM Driver IC ST7701S
LCM interface RGB BIT Interface
Lcm pin n count 40
Backlight leds 6
Backlight current 20
Backligh voltage 18
operating temperature -20~70
storage temperature -30~80
Luminance 350



B: Product Picture

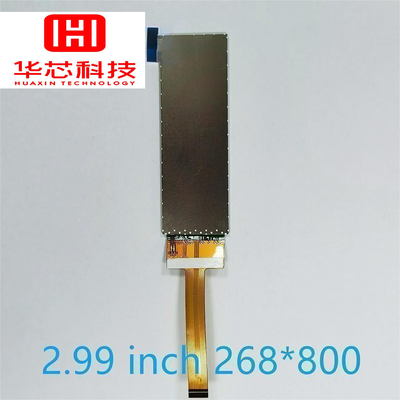

3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface,  350cd/M2 ST7701S Driving IC 0

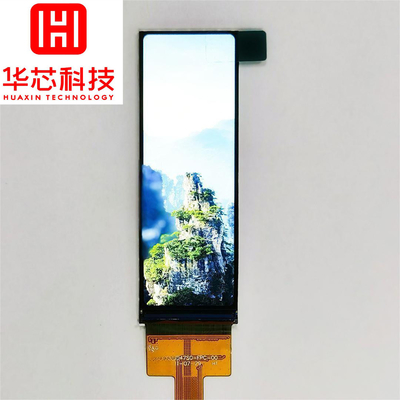

3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface,  350cd/M2 ST7701S Driving IC 1

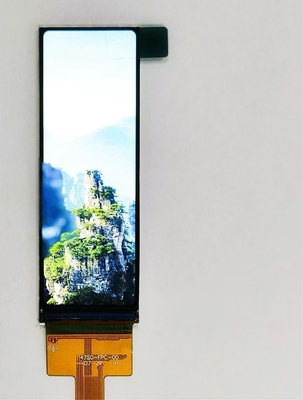

3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface,  350cd/M2 ST7701S Driving IC 2

C: Drawing

--------------------------------





D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface,  350cd/M2 ST7701S Driving IC 3



TFT structure as below

3.0 Inch TFT Bar LCD Panel , 268x800 40 Pins RGB Interface,  350cd/M2 ST7701S Driving IC 4
