6.86 Inch Bar Type TFT Display, 480x1280 40 Pins MIPI Interface , 450cd/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX068BZCA-01
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 200K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Tft LCD Name LCD Display
Size 6.86" Resolution 480x1280
Brightness 450cd/m2 Interface 40 Pins MIPI
Driving IC ICN9706 View Angle Free
High Light

6.86 inch Bar Type TFT

,

Bar Type TFT 480x1280

,

40pins mipi tft

Leave a Message
Product Description

ESHX068BZCA-01 is 6.86  inch bar  type TFT  display 480x1280 resolution, 40 pins MIPI  interface. brightness is  450cd/m2 and view angle is free and Module Driver IC is ICN9706



A:Product Parameter

Part No: ESHX068BZCA-01
Panel size 6.86 inch TFT
LCD type IPS
Module Size 66.70*181.20*4.40
Display Area 60.22*160.59
Number of Dots 480x1280
View angle ALL
Module Driver IC ICN9706
CTP Driver IC
Interface Pins 40 pins MIPI
LED Numbers 12leds
Luminance 450cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP



B: Product Picture

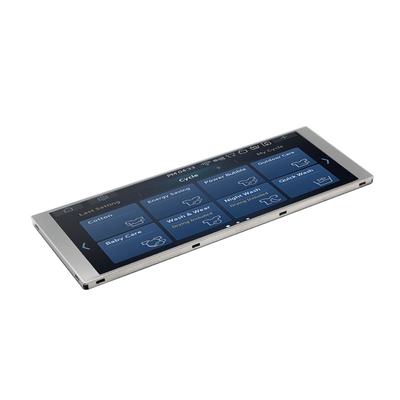

6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 0

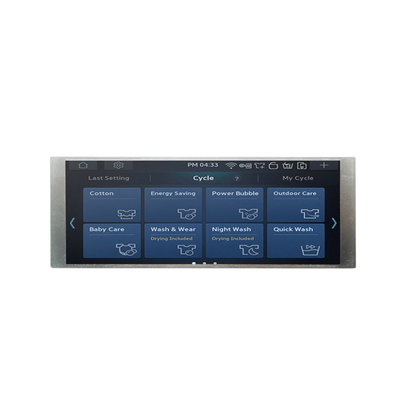

6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 1

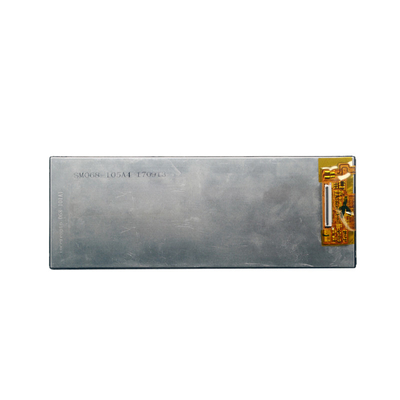

6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 2

C: Drawing

6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 3



D:TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 4



TFT structure as below

6.86 Inch Bar Type TFT Display,  480x1280 40 Pins MIPI Interface , 450cd/M2 5
