Product Details
Display Technology IPS Tft LCD Name LCD Display
Size 1.9" Resolution 170X320
Brightness 500cd/m2 Interface MCU 8 BIT
Driving IC ST7789V View Angle Free
Highlight

1.9 inch bar TFT

,

bar TFT 170x320

,

display lcd tft 30pins
Leave a Message
Product Description

ESHX190002B0 is 1.9  inch bar  type TFT  display 170X320resolution, 30 pins MCU interface. brightness is  500cd/m2 and view angle is free and apply for Intelligent point reading translation pen, Digital electronics,household electrical appliances,Handheld PDA,electronic cigarette ect



A:Product Parameter

ITEM specification
Model Number ESHX190002B0
size 1.9 inch TFT
LCD Type Normally Black
Drive element TFT active matrix
Number of pixels 170*3RGB(H)X320(V)
Pixel arrangement RGB stripe
Pixel Pitch (W*H) 0.1335*0.1335
Active area 22.7(H) * 42.72(V)
OutlineSize(W*H*T) 25.8*49.72*1.43
Viewing direction ALL O’CLOCK
LCM Driver IC ST7789V
LCM interface MCU 8 BIT Interface
PIN number 30
LED number 4
operating temperature -20+70
storage temperature -30+80
Luminance 500 cd/m2



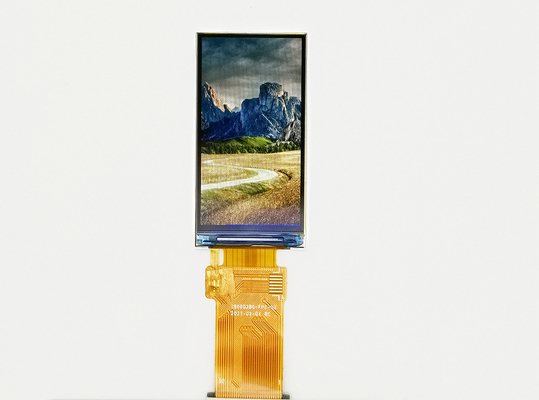

B:Product Picture

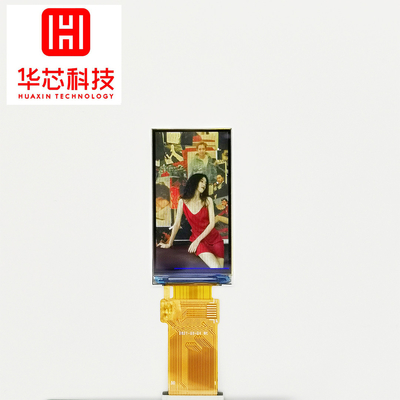

1.9 Inch Bar TFT, 170x320 30 Pins MCU Interface , 500cd/M2 Driving IC ST7789V 0

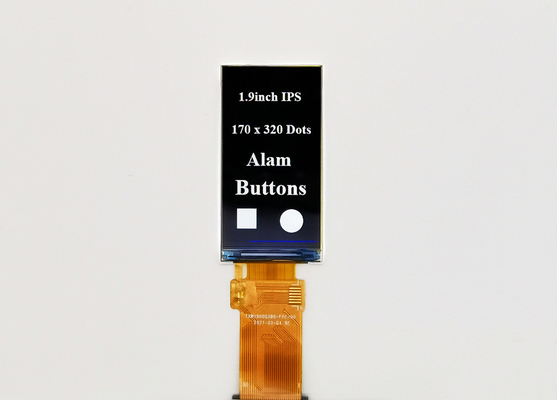

1.9 Inch Bar TFT, 170x320 30 Pins MCU Interface , 500cd/M2 Driving IC ST7789V 1
