1.47 Inch Round TFT Display Module 360x360 Resolution 3MIPI/QSPI/8BIT/SRGB Interface 400CD/M2
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO13485/ISO9001/IATF16949 |
| Model Number | ESHX0147Y003T003 |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Lcd Module | Name | Round Lcd Module |
|---|---|---|---|
| Size | 1.47" | Resolution | 360*360 |
| Brightness | 400cd/m2 | Interface | MIPI/QSPI/8BIT/SRGB |
| Drive IC | ST77916 | View Angle | Free View Angle |
| Highlight | 360x360 Round TFT Display,1.47 inch Round TFT Display,3MIPI Round TFT Display |
||
Product Description
ESHX0147Y003T003 is 1.47 inch round tft display, 360*360 dots, 400C/D brightness, MIPI/QSPI/8BIT/SRGB interface, driving IC ST77916
A. Product Parameter
| Part No: | ESHX0147Y003T003 |
| display Mode | 1.47 inch round TFT display |
| outline size(mm) | 39.24x41.01x1.6 |
| AA size(mm) | 36.94x36.94 |
| Display dots | 360*360 |
| view Angle | all |
| Brightness | 400C/D |
| interface | MIPI/QSPI/8BIT/SRGB |
| Driving IC | ST77916 |
| working temp | -20~70 |
| storage temp | -30~80 |

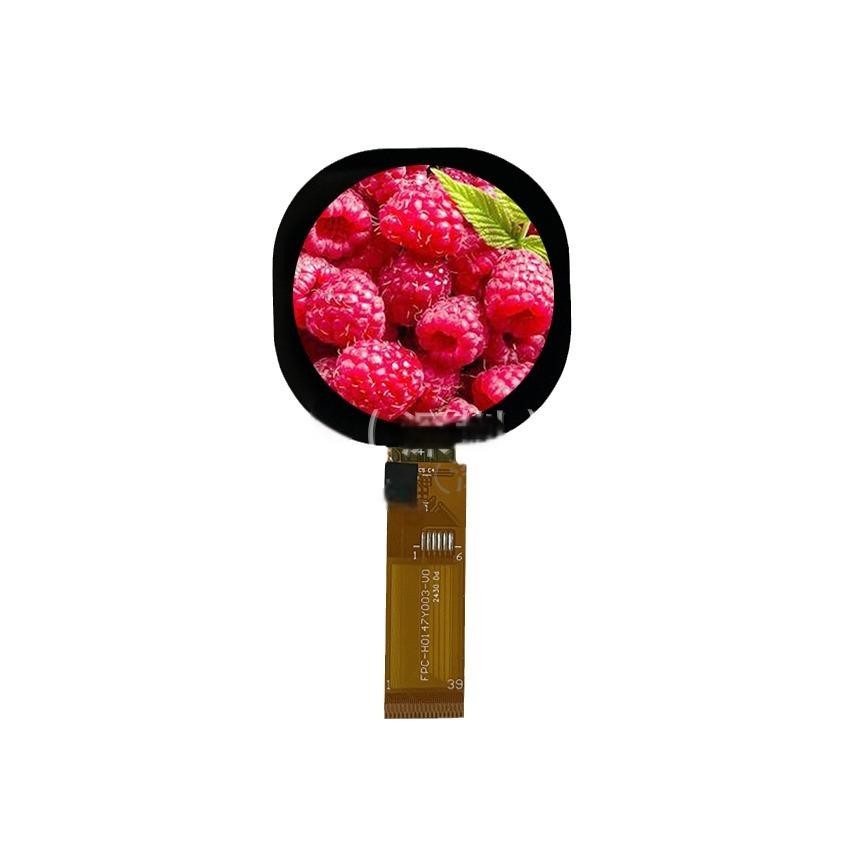

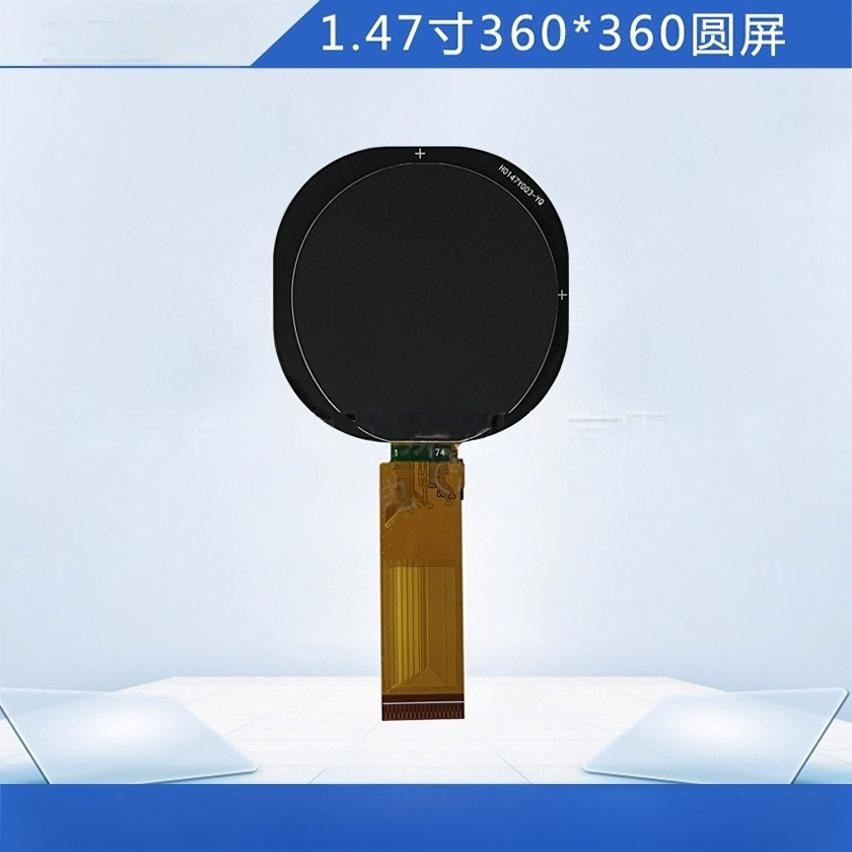

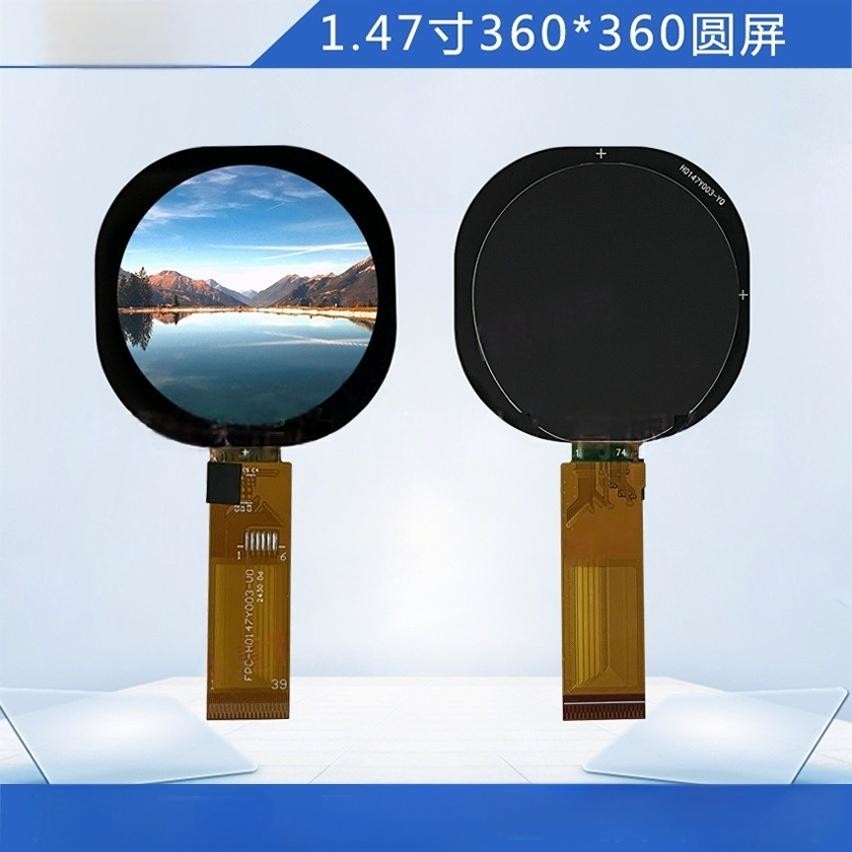

B.Product Picture

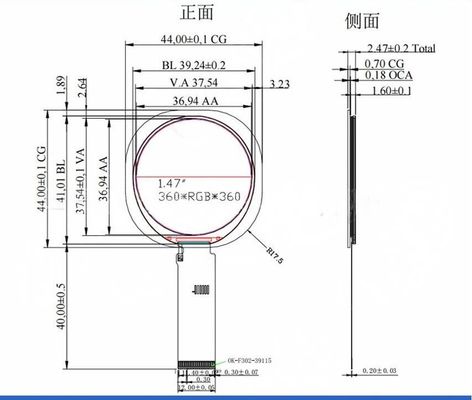

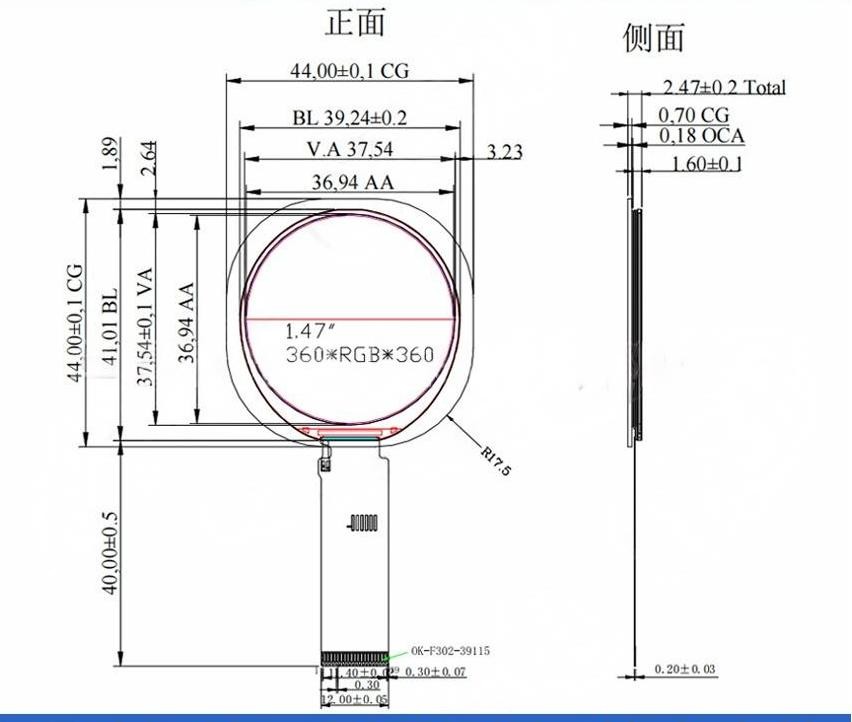

C. Drawing
D. TFT product knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: company information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/ ISO13485/
2.ISO9001/IATF16949
3.SGS of LCD module
Company introduction
LCD main process
LCM process
Huaxin Key measurement machine
our Key RA equipment
product application
Huaxin certificates
our main clients
Huaxin Exhibition
Qulaity control
