3.19 Inch AMOLED Display Module with 500nit Brightness and 262RGBx928 Resolution QSPI Interface
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX319ON1707 |
| Document | HX319ON1707 drawing.pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 50K per month |
Product Details
| Display Technology | Transmissive OLED | Name | Amoled |
|---|---|---|---|
| Size | 3.19 " | Resolution | 262(RGB)x928 |
| Brightness | 500cd/m² | Interface | QSPI |
| Driving IC | CO6300 | Contrast Ratio | 10000 |
| PPI | 302 | ||
| Highlight | 3.19 inch AMOLED display module,AMOLED display module with 500nit brightness,AMOLED display module QSPI interface |
||
Product Description
3.19 Inch AMOLED Display Module with 500nit Brightness and 262RGBx928 Resolution QSPI Interface
Product Specifications
| Part Number | HX319ON1707 |
| Display Technology | AMOLED display |
| Diagonal Screen Size | 3.19 inch AMOLED |
| Active Area (mm) | 22.008(H) × 77.952(V) |
| Panel Size (mm) | 23.808(H) × 81.052(V) × 0.93(T) |
| Brightness | 500 cd/m² |
| Resolution | 262(RGB) × 928 |
| Interface | QSPI |
| View Angle | 85° |
| Driving IC | CO6300 |
| Contrast Ratio | 10000:1 |

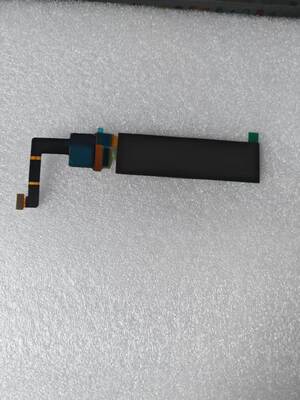

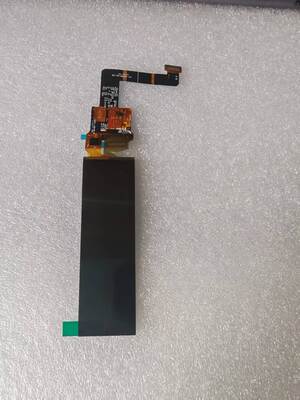

Product Images

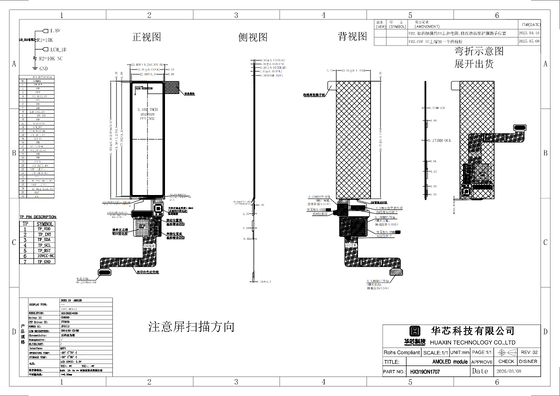

Technical Drawing & Pin Definition
OLED Technology Overview
OLED Advantages:
- Lighter and thinner than LCD displays
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages:
- Higher cost compared to LCD and TFT
- Shorter lifespan than LCD and TFT
Company Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Registered Capital: 20 Million
Current Staff: 500+
R&D Team: 10%
Quality Control: 15%
Location: Hubei, Enshi
Founded: 2009
Registered Capital: 20 Million
Current Staff: 500+
R&D Team: 10%
Quality Control: 15%
Company Advantages:
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency and quality consistency
- Experienced engineering team with 20+ years in LCD field
- Custom product design capabilities
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Product Portfolio:
- LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM: COB, TBA, COG, TP, LED backlight and other series
- TFT, backlight, OLED displays
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand Pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand Pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand Pieces/Day |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Watches & audio devices
- Collimators & navigators
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Color Accuracy and Vibrancy
- Wide Viewing Angles
- Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
Power Consumption:
- AMOLED displays consume power per pixel - dark pixels use minimal power while bright pixels use more
- LCD and LED displays require constant backlight regardless of content
Content Dependency:
- AMOLED is more efficient for dark content as pixels can be turned off
- LCD/LED displays consume constant power regardless of content
Brightness Control:
- AMOLED can dynamically adjust pixel brightness for better efficiency
- LCD/LED typically have fixed backlight brightness
Display Size:
- AMOLED more efficient for smaller displays as power scales with pixels
- Larger LCD/LED displays require more powerful backlights
