1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope

  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
  • 1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHXRT0548001A
Minimum Order Quantity 1000
Price negotiable
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month
Product Details
Driving IC CO5300 Interface MIPI/QSPI
Resolution 390RGB*390 Name 1.2 Inch
Brightness 700cd/M2 Size 1.2"
Display Technology AMOLED Display,transmissive OLED Touch Panel IC CST816D
Application For Endoscope Or Infrared Imager Etc View Angle All(IPS)
Active Area Diameter 30.42 Mm Outline Size 33.24*33.75*0.7mm
Highlight

1.2 Inch AMOLED Display Module

,

700 Nits Brightness Circular AMOLED Display

,

MIPI/QSPI Interface Touch Screen AMOLED Display
Leave a Message
Product Description
1.2 Inch Circular AMOLED display touch screen,transmissive OLED,390RGB*390 dots,MIPI/QSPI interface,700 nits brightness,CO5300 driver,for infrared imager or endoscope application etc

Product Parameters
1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope

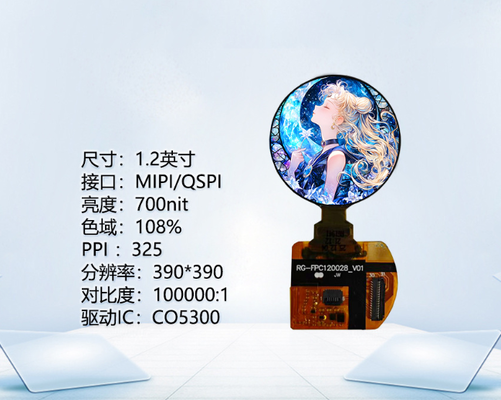

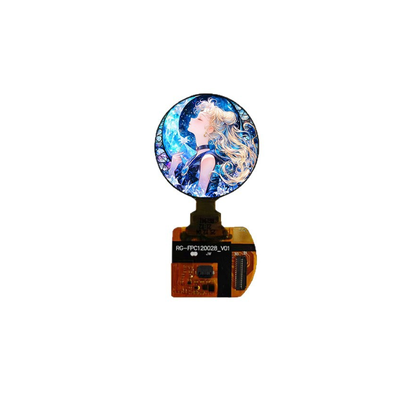

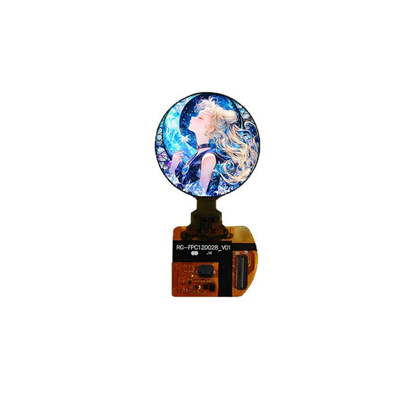

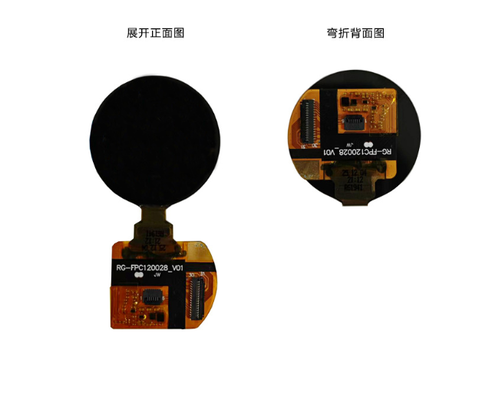

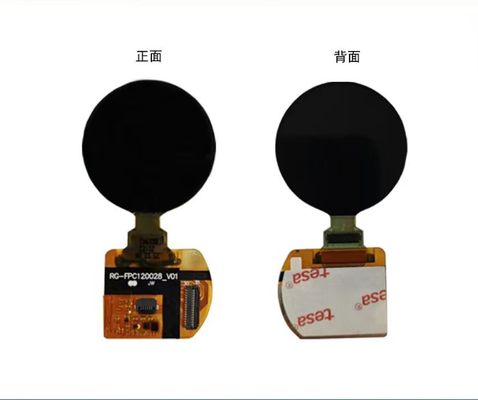

Product Images
1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope
1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope

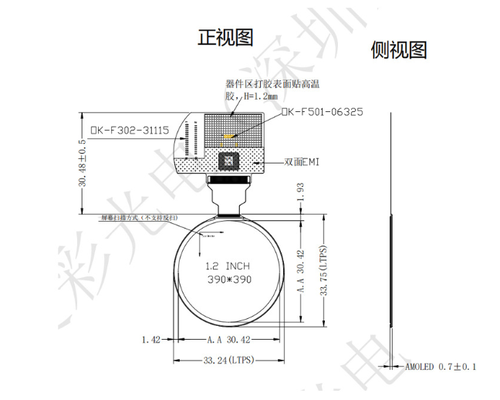

Technical Drawing
1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope

1.2 Inch Circular AMOLED Display Module with 700 Nits Brightness and MIPI/QSPI Interface for Infrared Imager or Endoscope


OLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: LCD, LCM, TFT, backlight, OLED R&D and production
  • Registered capital: 20 million
  • Employees: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & communication devices
  • Collimators & navigators
AMOLED Display Characteristics
  • Self-emissive pixels for true blacks
  • Exceptional contrast ratio
  • Superior color accuracy and vibrancy
  • Wide viewing angles
  • Enhanced power efficiency
  • Ultra-thin and flexible design options
  • Fast response time
Power Efficiency Comparison
AMOLED vs Other Display Technologies
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
  • Brightness Control: AMOLED can adjust pixel brightness dynamically for better efficiency
  • Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count
