2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface

  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
  • 2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX0290NQ01
Document HX00973BW-SPEC.pdf
Minimum Order Quantity 1000
Price US$2.6
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology E-ink Epaper Display Name 2.9" E-PAPER
Size 2.9" Resolution 128x296
Display Color White Background And Black Character View Angle 180°
Interface 3 Wire/4wire SPI
Leave a Message
Product Description

HX0290NQ01 is Dot-matrix E-ink Epaper Display with SPI interface and a reference system design. The 2.9inch active area contains 128×296 pixels. The module is a IPS LCD Module.Which can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System,smart card decks,industrial instruments,electronic roll labels.

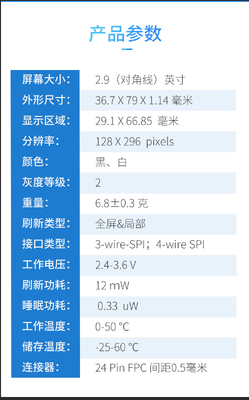

A:Product Parameters

Part NO. HX0290NQ01
Display  Type E-paper module
Diagonal Screen Size 2.9 inch E-paper
Background color white background and black character
Active Area (mm) 29.1×66.85
Panel size(mm) 36.7(H)×79 ×1.14
Resolution 128x296
Interface  3wire/4wire SPI
View angle 180°
Connector 24Pin FPC Spacing 0.5mm



B:Technical Drawing



2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface 0

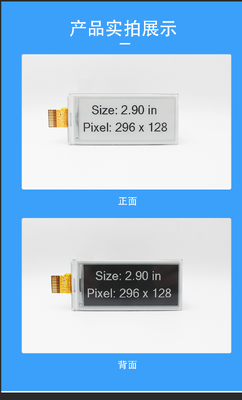

C: Product Picture



2.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface 12.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface 22.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface 32.9 inch E-paper Display with 128x296 Resolution and 3-wire SPI/4-wire SPI Interface 4













D: E-paper Product Knowledge


  • E- paper  Advantages:
  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight



E-paper  Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home

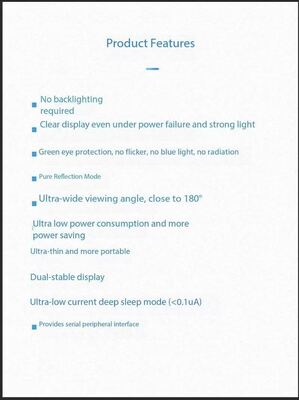

H: E-paper display Characteristics



1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate



I:Are there any drawbacks to using e-paper displays



1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
