2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface

  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
  • 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX25HD002A
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name FHD Display
Size 2.51 " Resolution 440*696
Brightness 850cd/m2 View Angle Free
Interface MIPI
Highlight

2.51 inch TFT Color Display

,

440*696 Resolution TFT Display Module

,

850 c/d Brightness LCD Display
Leave a Message
Product Description
HX25HD002A - 2.51 inch TFT Color Display with RTP
High-performance 2.51-inch TFT display module featuring 440×696 resolution, MIPI interface, 850 cd/m² brightness, free viewing angle, and integrated resistive touch panel (RTP).
Product Specifications
Part Number HX25HD002A
Display Technology TFT Display
Diagonal Screen Size 2.51 inch
Active Area 33.92 × 53.66 mm
Panel Size 41.37 × 63.3 × 2.81 mm
Brightness 850 cd/m²
Resolution 440 × 696 pixels
Interface MIPI
Viewing Angle All Directions
Driving IC ST7701SN-G5-1
Touch Panel Resistive Touch Panel (RTP)

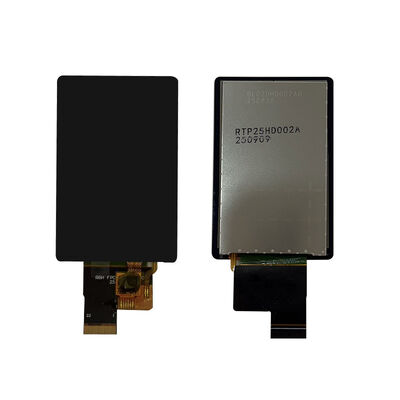

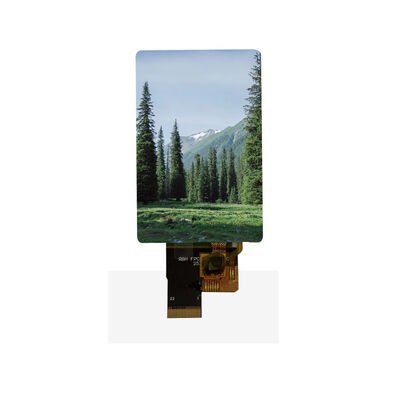

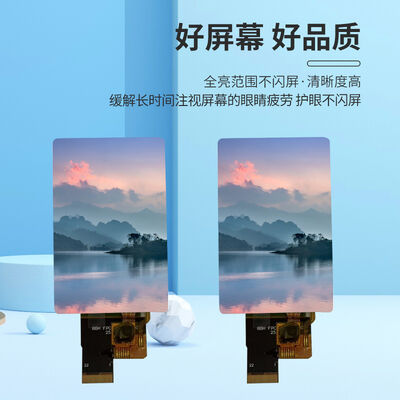

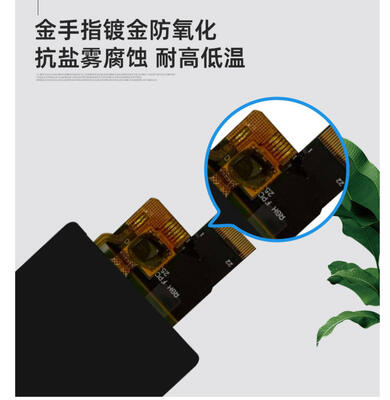

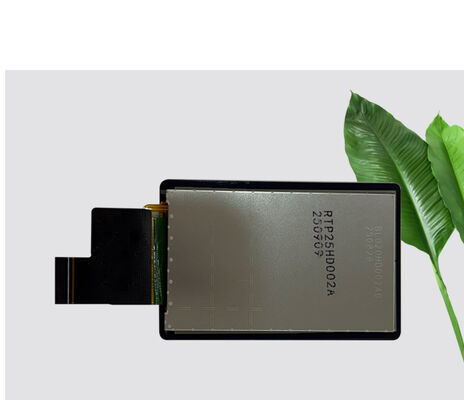

Product Images
2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 0 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 1 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 2 2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 3
TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 4
TFT display structure diagram:
2.51 inch TFT Color Display with 440*696 Resolution and 850 c/d Brightness MIPI Interface 5
TFT Display Advantages
Image Quality
Excellent image quality with high resolution, sharpness, and superior color accuracy.
Response Time
Fast response times for quick pixel switching and smooth motion display.
Viewing Angles
Wide viewing angles with minimal color shifts from different positions.
Energy Efficiency
Energy-efficient operation compared to alternative display technologies.
Size Flexibility
Available in various sizes from small handheld devices to large panels.
Backlighting
LED backlighting system for bright, uniform screen illumination.
TFT Display Considerations
  • Limited viewing angles compared to some alternative technologies
  • Limited contrast ratio in certain lighting conditions
  • Backlighting requirements affect power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form factors
  • Limited color gamut compared to premium display technologies
Applications
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered Capital: 20 Million | Employees: 500+
R&D Team: 10% | Quality Control: 15%
Company Certifications
  • ISO 14001 Environmental Management
  • ISO 9001 / IATF 16949 Quality Management
  • SGS Certified LCD Modules
Manufacturing Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Product Portfolio
LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
LCM: COB, TBA, COG, TP, LED backlight and other series
Production Capacity
Product Type 2021 2022 2023 2024 2025 Units
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
