6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications

  • 6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications
  • 6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications
  • 6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications
  • 6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications
  • 6.4 inch TFT display module with 1024x768 resolution and LVDS interface for vehicle applications
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HX064X00-B00
Document 6.4.pdf
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology FHD Display Name TFT Color Display
Size 6.4" Resolution 1024x768
View Angle Free View Angle Interface LVDS
Driving IC GH7013
Highlight

6.4 inch TFT display module

,

1024x768 resolution TFT LCD display

,

LVDS interface TFT screen
Leave a Message
Product Description
6.4 inch TFT Display Module for Vehicle Applications
Model HX064X00-B00 is a 6.4-inch TFT display module featuring 1024x768 resolution, LVDS interface, wide viewing angles, and specialized design for automotive applications.
Product Specifications
Part Number HX064X00-B00
Display Technology TFT Display
Diagonal Screen Size 6.4 inch
Active Area 129.792 * 97.344 mm
Panel Size 135.369 * 105.963 * 1.06 mm
Brightness TBD
Resolution 1024 * 768 dots
Interface LVDS
Viewing Angle All directions
Driving IC GH7013

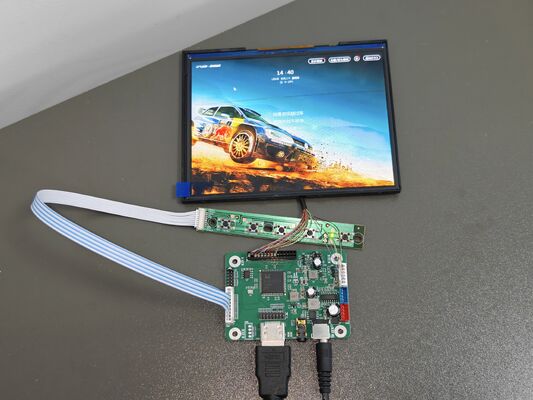

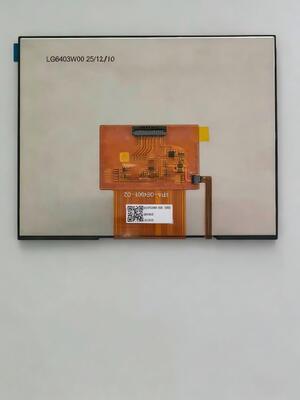

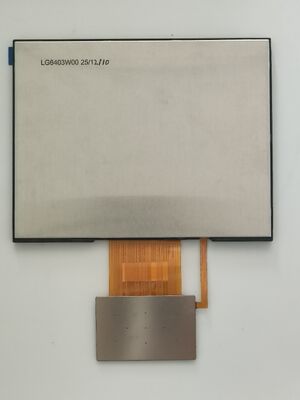

Product Images
HX064X00-B00 TFT display module front view HX064X00-B00 TFT display module side view HX064X00-B00 TFT display module detailed view
Technical Drawing
HX064X00-B00 TFT display module technical drawing
TFT Display Technology
TFT substrate input and CF substrate input flow chart:
TFT and CF substrate input flow chart
TFT structure diagram:
TFT structure diagram
Manufacturer Information
Huaxin Technology Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistent quality
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management System
  • ISO9001/IATF16949 Quality Management System
  • SGS Certification for LCD Modules
Company Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Business: High-tech enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Product Range: VA, TN, HTN, STN, FSTN, CSTN LCD series and COB, TBA, COG, TP, LED backlight LCM series
Registered Capital: 20 million
Employees: 500+
R&D Staff: 10%
Quality Control: 15%
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: LED backlighting system for screen illumination
  • Applications: Versatile use across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Restricted contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in form factors
  • Restricted color gamut range
