4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface

  • 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface
  • 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface
  • 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface
  • 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface
  • 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number HXLCM040HD
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology FHD Display Name Color TFT Display
Size 4" Resolution 640x1280
Brightness 350cd/m2 View Angle Free View Angle
Interface MIPI
Highlight

4 inch TFT Color Display

,

640x1280 resolution TFT Display Module

,

MIPI interface TFT LCD Display
Leave a Message
Product Description
HXLCM040HD - 4 Inch Color TFT Display
High-resolution 4-inch TFT display module with MIPI interface and ST7703-G5-DP driving IC, featuring 640x1280 resolution and 350 cd/m² brightness.
Product Specifications
Parameter Specification
Part Number HXLCM040HD
Display Technology TFT Display
Diagonal Screen Size 4 inch

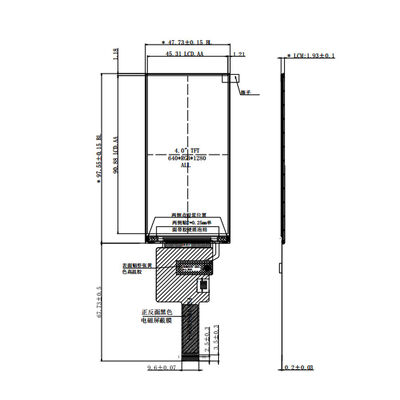

Active Area 45.31 x 90.88 mm
Panel Size 47.73 x 97.55 x 1.93 mm
Brightness 350 cd/m²
Resolution 640 x 1280 dots
Interface MIPI
View Angle All Directions
Driving IC ST7703-G5-DP
Product Images

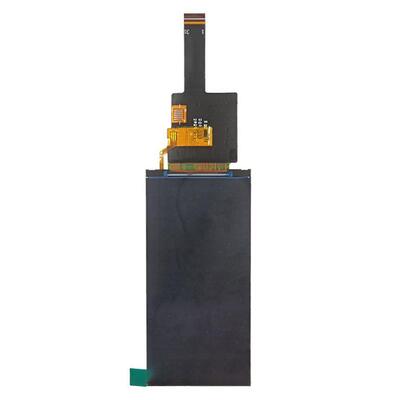

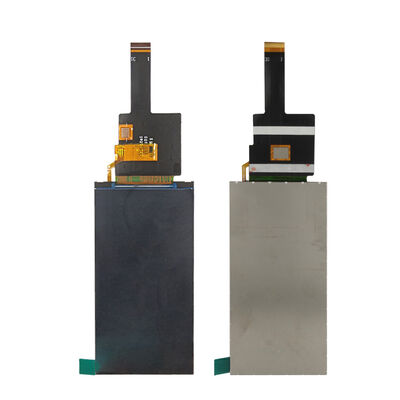

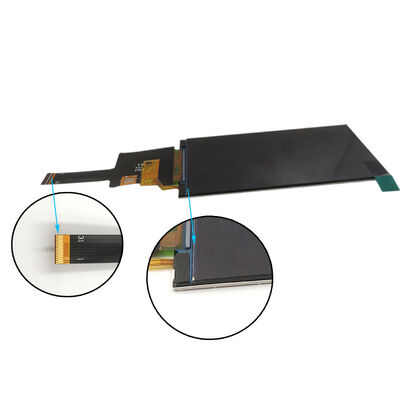

4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 0 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 1 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 2 4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 3
TFT Technology Overview
TFT substrate input and CF substrate input flow chart:
4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 4
TFT structure diagram:
4 inch TFT Color Display with 640x1280 Resolution and MIPI Interface 5
TFT Display Advantages
Superior Image Quality
High resolution, sharpness, and excellent color accuracy for crisp visual performance.
Fast Response Time
Quick pixel switching capabilities for smooth motion and reduced blur.
Wide Viewing Angles
Clear visibility from multiple positions without significant color shifts.
Energy Efficient
Optimized power consumption compared to alternative display technologies.
Versatile Sizing
Available in various sizes from small handheld devices to large panels.
LED Backlighting
Advanced LED backlight systems for uniform screen illumination.
Technical Considerations
TFT Display Limitations
  • Limited viewing angles compared to some alternative technologies
  • Restricted contrast ratio in certain lighting conditions
  • Backlighting requirements impact power consumption
  • Potential motion blur with fast-moving content
  • Limited flexibility in physical form factors
  • Color gamut limitations compared to advanced display technologies
Application Areas
  • Car navigation systems and printers
  • Video communication and advertising displays
  • Automotive and medical devices
  • Fitness equipment and handheld devices
  • Industrial control systems and home appliances
Manufacturer Profile - Huaxin Technology
Huaxin Technology (Enshi) Co., LTD - Established 2009
Company Advantages
  • Cost-effective manufacturing base in inland city location
  • Advanced equipment ensuring stable quality production
  • Highly automated processes for efficiency and consistency
  • Expert engineering team with 20+ years LCD experience
  • In-house design capabilities for customized products
Certifications
  • ISO 14001 Environmental Management
  • ISO 9001 / IATF 16949 Quality Management
  • SGS Certified LCD Modules
Company Details
Location: Hubei, Enshi
Registered Capital: 20 Million
Current Staff: 500+ Employees
R&D Team: 10% of workforce
Quality Control: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands of Logarithms/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
