1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications

  • 1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications
  • 1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications
  • 1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications
  • 1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications
  • 1.01 Inch AMOLED Display Module with 184×276 Dots and 850c/d Brightness for High-Resolution Applications
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number HX101ON1597
Document HX101ON1597-SPEC.pdf
Minimum Order Quantity 1000
Price $5.3
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month
Product Details
Display Technology AMOLED Display Panel Name Oled Display
Size 1.01" Resolution 184×276
Brightness 850c/d Interface QSPI
Driving IC ICNA3306
Highlight

1.01 Inch amoled screen

,

184×276 amoled screen

,

QSPI amoled screen
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
1.01 Inch AMOLED Display With ONCELL Touch
High-resolution 184*276 dots AMOLED display with QSPI interface and 850c/d brightness, featuring driving IC ICNA3306 and touch IC CHSC6417.
Product Parameters
Part No HX101ON1597
Display Mode 1.01 inch AMOLED DISPLAY with oncell
Outline Size (mm) 33.25±0.05*20.66±0.05
AA Size (mm) 21.53*14.35
Display Dots 184*276
View Angle All
Brightness 850c/d
Interface QSPI
Driving IC ICNA3306
Touch IC CHSC6417
Product Images

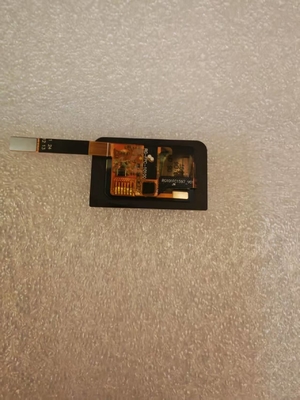

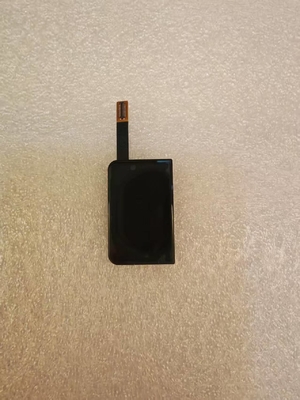

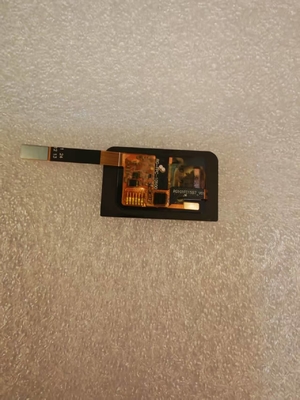

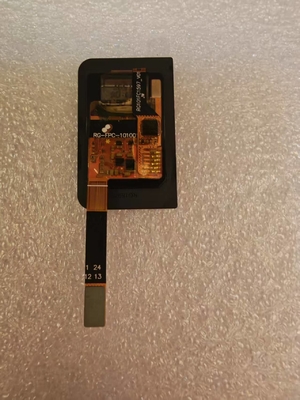

1.01 inch AMOLED display front view 1.01 inch AMOLED display side view 1.01 inch AMOLED display close-up
Technical Drawing
Technical drawing of 1.01 inch AMOLED display
OLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: LCD, LCM, TFT, backlight, OLED R&D and production
  • Registered capital: 20 million
  • Employees: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & communication devices
  • Collimators & navigators
AMOLED Display Characteristics
  • Self-emissive pixels for true blacks
  • Exceptional contrast ratio
  • Superior color accuracy and vibrancy
  • Wide viewing angles
  • Enhanced power efficiency
  • Ultra-thin and flexible design options
  • Fast response time
Power Efficiency Comparison
AMOLED vs Other Display Technologies
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can be turned off
  • Brightness Control: AMOLED can adjust pixel brightness dynamically for better efficiency
  • Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count
