1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01

  • 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
  • 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
  • 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
  • 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
  • 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number HX128ON1411
Document HX128ON1411-SPEC.pdf
Minimum Order Quantity 1000
Price 5.6
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Round AMOLED Name Oled Display
Size 1.28" Resolution 360X360
Brightness 400c/d Interface QSPI
Driving IC GC9C01
Highlight

1.28 inch round AMOLED display

,

360x360 resolution AMOLED panel

,

QSPI interface AMOLED module
Leave a Message
Product Description
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01
Product Parameters
Part No: HX128ON1411
Display Mode 1.28 inch round AMOLED display
Outline Size (mm) 35.88(H) ×38.44(V)×1.6(T)
AA Size (mm) 33.48*33.48
Display Dots 360X360
View Angle ALL
Brightness 400C/D
Interface QSPI
Driving IC GC9C01

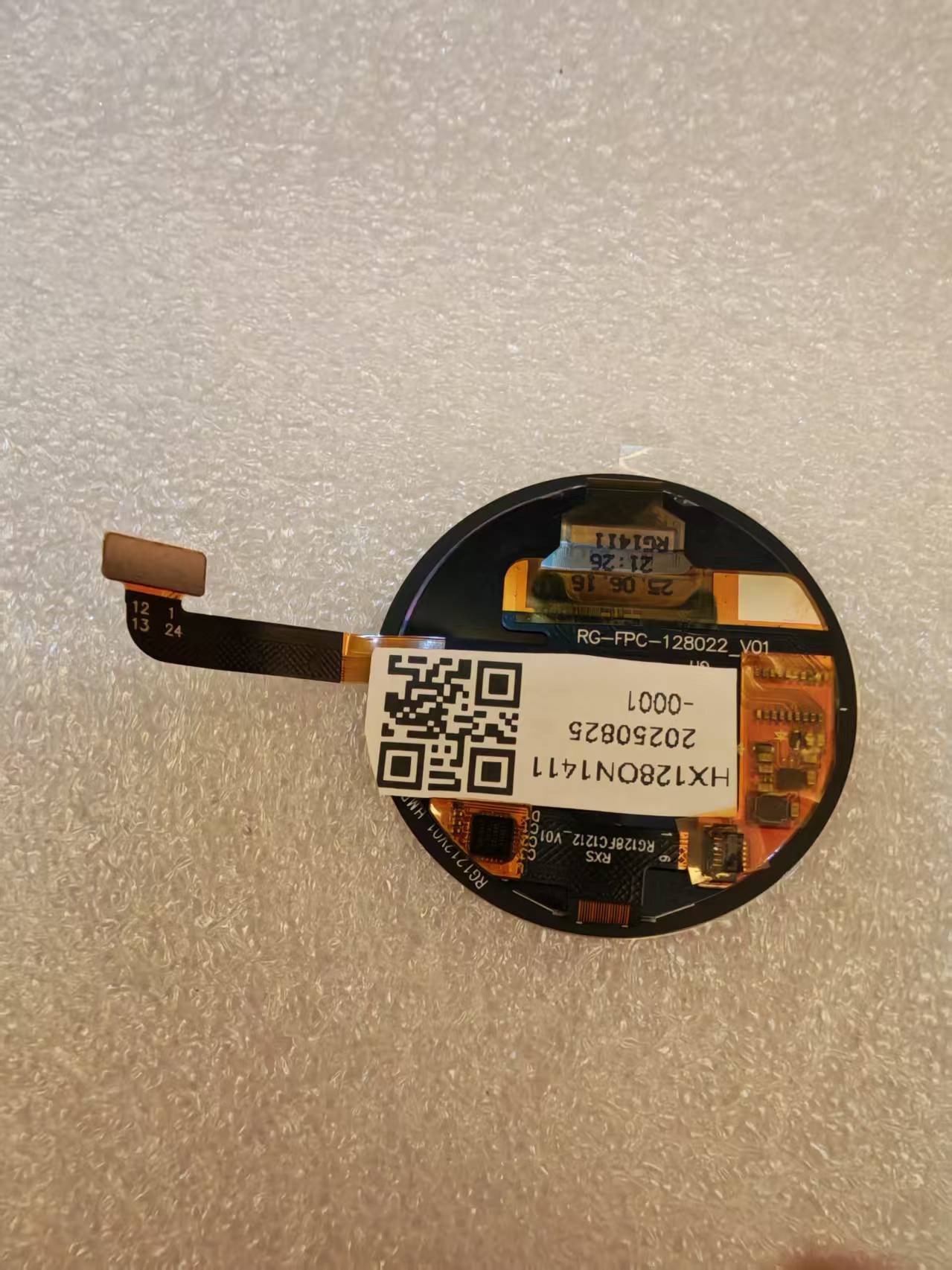

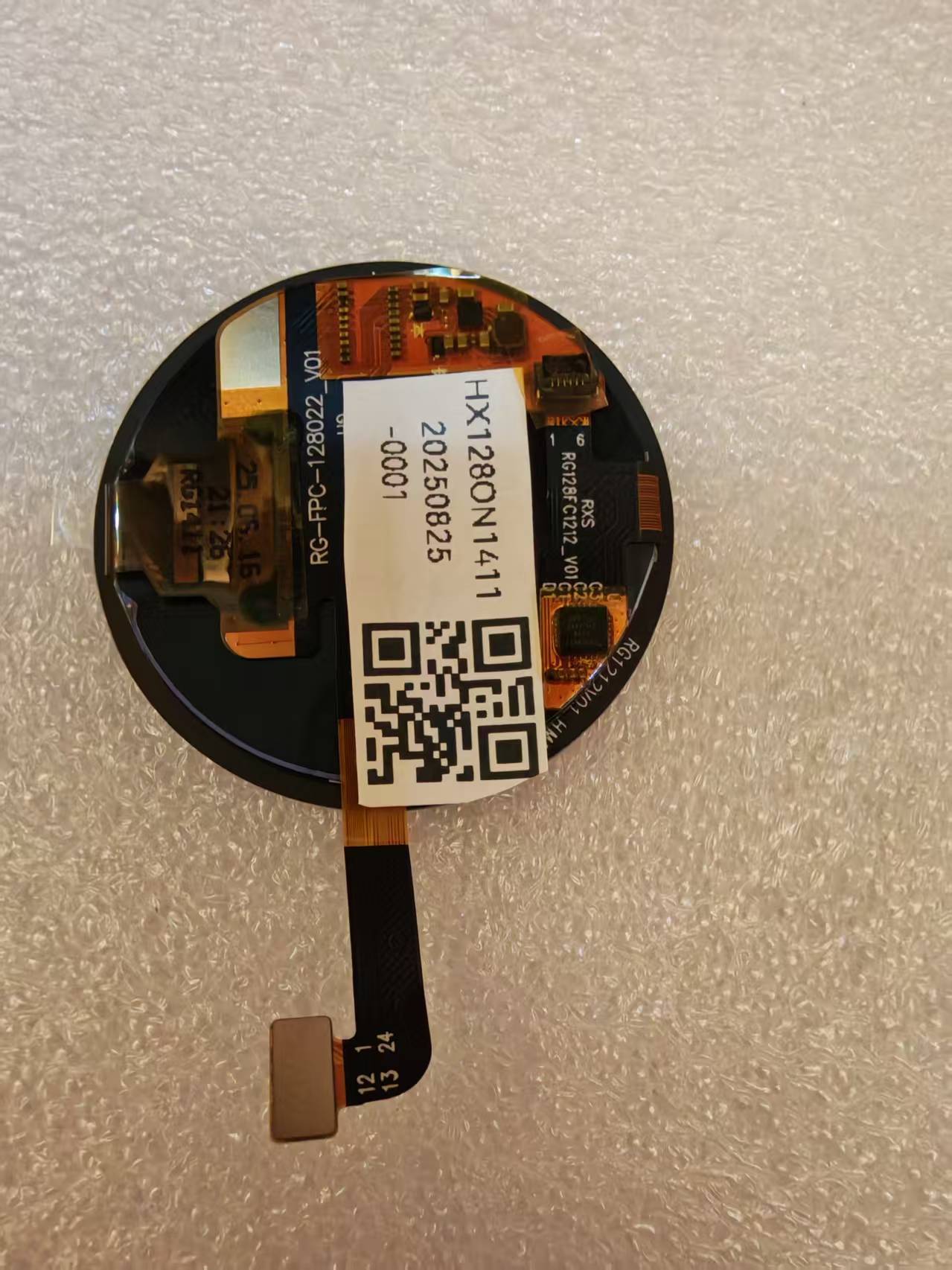

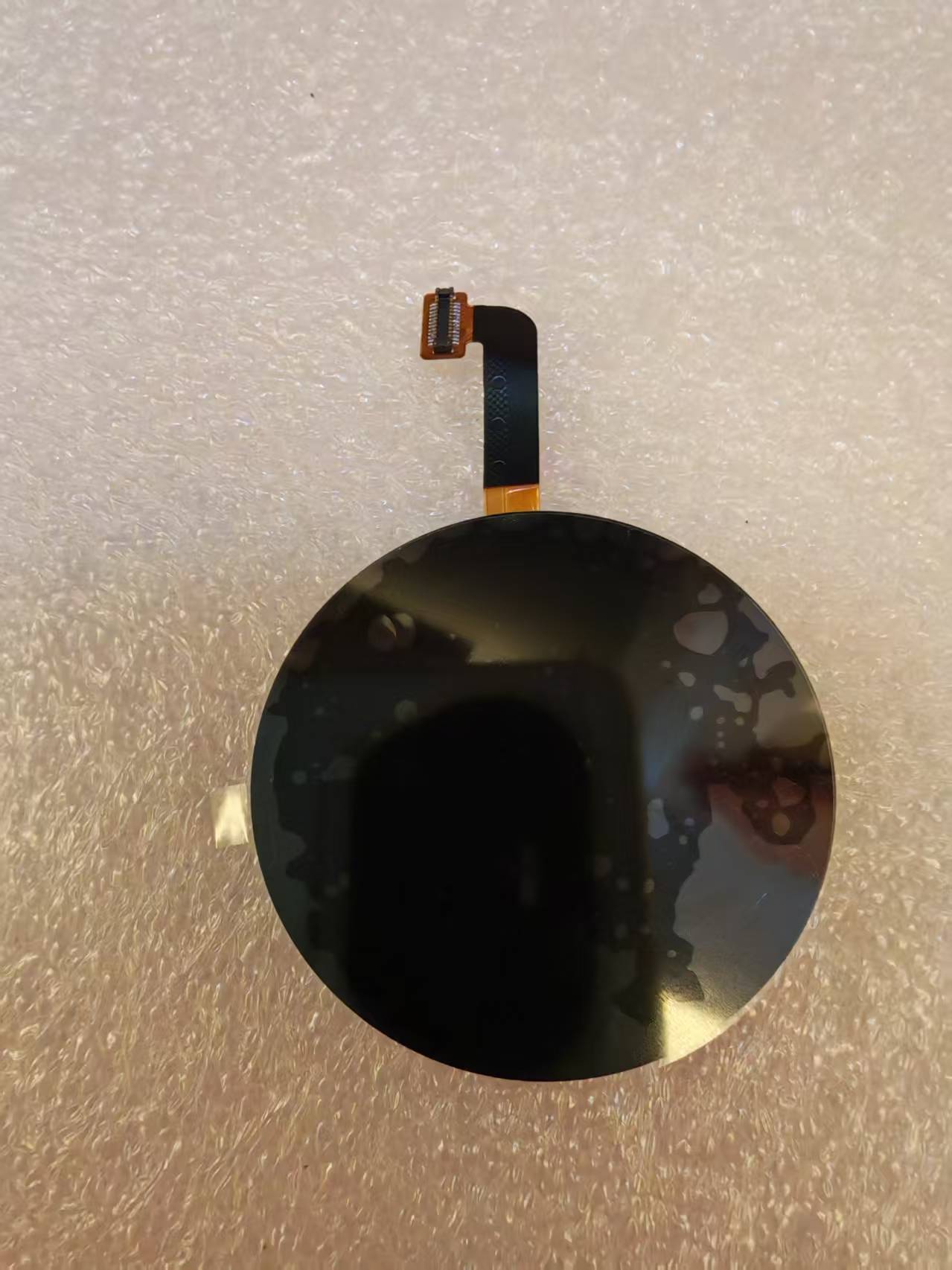

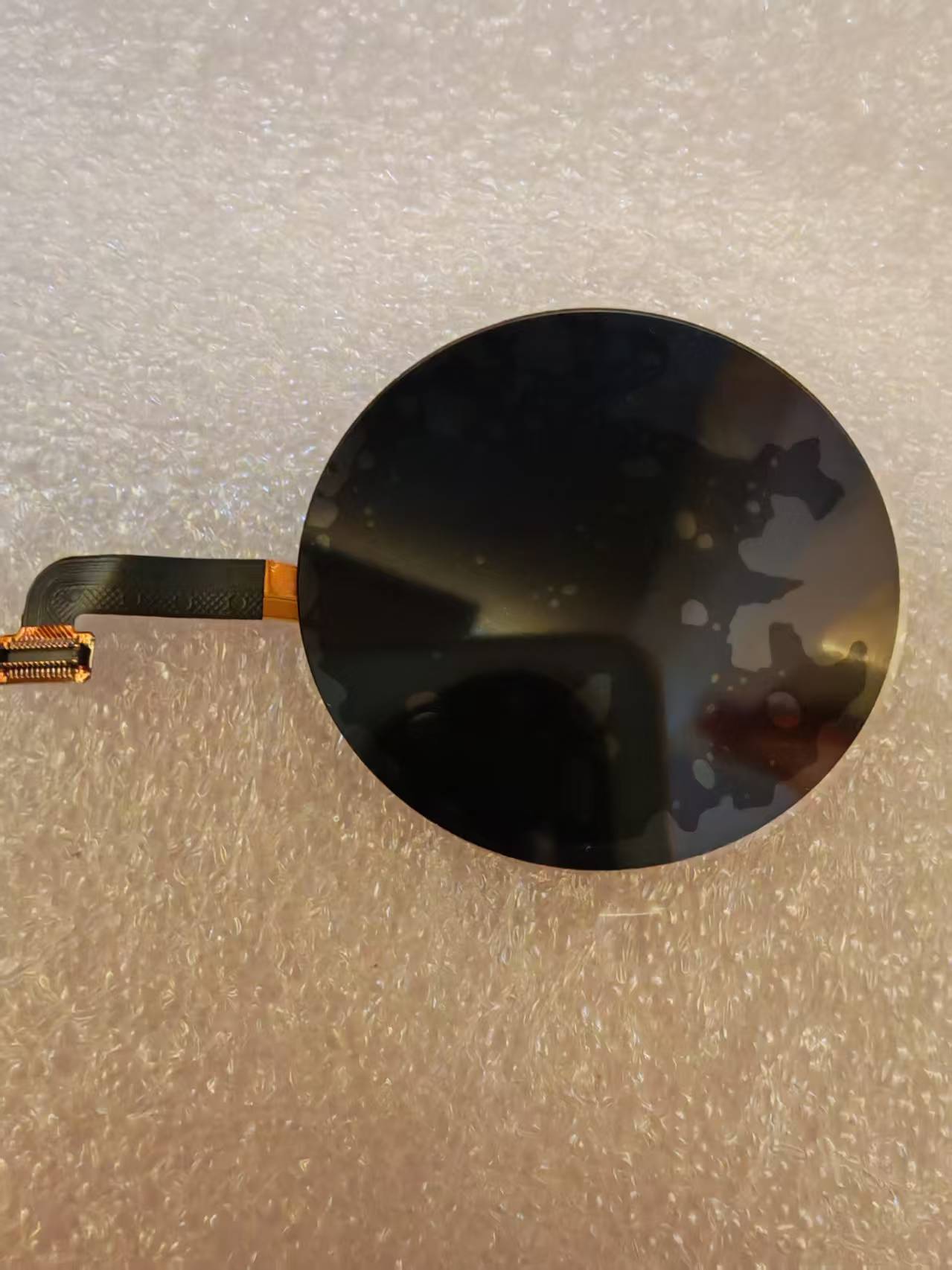

Product Images
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 0 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 1 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 2 1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 3
Technical Drawing
1.28 Inch Round AMOLED Panel 360X360 Dots QSPI Interface Driving IC GC9C01 4
OLED Product Knowledge
OLED Advantages:
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages:
  • Higher cost compared to LCD and TFT
  • Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantages:
  • Cost-effective factory location in inland city
  • Advanced equipment for stable quality
  • Fully automated processes for efficiency
  • Experienced engineers with 20+ years in LCD field
  • Custom product design capabilities
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

Hubei, Enshi

Founded: 2009

High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED

Product lines include VA, TN, HTN, STN, FSTN, CSTN LCD series and COB, TBA, COG, TP, LED backlight LCM series

Registered capital: 20 million

Current staff: 500+ (10% R&D, 15% QC)

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • High Contrast Ratio
  • Excellent Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
  • AMOLED displays consume power per-pixel, with dark content using minimal power
  • LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
  • AMOLED is more efficient for dark content as pixels can be turned off
  • LCD/LED power consumption remains constant for all content
3. Brightness Control:
  • AMOLED can adjust pixel brightness individually for better efficiency
  • LCD/LED typically have fixed backlight brightness
4. Display Size:
  • AMOLED more efficient for smaller displays as consumption scales with pixels
  • Larger LCD/LED may require more power-hungry backlights
