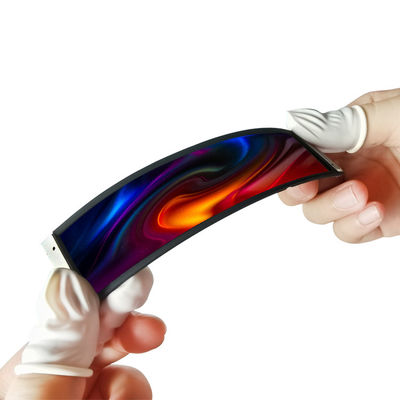

4.01 Inch Flexible AMOLED Display Module with 192*960 Resolution and 350cd/m² Brightness
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | HX401RAN10A |
| Document | HX401RAN10A-SPEC.pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 50K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Flexible Amoled | Name | Flexible Amoled Display |
|---|---|---|---|
| Size | 4.01 " | Resolution | 192*960 |
| Brightness | 350cd/m² | Interface | MIPI |
| Driving IC | RM69330 | ||
| Highlight | AMOLED Module,high Resolution AMOLED Module,4.01 Inch AMOLED Module |
||
Product Description
4.01 Inch Flexible AMOLED Module with RM69330 Driving IC
High-performance 4.01-inch flexible AMOLED module featuring 192×960 resolution, MIPI interface, and RM69330 driving IC with 350C/D brightness.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX401RAN10A |
| Display Mode | 4.01 inch flexible AMOLED |
| Outline Size (mm) | 27.39×111.74×0.81 |
| AA Size (mm) | 19.99×99.94 |
| Display Dots | 192×960 |
| View Angle | All |
| Brightness | 350C/D |
| Interface | MIPI |
| Driving IC | RM69330 |

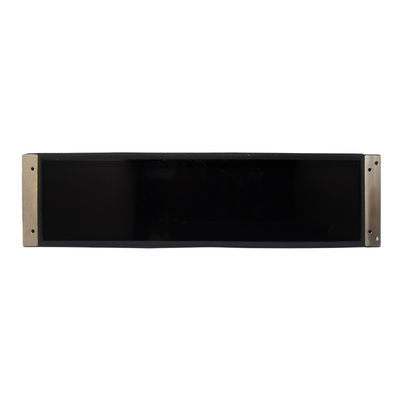

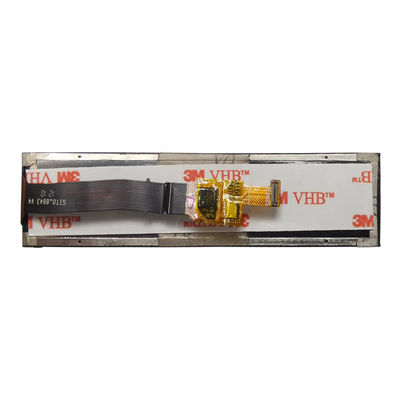

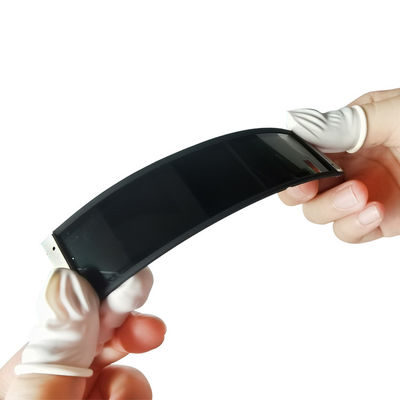

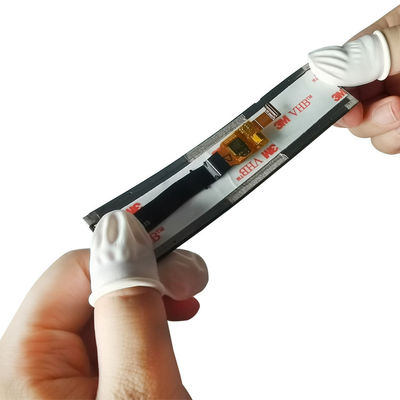

Product Images
Technical Drawing
OLED Technology Overview
Advantages
- Lighter and thinner than LCD displays
- High contrast ratio and color saturation
- Lower power consumption
Disadvantages
- Higher cost compared to LCD and TFT
- Shorter operational lifetime
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Specializes in research, development, and production of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
- Cost-effective inland manufacturing base
- Advanced equipment for stable quality
- Automated production processes
- 20+ years of industry experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Statistics
- Registered capital: 20 million
- 500+ employees
- 10% R&D staff
- 15% quality control staff
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousands/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousands/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousands/Day |
Product Applications
- Safety boxes & instruments
- Locks & smart home devices
- Transmitters & watches
- Radios & communication devices
- Collimators & navigation systems
AMOLED Display Characteristics
- Self-emissive pixels for true blacks
- Exceptional contrast ratio
- Superior color accuracy and vibrancy
- Wide viewing angles
- Enhanced power efficiency
- Ultra-thin and flexible design
- Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Technologies
- Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
- Content Dependency: AMOLED excels with dark content as pixels can turn off completely
- Brightness Control: AMOLED dynamically adjusts pixel brightness for efficiency
- Display Size: AMOLED maintains efficiency better at smaller sizes
