1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness

  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
  • 1.04 Inch Round AMOLED Display Module with 340*340 Resolution and 600cd/m2 Brightness
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX1041535A0
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month
Product Details
Display Technology AMOLED Display Name Oled Screen
Size 1.04" Resolution 340x340
Brightness 600cd/m2 Interface SPI
Drive IC CO5300-AF
Highlight

600cd/m2 Brightness AMOLED Display Module

,

SPI Interface AMOLED Display Module

,

1.04 Inch AMOLED Display Module
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
High Brightness 1.04 Inch Round AMOLED Display Module
ESHX1041535A0 is a 1.04 inch round AMOLED display module with 340*340 resolution, SPI interface, and 600 cd/m² brightness. The driving IC is CO5300-AF.
Product Parameters
Parameter Value
Part No. ESHX1041535A0
Display Mode 1.04 inch AMOLED display
Outline Size (mm) 29.25(W) * 28.9966(H)
Active Area Size (mm) 26.35 * 26.53
Display Dots 340(H) * 340(V)
View Angle All directions
Brightness 600 cd/m²
Interface SPI
Driving IC CO5300-AF
Product Images

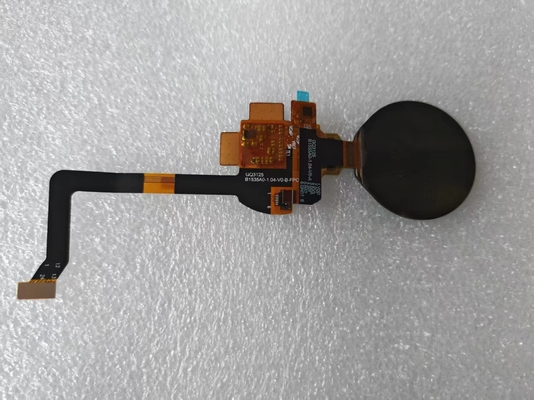

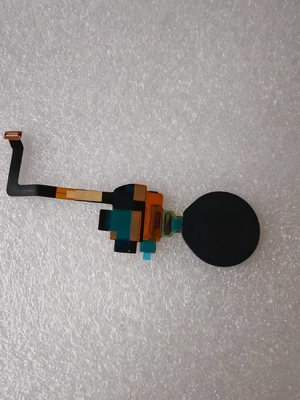

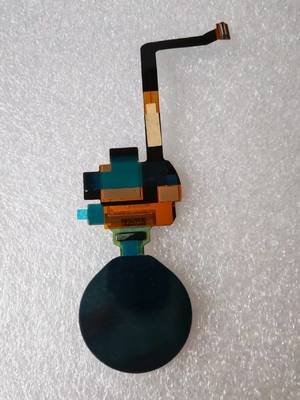

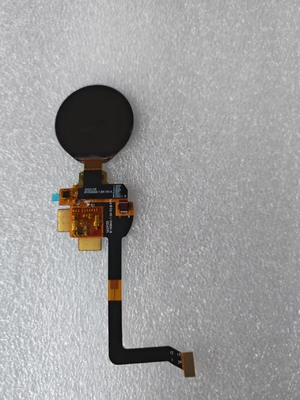

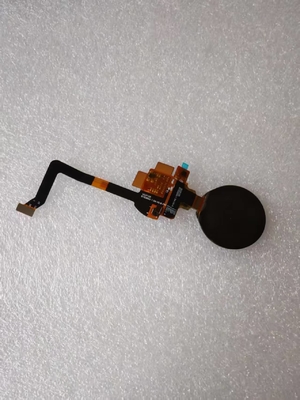

1.04 inch AMOLED display module front view 1.04 inch AMOLED display module side view 1.04 inch AMOLED display module close-up 1.04 inch AMOLED display module technical view 1.04 inch AMOLED display module dimensions
Drawing & Pin Definition
1.04 inch AMOLED display pin definition diagram
OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio
  • Excellent color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & navigation devices
  • Collimators & medical equipment
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thin and flexible design
  • Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
  • Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
  • Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
