2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits

  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
  • 2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX76284
Minimum Order Quantity 1000pcs
Price Negotiated
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Module Name Lcd Display
Size 2.25“ Display Type TN
Interface SPI View Angle 12:00 O'clock
Resolution 76*284
Leave a Message
Product Description

ESHX76284  is 2.25  inch bar type  TFT LCD display with PCB and 8PIN, 76*284  resolution and SPI  interface, view angle is 12:00 o'clock  , brightness is 300 c/d





A:Product Parameter

Part No: ESHX76284
display Mode 2.25 inch TFT display module
outline size(mm) 21.08x73.15*3.56
AA size(mm) 14.797*55.295
Display dots 76*284
view Angle 12:00
Brightness 300c/d
interface 4wire SPI
Driving IC ST7789

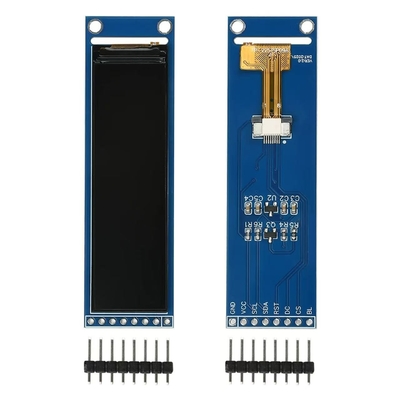

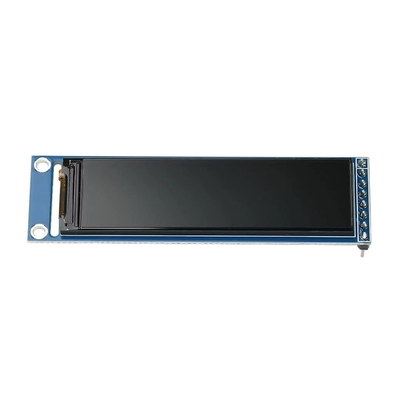

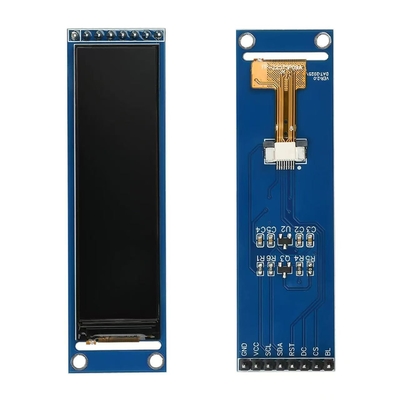

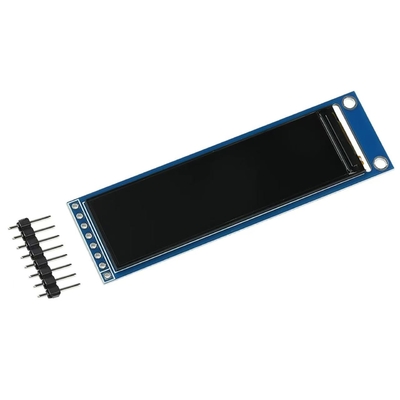

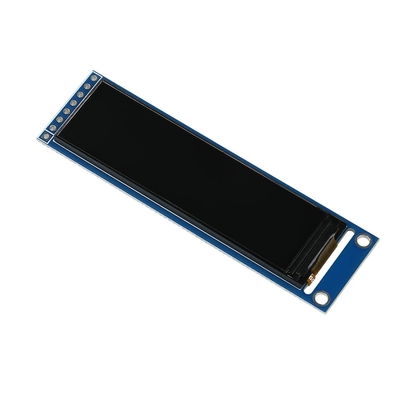

B:Product Picture

2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 02.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 12.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 22.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 32.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 4







C: Drawing




D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 5



TFT structure  as below

2.25 inch tft display module with PCB 76*284 dots 12:00 o"clock 4wire SPI interface 300nits 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
