2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition

  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
  • 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX0205FPOINO11-C001A
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology AMOLED Display Module Name Color OLED
Size 2.5" Resolution 368*488
Brightness 800cd/m2 Interface Mipi QSPI
Highlight

368*448 Resolution AMOLED Display Screen

,

Outdoor Definition Color AMOLED Display Screen

,

2.05-inch AMOLED Display Screen
Leave a Message
Product Description
2.05-inch AMOLED Display Screen With 368×448 Resolution For Outdoor Definition Color Screen

This high-performance 2.05-inch AMOLED display offers exceptional outdoor visibility with 800 nit brightness and 100% color gamut. Featuring a 368×448 resolution and 284 PPI, it delivers crisp, vibrant images with wide viewing angles.

Technical Specifications

Dimensions: 2.05 inches
Resolution: 368 × 448 pixels
Display Area: 32.844 (H) × 39.984 (V) mm
Module Size: 34.64 × 42.89 × 0.85 mm
Pixel Pitch: 0.0892 mm
Display Colors: 16.7M
Viewing Angle: Full viewing angle
Contrast Ratio: 30000:1
PPI: 284
Color Gamut: 100%
Brightness: 800 nit
Connection Method: Snap connection
Hardware Interface: QSPI, MIPI
Driving Voltage: 2.8-3.3V
Driver IC: CO5300
Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C

Product Details
Product Parameters
Part No ESHX0205FPOINO11-C001A
Display Mode 2.05 inch AMOLED OLED
Outline Size (mm) 34.64×42.89×0.85
AA Size (mm) 32.844×39.984
Display Dots 368×448
View Angle All
Interface QSPI, MIPI
Brightness 800C/D
Working Temp -20~70°C
Storage Temp -30~80°C
Driving IC CO5300
Product Images

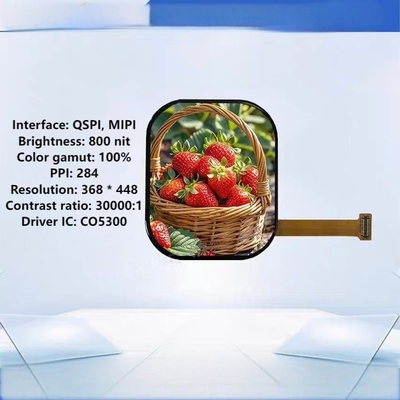

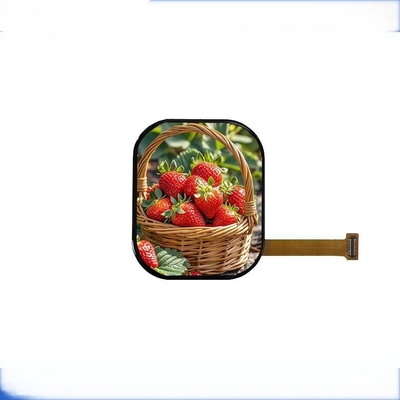

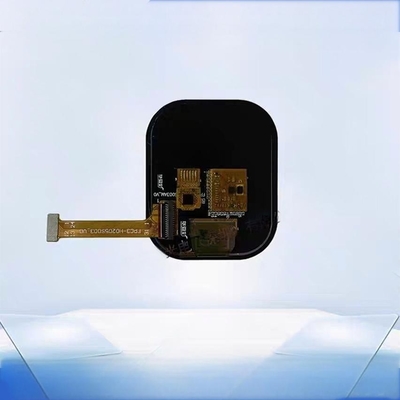

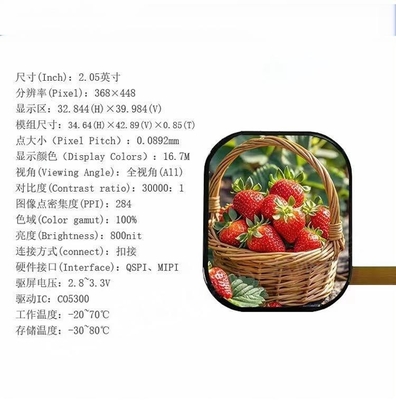

2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition 0 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition 1 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition 2 2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition 3

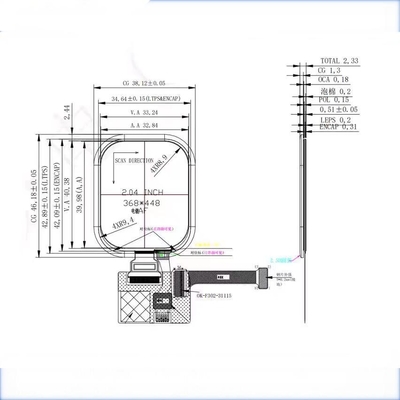

Drawing and Pin Definition
2.05-inch AMOLED Display Screen with 368*448 Resolution and 800cd/m2 Brightness for Outdoor Definition 4
OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio for better image quality
  • Superior color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT displays
  • Shorter operational lifespan than LCD and TFT
Manufacturer Information
Huaxin Technology Advantages
  • Cost-effective factory location in inland China
  • State-of-the-art equipment for consistent quality
  • Automated production processes for efficiency and stability
  • Expert engineering team with 20+ years LCD experience
  • Custom design capabilities for specialized products
Company Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
  • Company: Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED technologies
  • LCD Types: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM Types: COB, TBA, COG, TP, LED backlight and other series
  • Registered Capital: 20 million
  • Employees: 500+
  • R&D Staff: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios
  • Collimators & navigators
AMOLED Display Characteristics
  • Self-emissive pixels for true blacks
  • Exceptional contrast ratio
  • Precise color accuracy and vibrancy
  • Wide viewing angles
  • Energy efficient operation
  • Ultra-thin and flexible design options
  • Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED saves power with dark content by turning off pixels
  • Brightness Control: AMOLED adjusts brightness per-pixel for better efficiency
  • Display Size: AMOLED scales better for smaller displays with fewer pixels
