1.14 Inch TFT Display Module with 135X240 Resolution and SPI Interface Driving IC ST7789P3
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | HX114-2413THBIG09 |
| Document | HX114-2413THBIG09-SPEC.pdf |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 200K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Lcd Panel | Name | Lcd Display Screens |
|---|---|---|---|
| Size | 1.14 | Resolution | 135X240 |
| Interface | SPI | Driving IC | ST7789P3 |
| Highlight | 1.14 Inch TFT Display Module,ST7789P3 TFT Display Module,135X240 TFT Display Module |
||
Product Description
1.14 Inch TFT Display Module 135X240 Resolution SPI Interface Driving IC ST7789P3
HX114-2413THBIG09 is 1.14 inch TFT display with 135X240 resolution, SPI interface, free view angle, and Driving IC ST7789P3.
Product Parameters
| Parameter | Value |
|---|---|
| Part No. | HX114-2413THBIG09 |
| Panel size | 1.14 inch TFT display module |
| Resolution | 135X240 |
| Viewing Angle | ALL |
| Panel Size (mm) | 17.6X30.11X1.6 |
| Active Area (mm) | 14.86X24.91 |
| Interface | SPI |
| Driving IC | ST7789P3 |

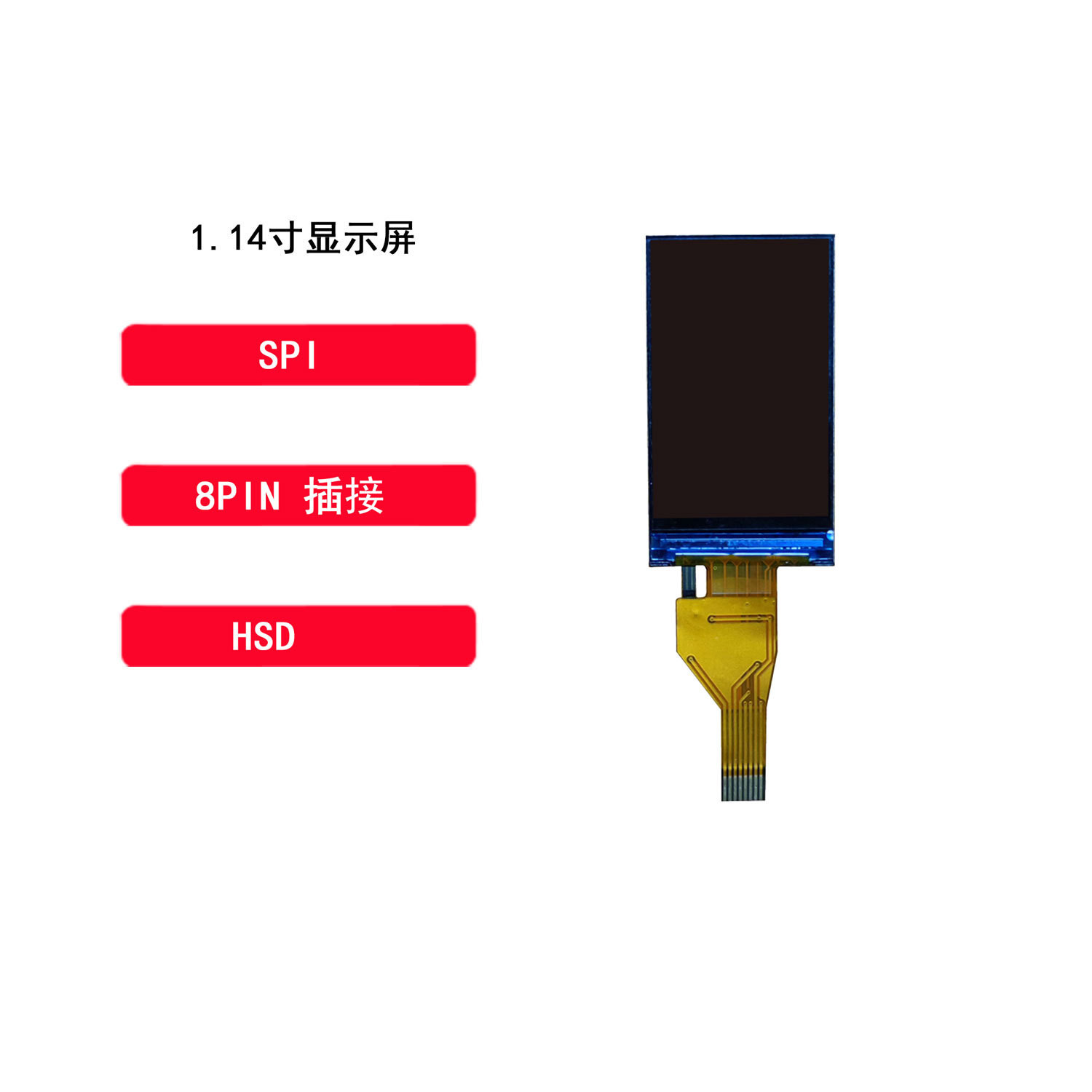

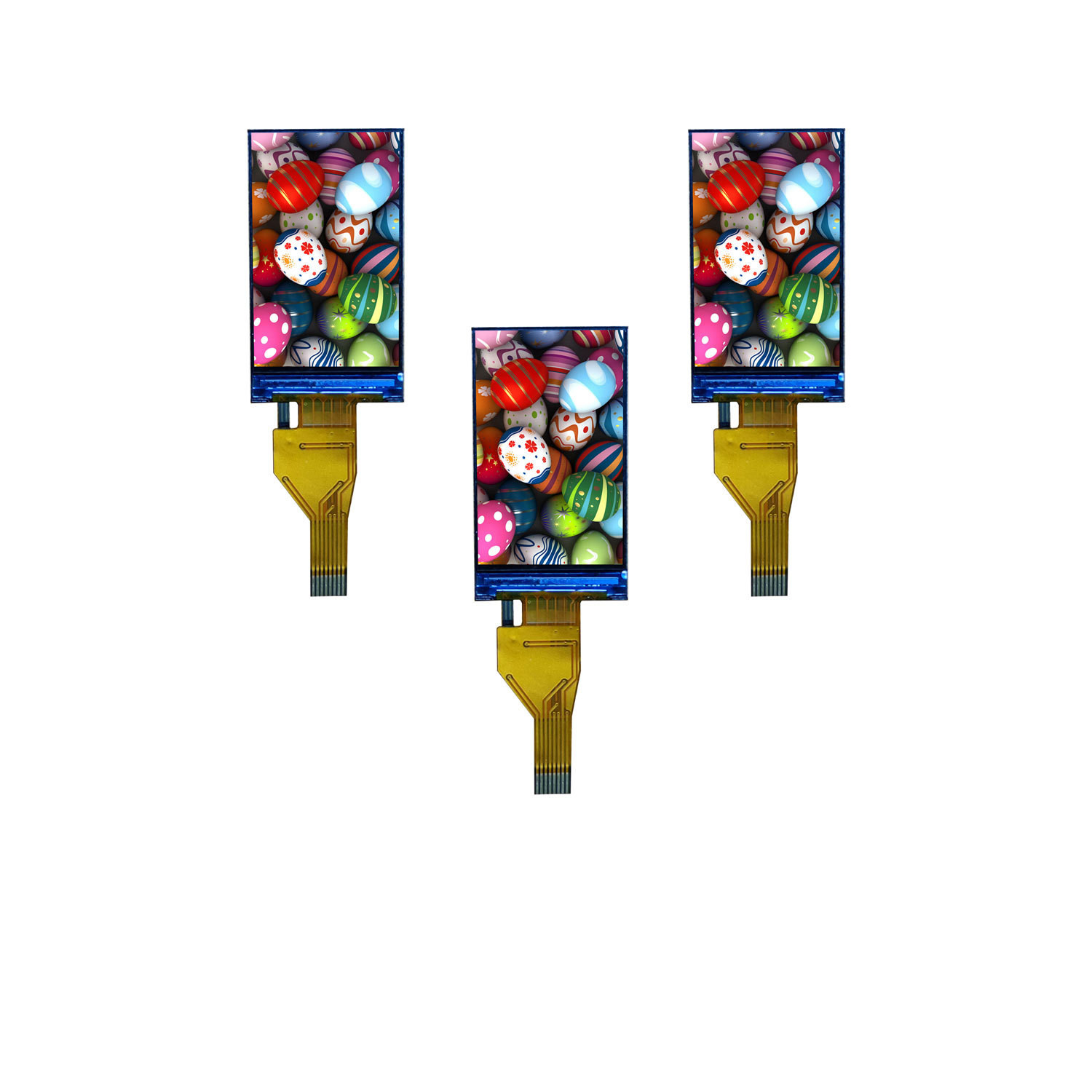

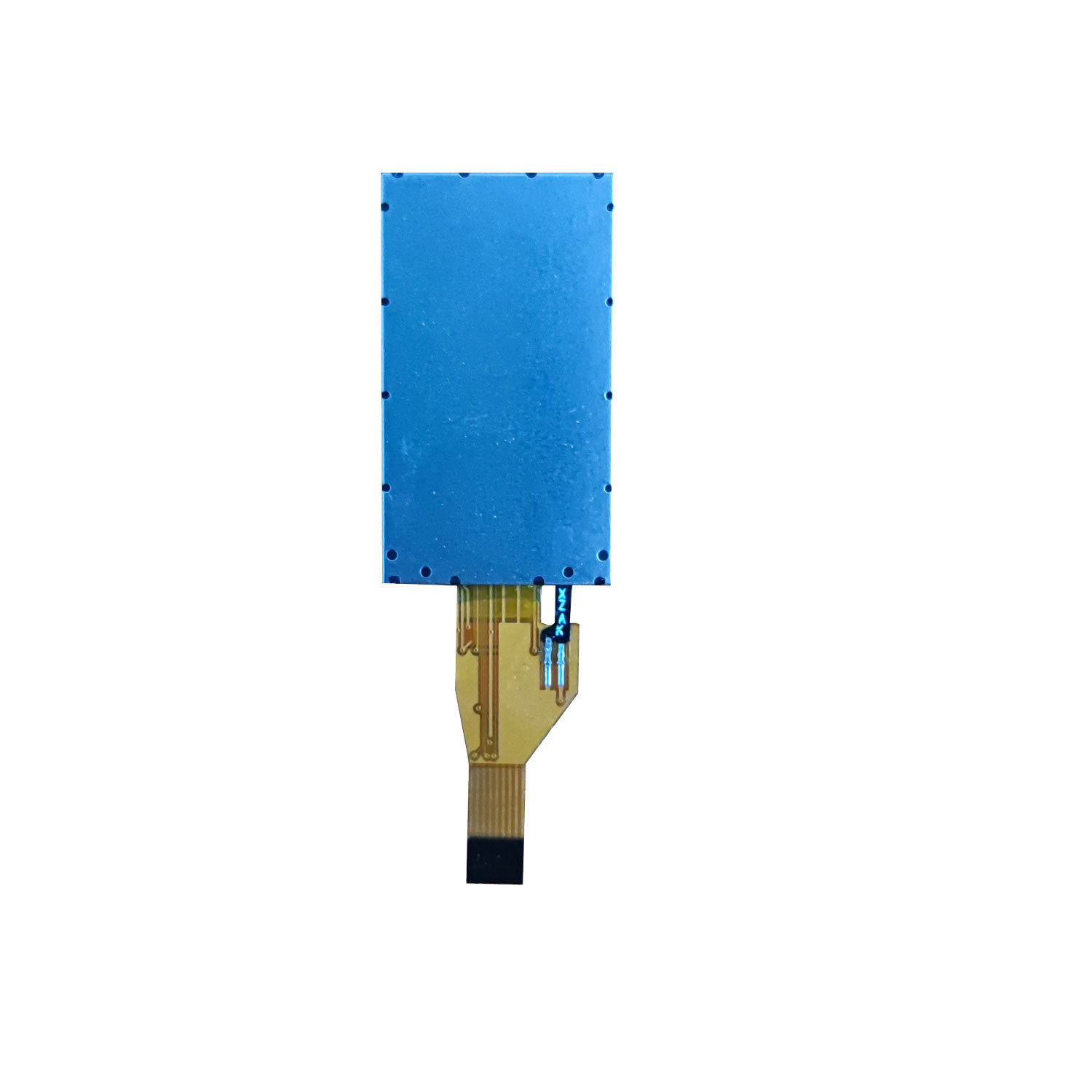

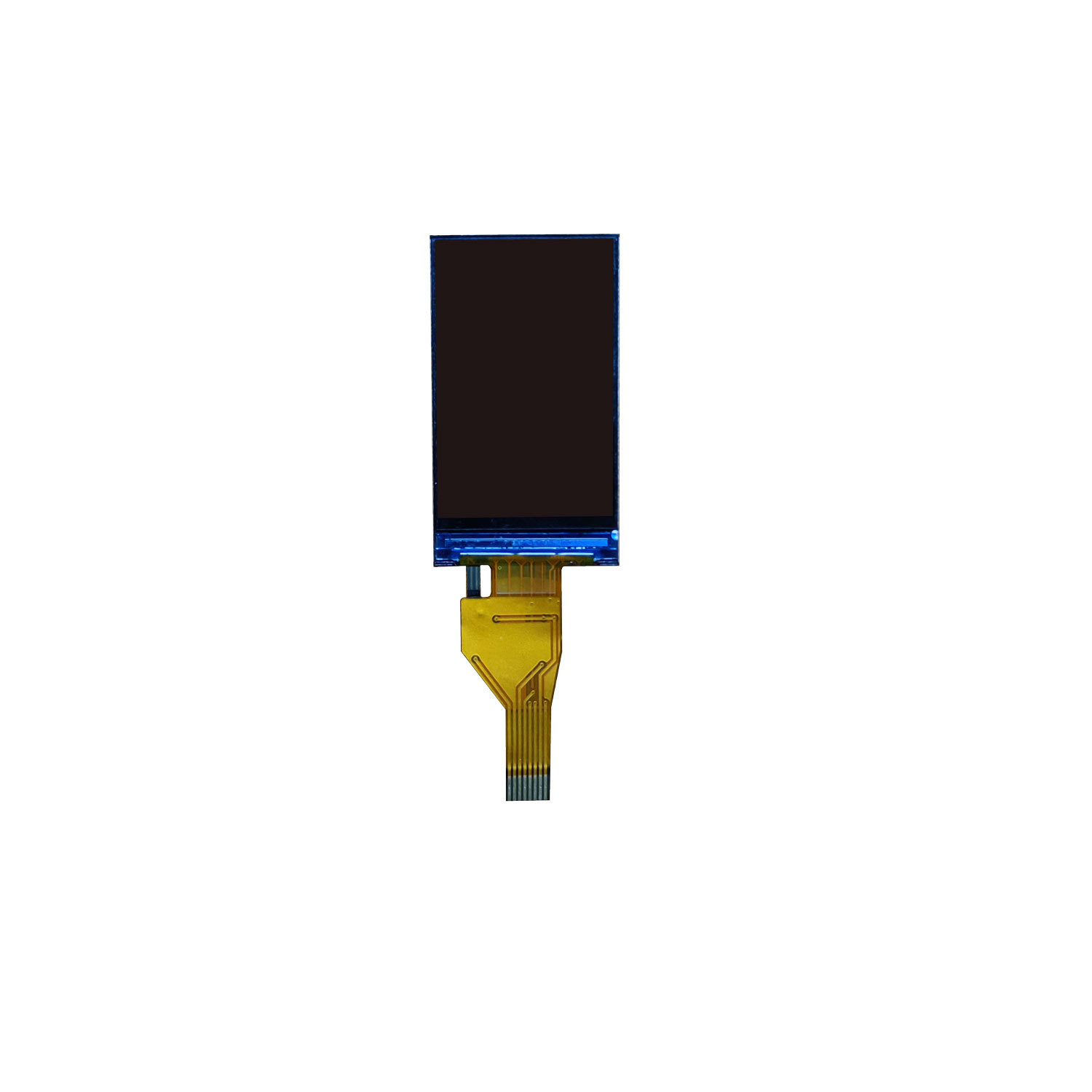

Product Images
Technical Drawing
TFT Product Knowledge
TFT Substrate Input and CF Substrate Input Flow Chart
TFT Structure
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
Company Advantages
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality
- Professional engineers with 20+ years experience in LCD field
- Self-design capability for customized products
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Profile
- High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD products include: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM products include: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast switching of pixels
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: More efficient than other display technologies
- Size and Flexibility: Available in various sizes from small to large panels
- Backlighting: Typically uses LED backlighting
- Applications: Wide range of uses across industries
TFT Display Limitations
- Viewing Angles: Some models have limited optimal viewing angles
- Contrast Ratio: May be limited compared to other technologies
- Power Consumption: Backlighting can increase power usage
- Response Time: Potential for motion blur in fast-moving images
- Flexibility: Limited physical flexibility in most models
- Color Gamut: May be narrower than some alternative technologies
