0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX096H002-V1
Minimum Order Quantity 1000pcs
Price US $6.00-8.00 / Piece
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT LCD Display Name Lcd Module
Size 0.96''Diagonal | 80x3x160 Pixels Display Type IPS
Interface SPI Drive IC ST7735S
View Angle All View Outline L X W X H 14.04mm X 27.94mm X 1.53mm
Active Area L X W 10.8mm X 21.7mm Supply Voltage 2.8V
Luminance 400 TYP Connection Type 13 Pin FPC
Leave a Message
Product Description

This 0.96 inch 80x160 resolution LCD TFT is a Premium display with Serial interface, full view TFT display. This LCD monitor has a built-in ST7735S controller, hot-bar soldering connection, and is RoHS compliant. Customers can customize different connections and cover glass.



A:Product Parameter

Part No: ESHX096H002-V1
Panel size 0.96''Diagonal | 80x3x160 Pixels
LCD type IPS
Module Size 14.04mm x 27.94mm x 1.53mm
Display Area 10.8mm x 21.7mm
Luminance 400 TYP
View angle All View
Module Driver IC ST7735S
Power Supply Voltage 2.8V
Interface Pins SPI
Connection Type 13 pin FPC
Luminance 260 (TYP)
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP No Touch

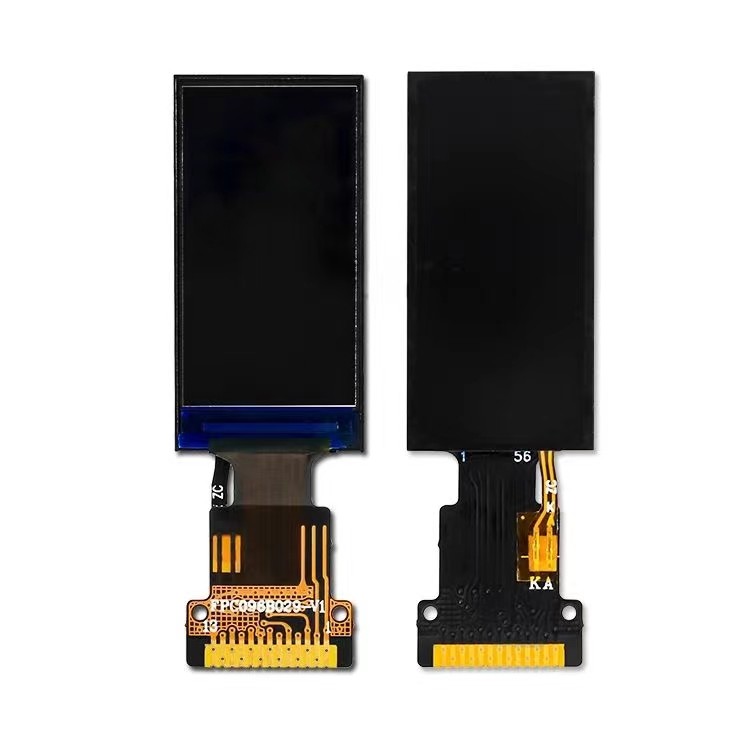

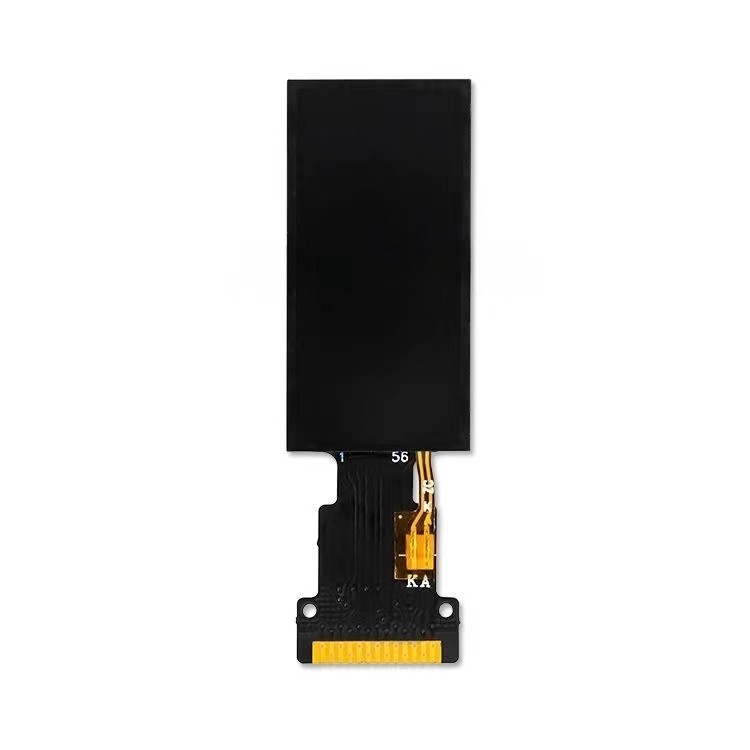

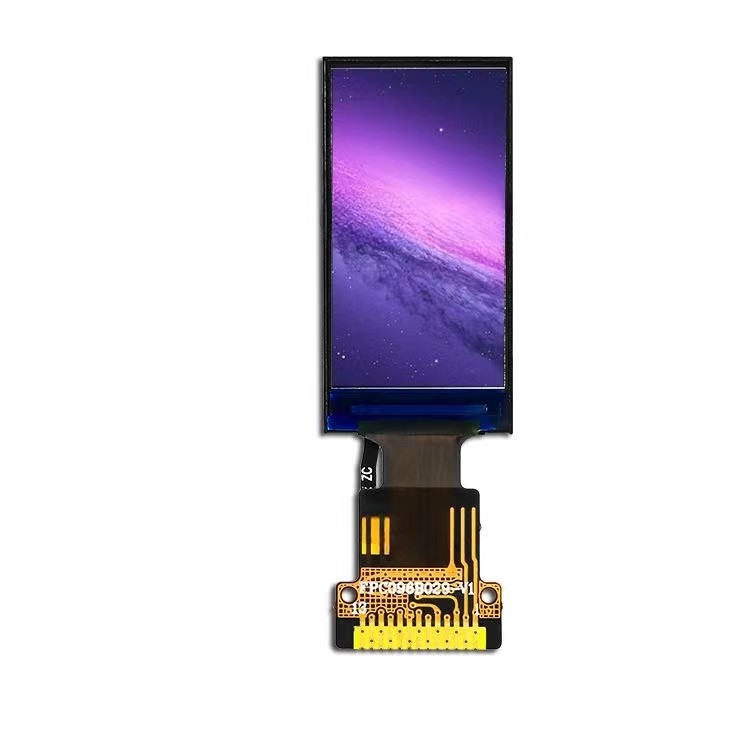

B:Product Picture

0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 0






0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 1
0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 2

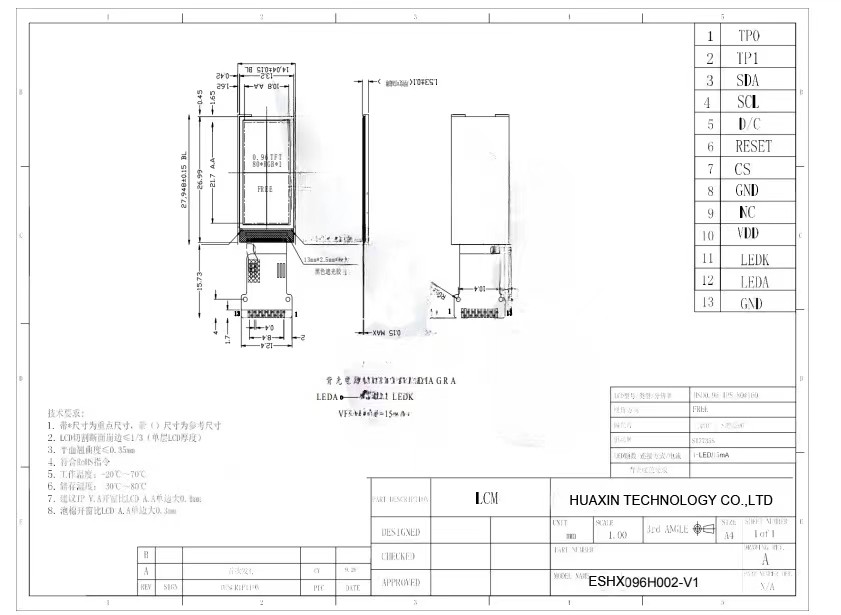

C: Drawing

 0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 3



D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 4



TFT structure  as below

0.96 inch IPS SPI Interface TFT Display With ST7735S Driver IC 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
