TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXHD17012C1
Minimum Order Quantity 1000pcs
Price US $1.2.00-3.00 / Piece
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT LCD Display Name Lcd Module
LCD Size 1.77 Inch (Diagonal) Resolution 128x160
Dot Pitch 0.219x0.219mm Active Area 28.03x35.04mm
Module Size 34x45.83x2.25mm Interface SPI-4wire
Driver IC ST7735S Viewing Direction 12 O'clock
Number Of Pin 14 Pin Connection Operating Voltage 2.8V~3.3V
Operating Temp. -20℃~+70℃ Storage Temp. -30℃~+80℃
High Light

1.8 inch TFT LCD

,

14 pin TFT LCD

,

128X160 TFT LCD

Leave a Message
Product Description

ESHXT177TNC14PG01 is a 128xRGBx160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

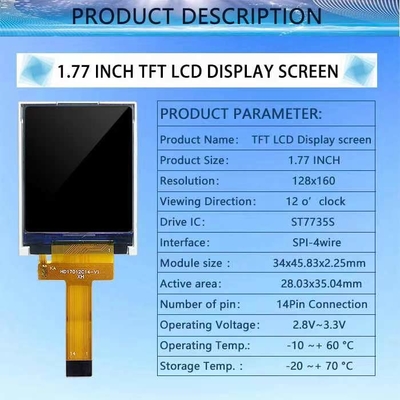

A:Product Parameter

Part No: ESHXT177TNC14PG01
Panel size 1.77 inch (Diagonal)
LCD type TFT LCD module
Module Size 34x45.83x2.25mm
Display Area 28.03x35.04mm
Dot Pitch 0.219x0.219mm
View angle 12:00
Module Driver IC ST7735S
Power Supply Voltage 2.8-3.3V
Interface Pins 4 SPI-4 wire

Resolution

128x60
Luminance 320CD/M2
Operating Temp -10~+60
Storage Temp -20~+70
with or without TP No Touch

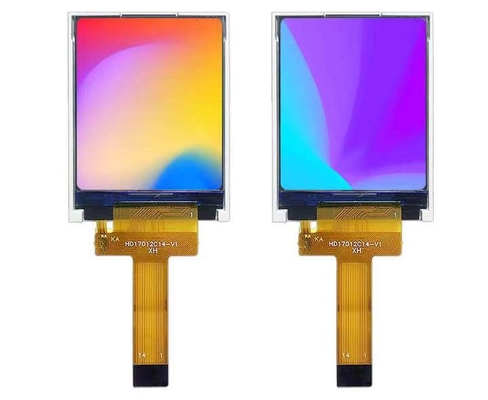

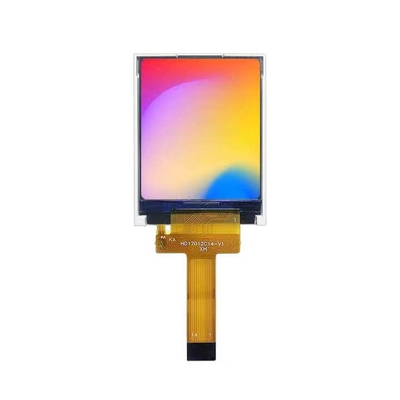

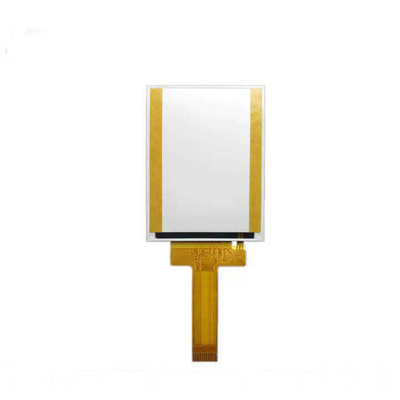

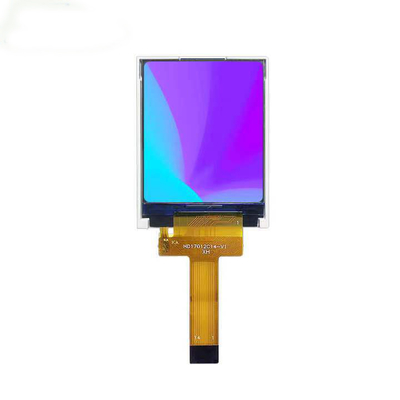

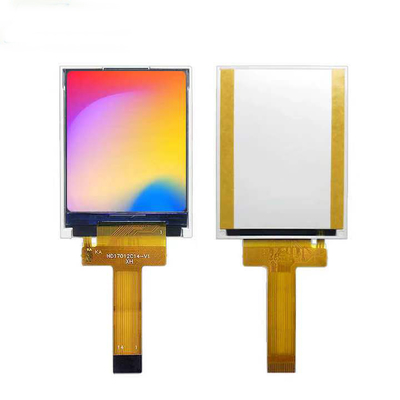

B:Product Picture

TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 0

TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 1TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 2TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 3TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 4TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 5





C:Pin Definition & Drawing

TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 6

 TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 7



D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 8



TFT structure  as below

TFT LCD 1.77'' 1.8'' 128*160 128XRGBX160 TFT LCD 1.8 1.77 inch 128X160 LCD Display Module 14 pin FPC connector 9




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
