Product Details
Display Technology Arduino And Tft Display Name Lcd Display Replacement
Size 3.2 Resolution 240x320
Brightness 300cd/m2 View Angle Free
Interface MCU
High Light

240x320 tft display module

,

3.2 inch tft display module

,

18 PINS tft display module

Leave a Message
Product Description

ESHX32001-37P   is 3.2  inch TFT display module, resolution is 240X320, 18PINS MCU  interface, brightness is  260c/d, view angle is  12:00



A:Product Parameter



LCD Number
ESHX32001-37P
product size 3.2 inch TFT display module
view angle 12:00
resolution 240X320
interface 18 INS MCU
outline size 55.04X77.5X3.56
active area 48.6X64.8
Operating Temp: -20~70
brightness 260C/D
driving IC ST7789V



B:Product Picture

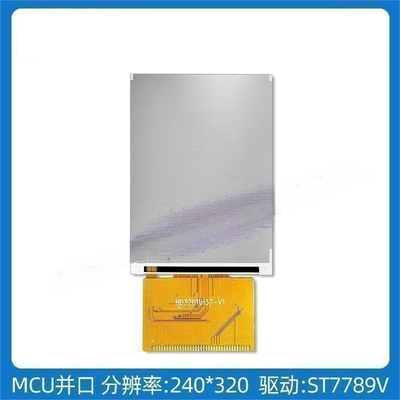

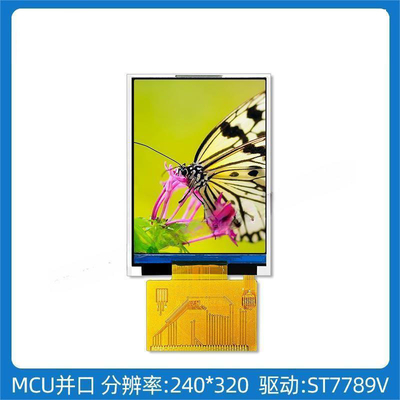

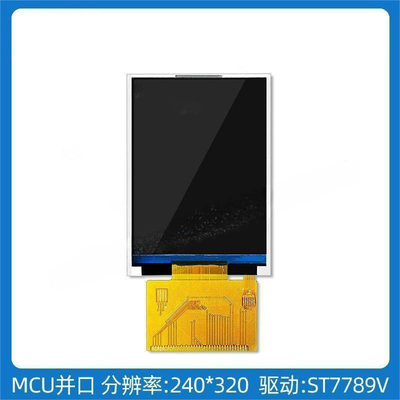

3.2 inch tft display module 240x320 resolution 18 PINS MCU interface driving IC ST7789V 03.2 inch tft display module 240x320 resolution 18 PINS MCU interface driving IC ST7789V 13.2 inch tft display module 240x320 resolution 18 PINS MCU interface driving IC ST7789V 2
