15.6 inch TFT display module 1920*1080 resolution 30pins EDP interface 1000 c/d free view angle

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX156FH30I64B
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Digital Advertising Screen Name Lcd With Touch Screen
Size 15.6 Resolution 1920X1080
Brightness 1000cd/m2 View Angle Free
Interface EDP 30 PINS
High Light

30pins TFT display module

,

15.6 inch TFT display module

,

1920*1080 TFT display module

Leave a Message
Product Description

ESHX156FH30I64B    is 15.6 inch TFT display module, resolution is 1920X1080, EDP  interface, brightness is 1000c/d, view angle is  free



A:Product Parameter

Part No: ESHX156FH30I64B unit
Size 尺寸 15.6 inches​ ​
Resolution 分辨率 1920*1080 pixels
Active Area 显示区域 344.16*193.59 mm
Outline dimension 外观尺寸 360*212.3*6.4 mm
Pixel pitch 点距 0.17925*0.17925 mm
Color Depth 颜色 16.7M colors
Display Mode 显示模式 Normally black Transmissive
Surface treatment 表面处理 Anti Glare
Interface 接口 EDP 30PIN
View Angle 可视角度 85/85/85/85
Brightness 亮度 Typ1000 Nits
Contrast ratio 对比度 Typ800
Response time 响应时间 30 ms
Operating temperature 工作温度 -20 ... +70 °C
Storage temperature 储存温度 -25 ... +75 °C



B:Product Picture

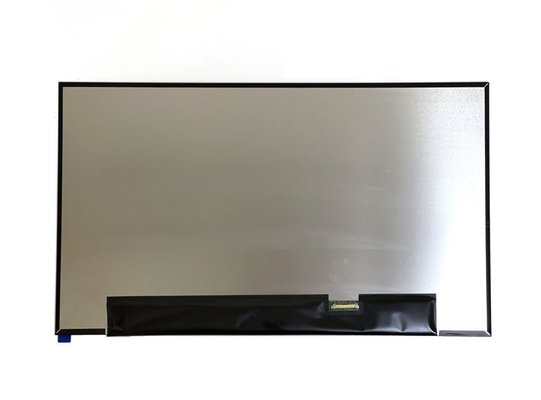

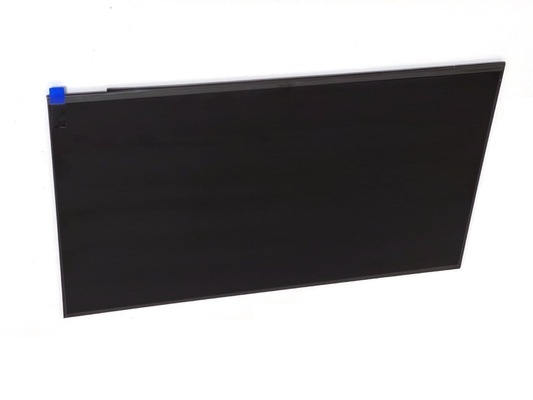

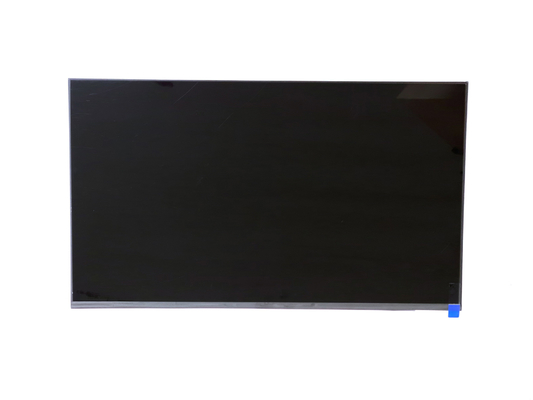

15.6 inch TFT display module 1920*1080 resolution 30pins EDP interface 1000 c/d free view angle 015.6 inch TFT display module 1920*1080 resolution 30pins EDP interface 1000 c/d free view angle 115.6 inch TFT display module 1920*1080 resolution 30pins EDP interface 1000 c/d free view angle 2
