3.5 inch TFT display module 320*480 resolution MIPI 39 PIN interface 300 c/d

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX035HNI39PM
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology Lcd Display Name TFT Display
Size 3.5 " Resolution 320x480
Brightness 300cd/m2 View Angle Free
Interface MIPI
High Light

320*480 TFT display module


3.5 inch TFT display module


39 PIN TFT display module

Leave a Message
Product Description

ESHX035HNI39PM    is 3.5  inch TFT display module, resolution is 320*480  ,  39 pins  mipi  interface, brightness is 300c/d, free view angle


A:Product Parameter

Part No: ESHX035HNI39PM unit
Size 尺寸 3.5 inches​ ​
Resolution 分辨率 320*480 pixels
Active Area 显示区域 48.96*73.44 mm
Outline dimension 外观尺寸 54.5*83*1.6 mm
Pixel pitch 点距 0.051*0.153 mm
Color Depth 颜色 262K colors
Display Mode 显示模式 Normally black Transmissive
Surface treatment 表面处理 TBD
Interface 接口 MIPI 39PIN
View Angle 可视角度 80/80/80/80
Brightness 亮度 300 Nits
Contrast ratio 对比度 900
Response time 响应时间 35 ms
Operating temperature 工作温度 -20 ... +70 °C
Storage temperature 储存温度 -30 ... +80 °C

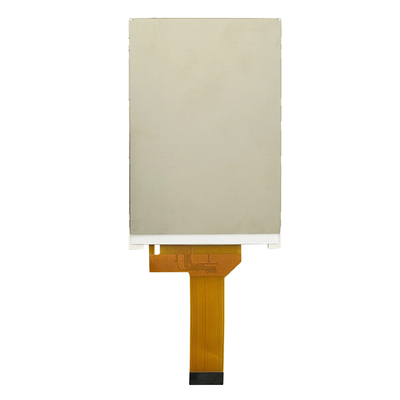

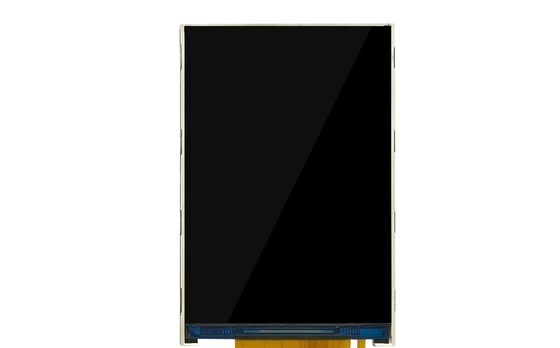

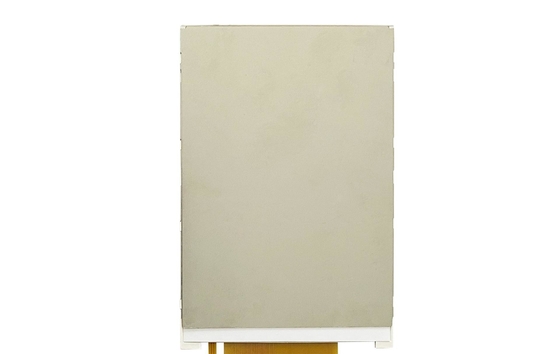

B:Product Picture
3.5 inch TFT display module 320*480 resolution MIPI 39 PIN interface 300 c/d 03.5 inch TFT display module 320*480 resolution MIPI 39 PIN interface 300 c/d 1

C: Drawing


D:TFT Product  Knowledge


tft substrate input and CF substrate input flow chart as below

3.5 inch TFT display module 320*480 resolution MIPI 39 PIN interface 300 c/d 2


TFT structure  as below

3.5 inch TFT display module 320*480 resolution MIPI 39 PIN interface 300 c/d 3


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand



G: Product Application


1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance


H: TFT Display Characteristics


1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


7.Wide Applications:


I: Are there any drawbacks or limitations to using TFT displays?


1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
