6 Inch MIPI AMOLED Display Module 650 Cd/M2 1080x2160 Resolution Driving IC RM69298

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX60101ACT2
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology AMOLED Display Module Name Oled Touch Screen Module
Size 6 " Resolution 1080x2160
Brightness 650cd/m2 Interface MIPI
Drive IC RM69298 Touch Panel CTP
High Light

1080x2160 AMOLED Display Module

,

6 inch AMOLED Display Module

,

650 Cd/M2 AMOLED Display Module

Leave a Message
Product Description

ESHX60101ACT2   is 6  inch AMOLED oled  module, 1080RGBx2160  Resolution,  MIPI Interface, brightness 650 Cd/M2 ,oled display IC is RM69298


A: Product Parameter

Part NO. ESHX60101ACT2
Display Type 6 inch AMOLED Display
Resolution 1080(W)×2160(H) Dot
Panel Size(mm) 80(W)*154.5(H)*1.92(T) mm³
Active Area (mm) 68.26(W)* 136.51(H) mm²
View direction ALL
interface MIPI
Brightness 650c/d
driving IC RM69298

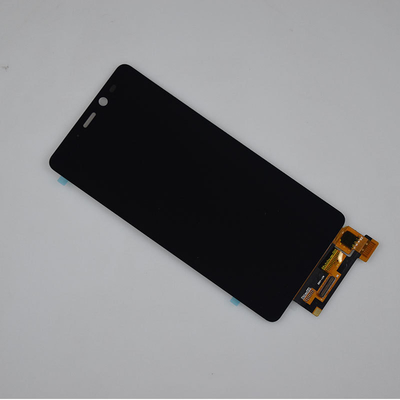

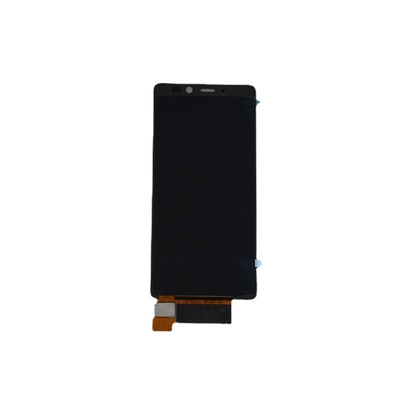

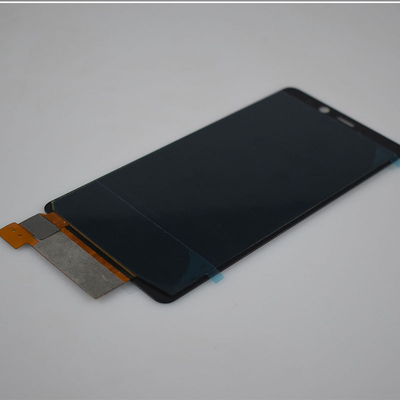

B:Product Picture

6 Inch MIPI AMOLED Display Module 650 Cd/M2  1080x2160  Resolution Driving IC  RM69298 06 Inch MIPI AMOLED Display Module 650 Cd/M2  1080x2160  Resolution Driving IC  RM69298 16 Inch MIPI AMOLED Display Module 650 Cd/M2  1080x2160  Resolution Driving IC  RM69298 26 Inch MIPI AMOLED Display Module 650 Cd/M2  1080x2160  Resolution Driving IC  RM69298 3

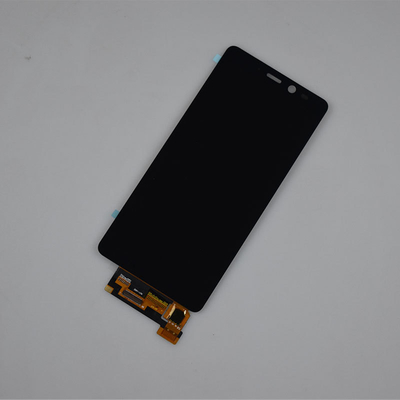

C: Drawing

6 Inch MIPI AMOLED Display Module 650 Cd/M2  1080x2160  Resolution Driving IC  RM69298 4



D: Oled Product Knowledge




OLED Advantages:



OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption





OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1.safety box &instrument

2.lock&smart home

3.transmitter&watch

4.watch&adio

5.collimator&navigator



H: AMOLED Display Characteristics



1.Self-E missive Pixels:

2.Contrast Ratio:

3.Color Accuracy and Vibrancy:

4.Viewing Angles:

5.Power Efficiency:

6.Thinness and Flexibility:

7.Response Time:



I:How does the power efficiency of AMOLED displays compare to other display technologies?



1.Power Consumption:

  • AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
  • LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.

2.Content Dependency:

  • AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
  • LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.



3.Brightness Control:

  • AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
  • LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness

4.Display Size

  • AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
  • Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
