1.41 inch MIPI AMOLED Display Module 300 Cd/M2 320*360 Resolution ,driving IC RM67162

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX1394AA61
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Display Technology AMOLED Display Module Name Oled Touch Screen Module
Size 1.41 " Resolution 320*360
Brightness 300cd/m2 Interface MIPI
Drive IC RM67162 Touch Panel CTP
High Light

1.41 inch amoled display module


MIPI amoled display module


300 Cd/M2 amoled display module

Leave a Message
Product Description

ESHX1394AA61  is 1.41 inch AMOLED oled  module, 320*360  Resolution,  MIPI Interface, brightness 300 Cd/M2 high resolution oled display,oled display IC is RM67162

A: Product Parameter

Part NO. ESHX1394AA61
Display Type 1.41 inch amoled display
Resolution 320*360
Panel Size(mm) 26.04×31.78
Active Area (mm) 23.84×26.82
View direction ALL
interface MIPI
LCD IC RM67162
brightness 300C/D
Touch panel with CTP

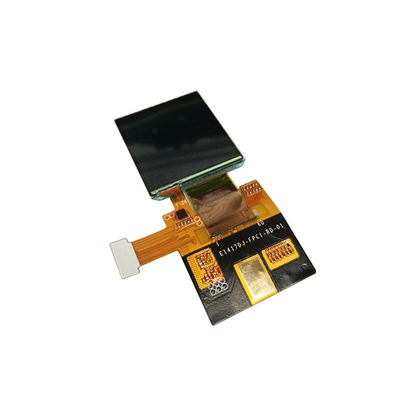

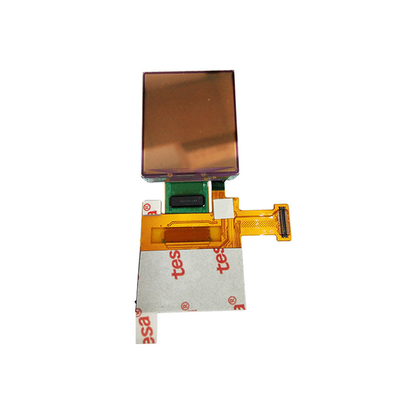

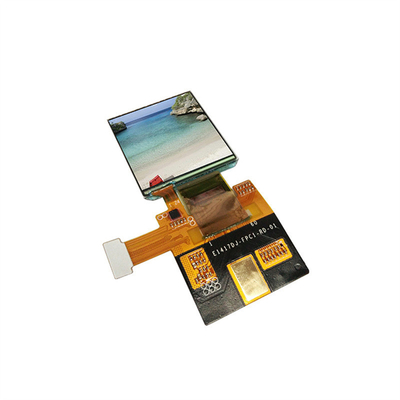

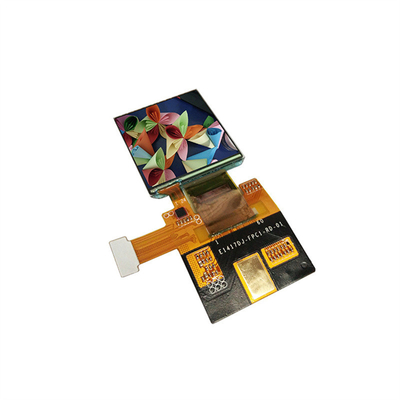

B:Product Picture

1.41 inch  MIPI AMOLED Display Module 300 Cd/M2  320*360 Resolution ,driving IC  RM67162 01.41 inch  MIPI AMOLED Display Module 300 Cd/M2  320*360 Resolution ,driving IC  RM67162 11.41 inch  MIPI AMOLED Display Module 300 Cd/M2  320*360 Resolution ,driving IC  RM67162 21.41 inch  MIPI AMOLED Display Module 300 Cd/M2  320*360 Resolution ,driving IC  RM67162 3

C: Drawing &Pin definition

1.41 inch  MIPI AMOLED Display Module 300 Cd/M2  320*360 Resolution ,driving IC  RM67162 4

D: Oled Product Knowledge

OLED Advantages:


OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption


OLED Disadvantages


AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT

E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
3.SGS of LCD module


  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%


F: Production Capacity


Annual Production
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
4.5 9 9 9 9 Unit:thousands of
LCM Producton
70 150 300 450 450 Unit:Thousand
Backlight Producton
100 200 300 500 500 Unit:Thousand
OLED Producton
10 20 30 40 50 Unit:Thousand


G: Product Application


1.safety box &instrument

2.lock&smart home





H: AMOLED Display Characteristics


1.Self-E missive Pixels:

2.Contrast Ratio:

3.Color Accuracy and Vibrancy:

4.Viewing Angles:

5.Power Efficiency:

6.Thinness and Flexibility:

7.Response Time:


I:How does the power efficiency of AMOLED displays compare to other display technologies?


1.Power Consumption:

  • AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
  • LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.

2.Content Dependency:

  • AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
  • LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.


3.Brightness Control:

  • AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
  • LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness

4.Display Size

  • AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
  • Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
