2 Inch Tft Lcd Display Module With PCBA, 176x220 Resolution, 4 Wire SPI Interface, Driving IC ILI9225

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHXMAR2001
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Tft Lcd Colour Monitor Name LCD Tft Display
Size 2" Resolution 176x220
Interface 4-wire SPI Interface Driving IC ILI9225
Highlight

2 Inch tft lcd display module

,

176x220 Resolution tft lcd display module

,

Driving IC ILI9225 tft lcd module

Leave a Message
Product Description

ESHXMAR2001   is 2 Inch Tft Lcd Display with PCB   ,176x220  Resolution, 4-wire SPI  Interface, brightness is 250 Cd/M2 and  view angle is free,driving IC ILI9225



A:Product Parameter

Part No: ESHXMAR2001
Panel Size 2inch TFT with PCBA
LCD Type TFT TRANSMISSIVE
View angle free
Module Size(mm) 38.30x62.48 (mm)
Active size(mm) 31.68x39.60
Number of Dots 176x220
Interface Pins 4-wire SPI interface
drive IC ILI9225
Touch panel without
working temp -10℃~60℃
storage temp -20℃~70℃


B:Product Picture

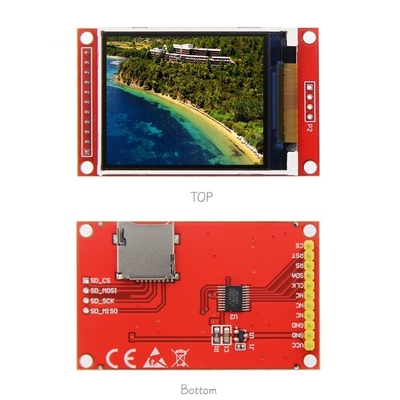

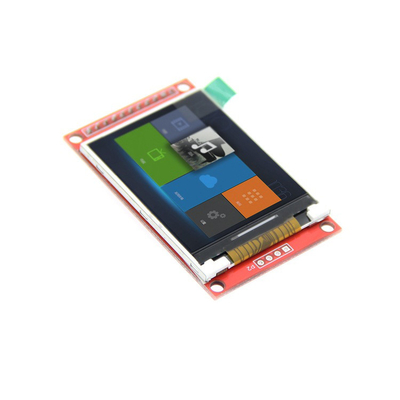

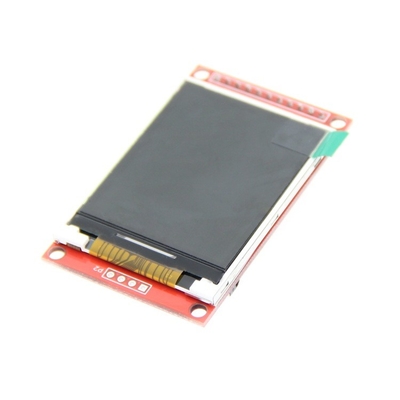

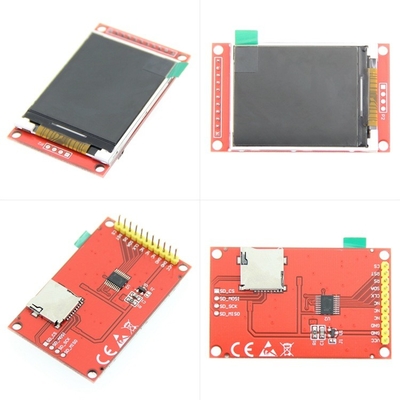

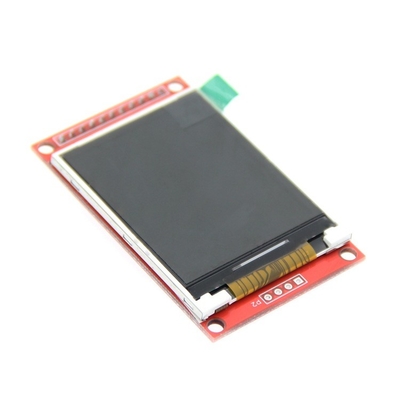

2 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 02 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 12 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 22 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 3


C:Drawing

................................................................

D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


2 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 4



TFT structure  as below

2 Inch Tft Lcd Display Module With PCBA,  176x220 Resolution,  4 Wire SPI Interface,  Driving IC ILI9225 5
