10.1 Inch Tft Lcd Display Module, 1280x800 Resolution , Hdmi Interface With Touch Panel

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXMPI1009
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Digital Signage Display Name Advertising Displays
Size 10.1" Resolution 1280x800
Brightness 250 Cd/m2 Interface Mini HDMI & VGA
Touch Panel IC GT911 Highlights High Resolution
High Light

10.1 inch tft lcd display module

,

1280x800 resolution tft lcd display module

,

hdmi 10.1 tft lcd module

Leave a Message
Product Description

ESHXMPI1009   is 10.1  Inch Tft Lcd Display ,1280x800  Resolution, Mini HDMI & VGA  Interface, brightness is 250 Cd/M2 and Touch panel IC  GT911, view angle is free



A:Product Parameter

Part No: ESHXMPI1009
Panel Type IPS
Panel Size 10.1 inch
Resolution 1280 x 800(RGB) (pixels)
Active Area 216.55(W) x 135.36(H) (mm)
Number of Colors(Max) 16.7M
Pixel Pitch 0.1692 x 0.1692 (mm)
View Angle ALL 0’ CLOCK
Luminance(TYP) 250 cd/m2
Contrast Ratio(TYP) 1000
Backlight Type White LED
Backlight Voltage(TYP) 9.0V
Backlight Current(TYP) 180mA
Operation Temperature -10~50(℃)
Storage Temperature -20~60(℃)
Backlight Adjustment Leave switch adjustment
Volume Adjustment Leave switch adjustment
Touch Screen Type Capacitive Touch Screen
Touch IC GT911
Touch Screen Size 241.30(W) x 160.00(H) (mm)
Touch Screen Visual Area 217.34(W) x 136.00(H) (mm)
Power Voltage 5V
Speaker Power 8Ω 2W x 2
Total Power 6.15W (100% brightness, 0% volume),9W(100% brightness, 100% volume)
Video Input Interface Mini HDMI & VGA
Audio Output Interface 3.5mm Audio Interface and Stereo speakers
Power Interface Type-C
Touch Output Interface Type-C

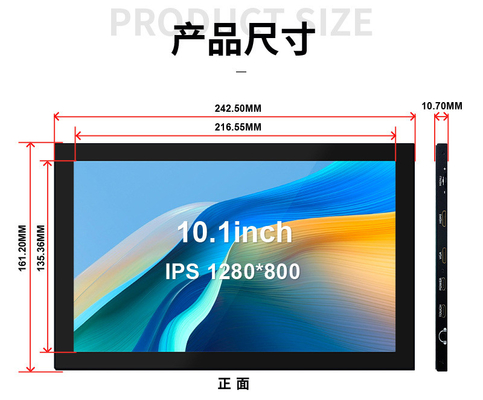

Outline Size 242.50(W) x 161.20(H) x 10.70(T)(mm)
Package size 295(W) x 195(H) x 70(T) (mm)
Weight(including package) 938(g)


B:Product Picture

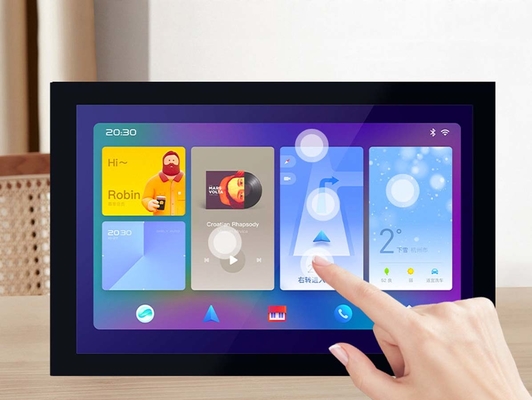

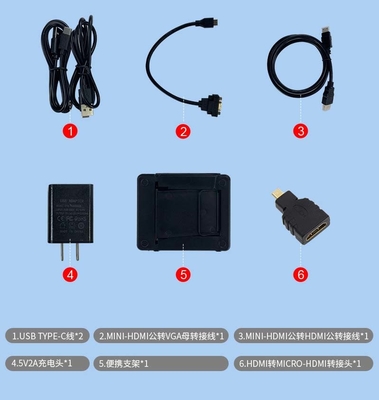

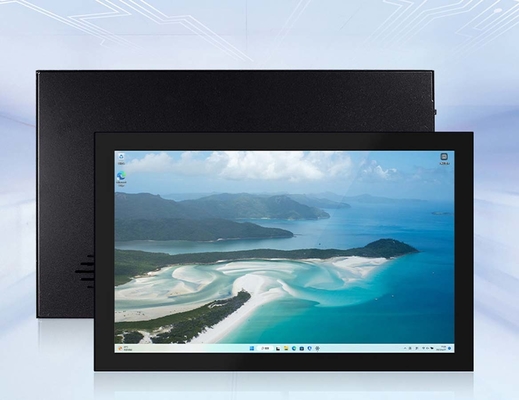

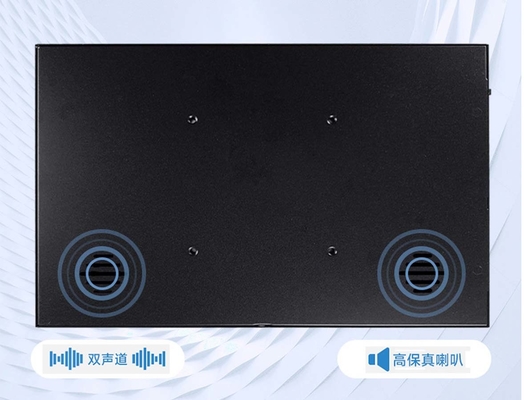

10.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 010.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 110.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 210.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 310.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 4



C: Drawing

 ----------------------------------------



D:TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below


10.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 5



TFT structure  as below

10.1 Inch Tft Lcd Display Module,  1280x800 Resolution , Hdmi Interface With Touch Panel 6



E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:
